Unidad base Reolink D340B con Hub 1 Indoor Blanco 4MP

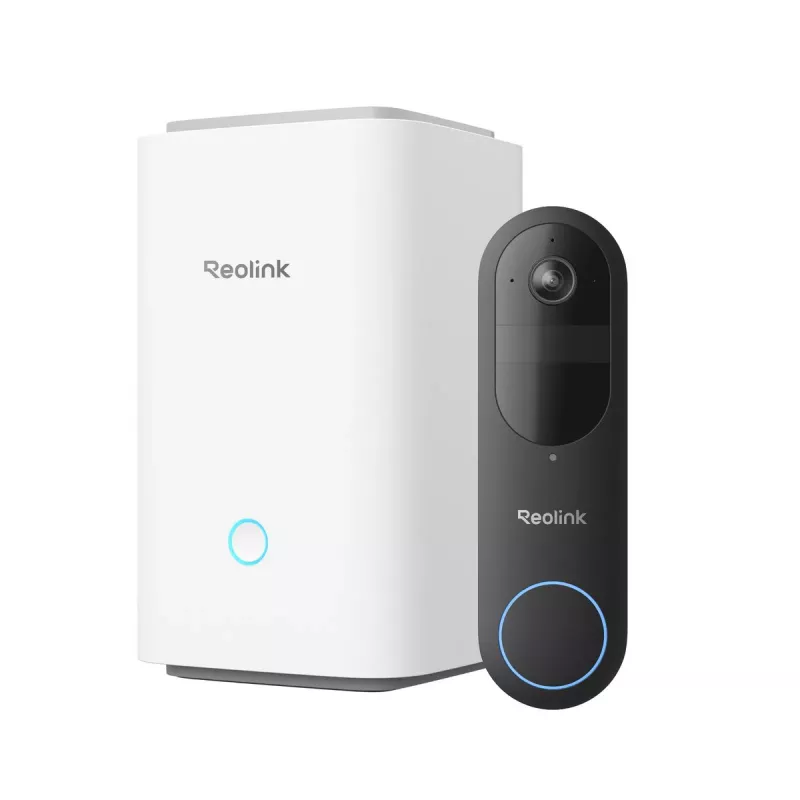

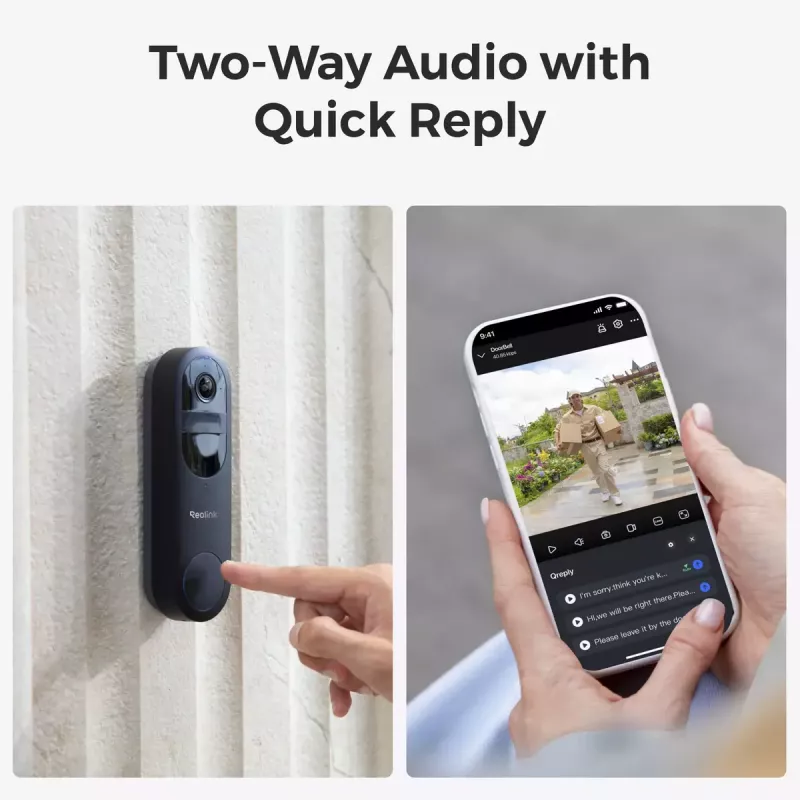

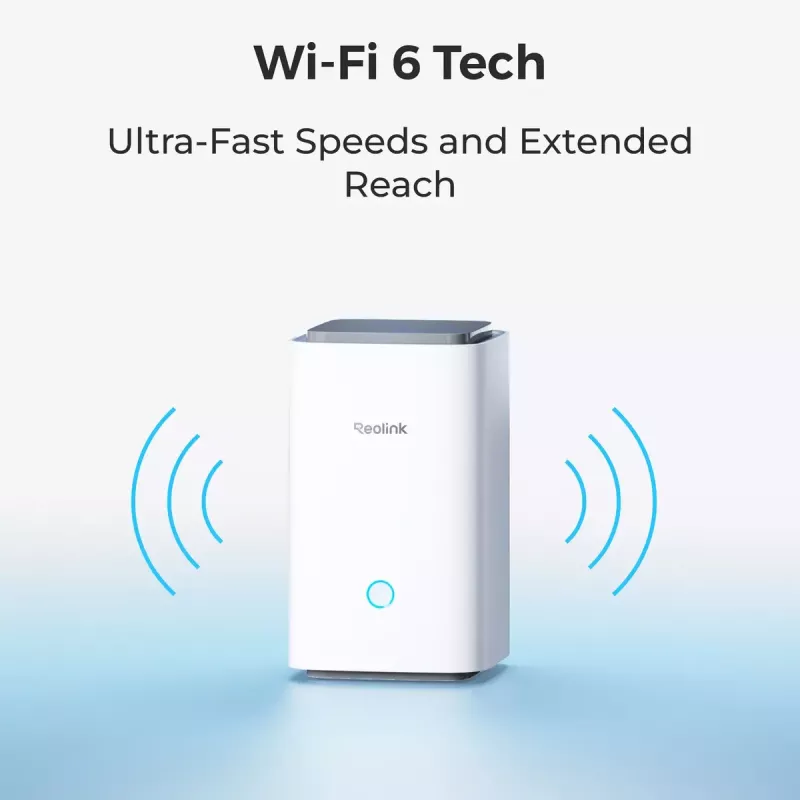

Reolink D340B with Hub 1 is a wireless battery doorbell camera system designed for front-door monitoring. The 1:1 aspect ratio delivers a head-to-toe 150°x150°x180° view in 4MP (2K) HD, while dual-band 2.4/5 GHz Wi‑Fi keeps the device connected. The system supports smart detection for people, vehicles and packages, instant push notifications and video calls when the doorbell is pressed. The included hub acts as a storage, alarm and management center for a DIY camera setup and comes with a 128 GB microSD card included.

Advantages

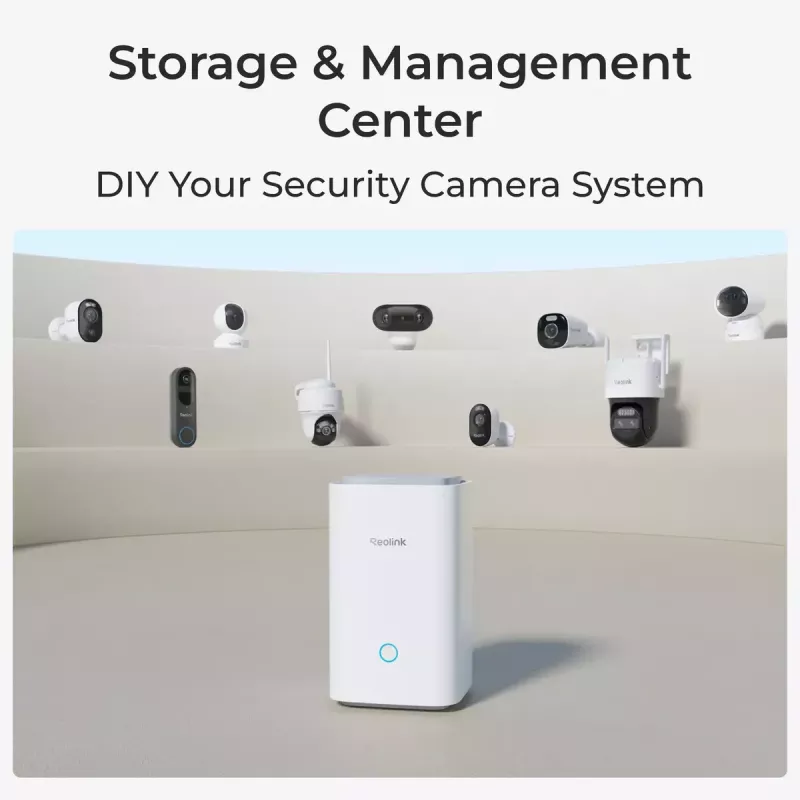

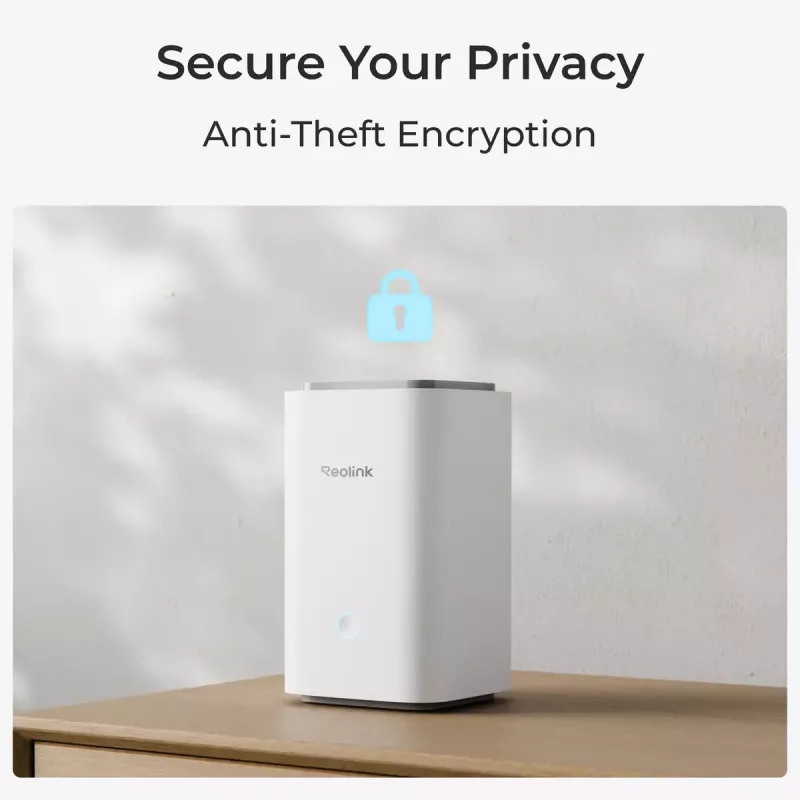

The hub supports up to 8 Reolink cameras (excluding 4G models), enabling a scalable, self-managed security system. Local encrypted storage is available without ongoing subscription fees, with two microSD slots that expand storage up to 2×512 GB. Power options include a rechargeable battery or hardwiring to existing doorbell wiring (8–24 V, 5 VA–40 VA) and the hardwire option supports mechanical chimes. Smart detection reduces false alerts and sends instant notifications; visitor presses trigger push alerts and optional live video call. The hub can also sound an alarm with selectable ringtones and supports one admin plus 11 user accounts for shared access.

Key specifications

• Camera resolution: 4 MP (2K) with 1:1 aspect ratio

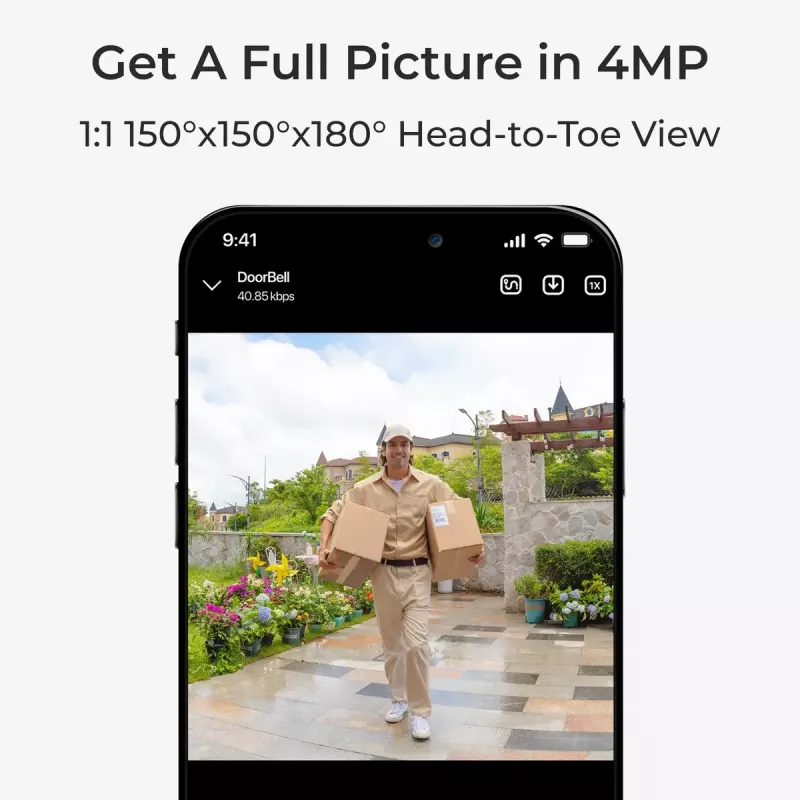

• Field of view: 150° × 150° × 180° (head-to-toe view)
• Wireless: 2.4 GHz & 5 GHz dual-band Wi‑Fi

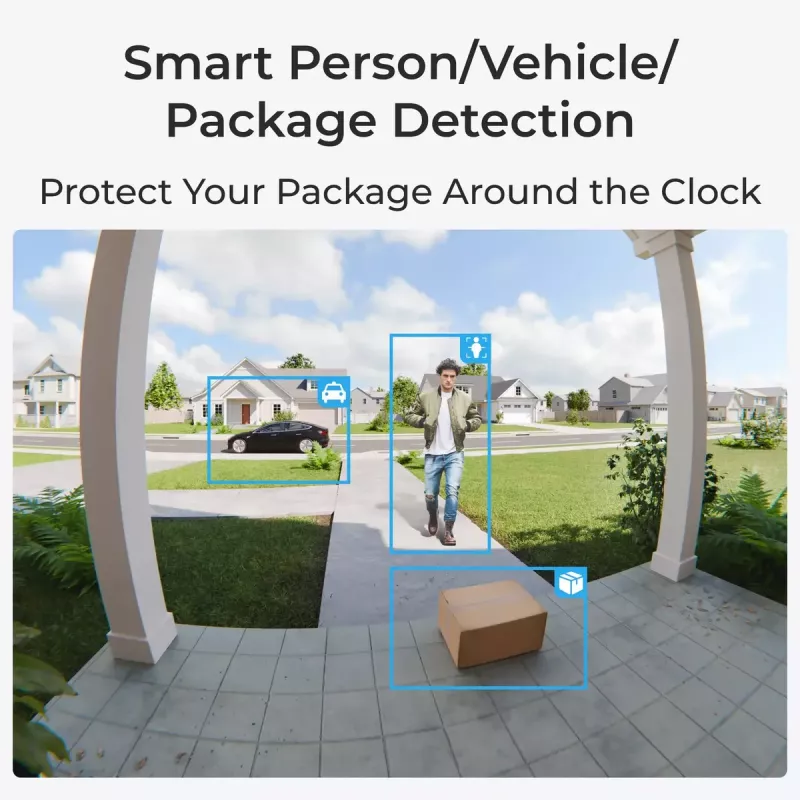

• Smart detection: people, vehicles, packages
• Storage: 1×128 GB microSD included; two microSD slots, up to 2×512 GB
• Hub supports: up to 8 Reolink cameras (except 4G cameras)
• Power: rechargeable battery or hardwire (8–24 V, 5 VA–40 VA); hardwire supports mechanical chimes

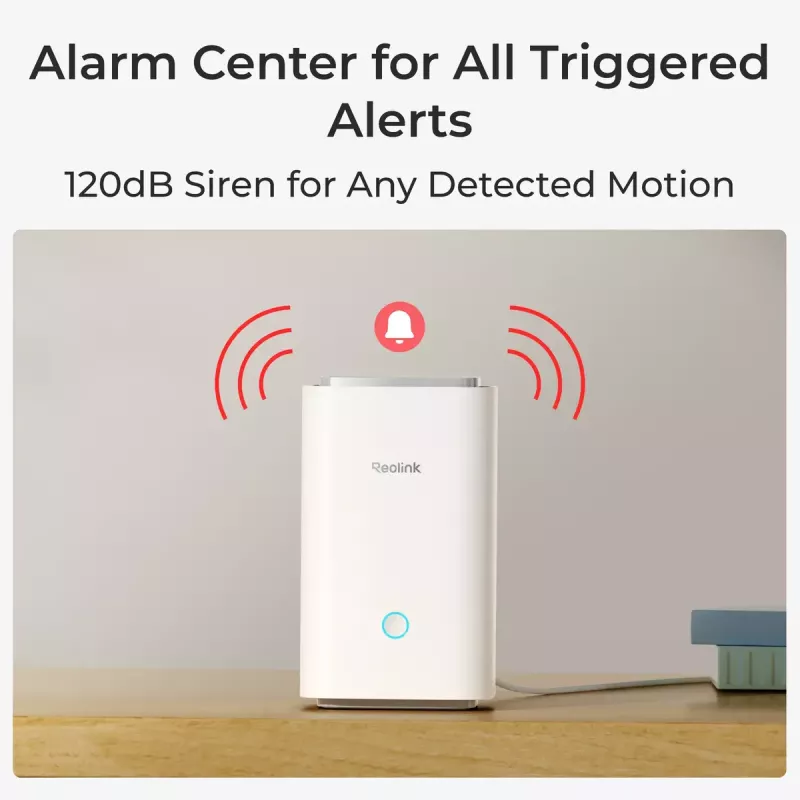

• Alarm: hub siren with 11 selectable ringtones + 5 custom sounds
• Accounts: 1 admin + 11 user accounts

How to use

Install the doorbell camera at your front door following the manufacturer’s mounting instructions and connect the Hub 1 to your home network via 2.4/5 GHz Wi‑Fi. Insert the included 128 GB microSD card into the hub or add additional cards to expand local storage. Choose between rechargeable battery power or hardwiring to existing doorbell wiring (observe the specified voltage and VA ratings). Configure smart detection settings, notification preferences and account sharing in the Reolink app. If desired, enable the hub siren and set a ringtone for alarms.

Recommendations

For stable remote access, place the hub within good Wi‑Fi coverage and use the 5 GHz band for faster local streaming and 2.4 GHz for broader coverage. Regularly check and format microSD cards in the app, keep firmware updated, and configure detection sensitivity to reduce false alarms.
