Unidad de distribución de corriente Bachmann Zero U-Space IT Basic — 12 salidas C19, cable de 3 m, 400 V, 32 A, 1075×47×44 mm

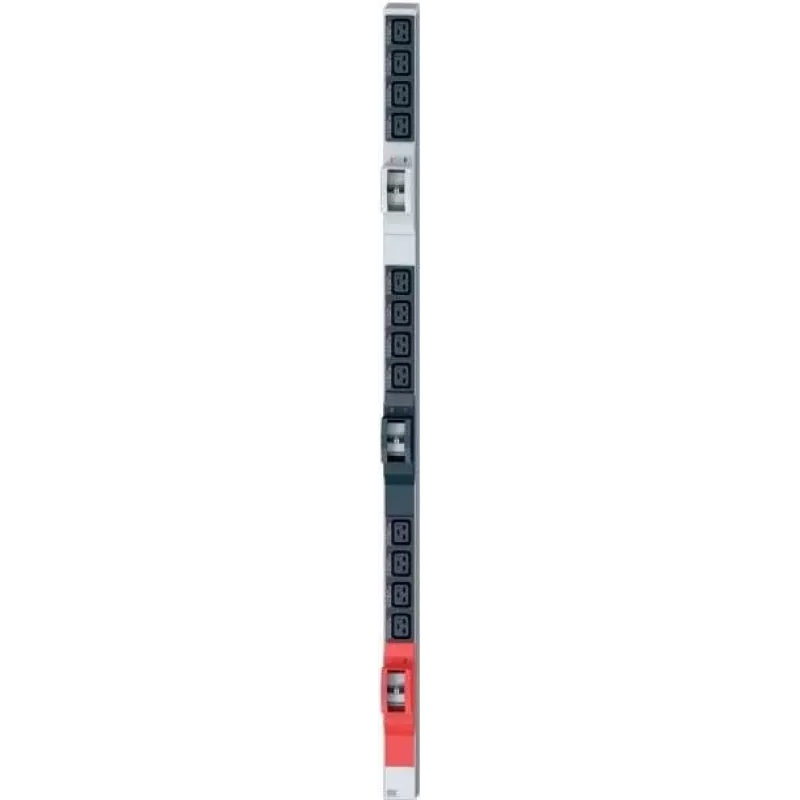

Rack-mounted power distribution unit Bachmann Zero U-Space IT Basic designed for structured power delivery in data centers and server cabinets. The unit features twelve AC C19 outlets and a 3 m mains cable, supporting three-phase 400 V input at 50 Hz and up to 32 A per phase. Its slim housing fits a width of 1075 mm with a depth of 47 mm and a height of 44 mm, enabling integration into racks where space efficiency and reliable power distribution are required.

Advantages

The Bachmann Zero U-Space IT Basic provides consolidated power distribution for multiple high-power IT devices while occupying minimal rack space. The twelve C19 outlets accommodate servers, switches and other rack equipment that require higher current connectors, and the 3 m cable simplifies connection to a nearby power source. The unit's form factor and standardized connectors allow straightforward installation and predictable electrical performance in three-phase 400 V environments.

Suitable for

• Server racks and data center cabinets
• Network and storage equipment with C19 inlet
• Edge computing and telecom racks
• Small and medium enterprise IT rooms

Key specifications

• Number of outlets: 12 C19 AC couplers
• Input voltage: 400 V (three-phase), 50 Hz
• Nominal current per phase: up to 32 A
• Cable length: 3 m
• Mounting form factor: rack-mounted U-space slim profile
• Dimensions (W×D×H): 1075 × 47 × 44 mm
• Enclosure: low-profile metal housing for rack integration

How to use

Install the Bachmann Zero U-Space IT Basic into the designated rack position ensuring the unit's width and depth match the available U-space. Secure the unit according to rack mounting guidelines and route the 3 m mains cable to the appropriate power distribution source. Connect IT devices to the C19 outlets, observing the maximum per-phase current rating to avoid overloading. Verify that the rack earth and grounding practices meet local electrical regulations before putting equipment into service.

Recommendations

Distribute high-current loads evenly across phases and monitor cumulative current draw to remain within the 32 A per-phase limit. Use the unit in controlled environments with adequate ventilation and follow site-specific grounding and cable management standards to maintain reliable power delivery to critical IT equipment.
