Unidad de distribución de energía Güde 8311-2 7 salidas AC 1U negro

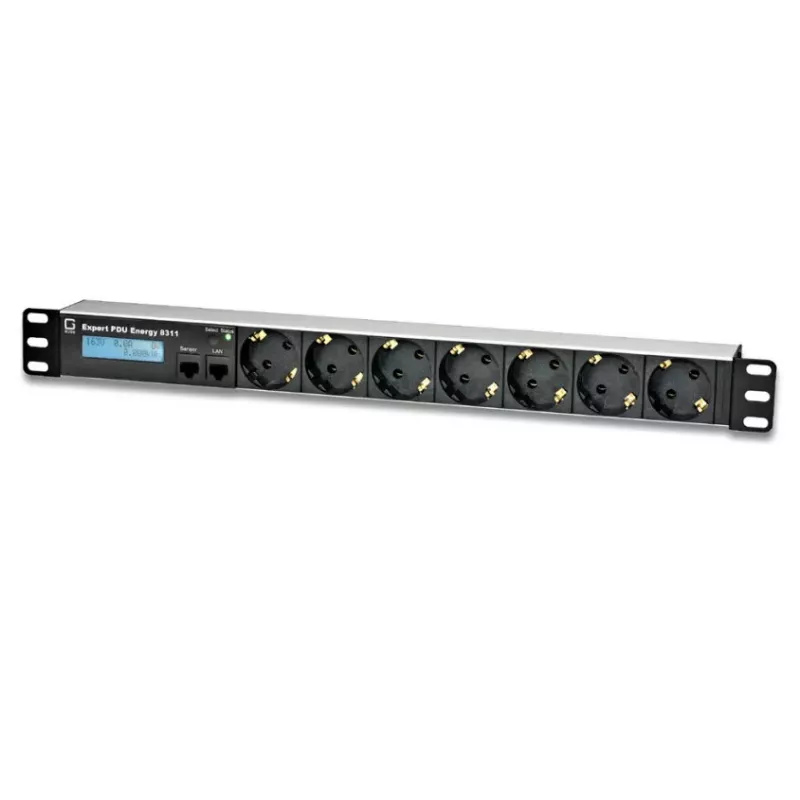

The Güde 8311-2 is a metered 1U power distribution unit (PDU) designed for rack-mounted equipment. It provides seven Type F AC outlets and supports network-enabled metering and management functions. The unit accepts a nominal input voltage of 230 V and a maximum current of 16 A. A network-upgradeable firmware option ensures the device can receive updates for compatibility and security. The compact 1U form factor and standard rack width make it suitable for typical server and networking cabinets.

Advantages

The PDU offers integrated metering to monitor power consumption and a compact 1U design that fits standard racks. Network connectivity enables remote monitoring and firmware updates. Built with seven Type F outlets and a 16 A rating, it supports a range of rack devices while keeping installation straightforward due to its standard dimensions and lightweight construction.

Suitable for

• Small server racks and network cabinets
• Office IT equipment such as switches, routers and small servers
• Workstations or lab racks with consolidated power distribution needs

Key specifications

• Nominal input voltage: 230 V
• Maximum current: 16 A
• AC outlets: 7 Type F sockets
• Form factor: 1U rack-mount
• Color: Black
• Weight: 1.5 kg

How to use

Install the unit in a standard 19-inch rack occupying one U of space. Connect the PDU to a suitable 230 V mains supply with a protected circuit capable of handling up to 16 A. Plug equipment into the Type F outlets, taking total connected load into account. Use the network interface to access metering and management functions and apply firmware updates when available to maintain security and compatibility.

Recommendations

Ensure the total combined load of connected devices does not exceed the 16 A maximum. Place the PDU in a ventilated rack environment and secure it according to rack-mount instructions. For remote monitoring and firmware updates, connect the PDU to a managed network and follow manufacturer guidance for network configuration and security.
