Unidad de ventilador Digitus DN-19 FAN-4-HO

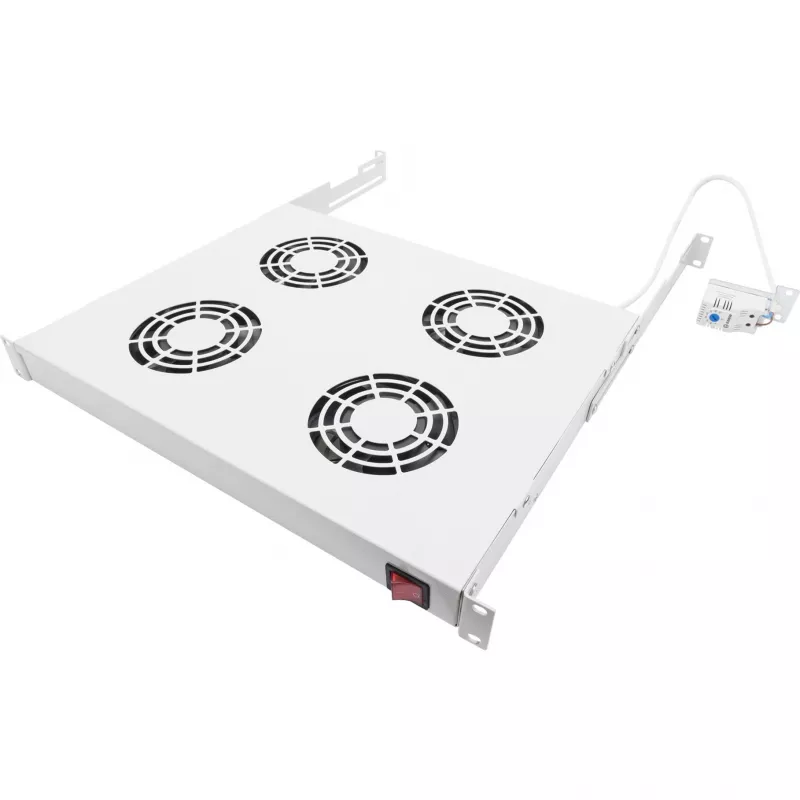

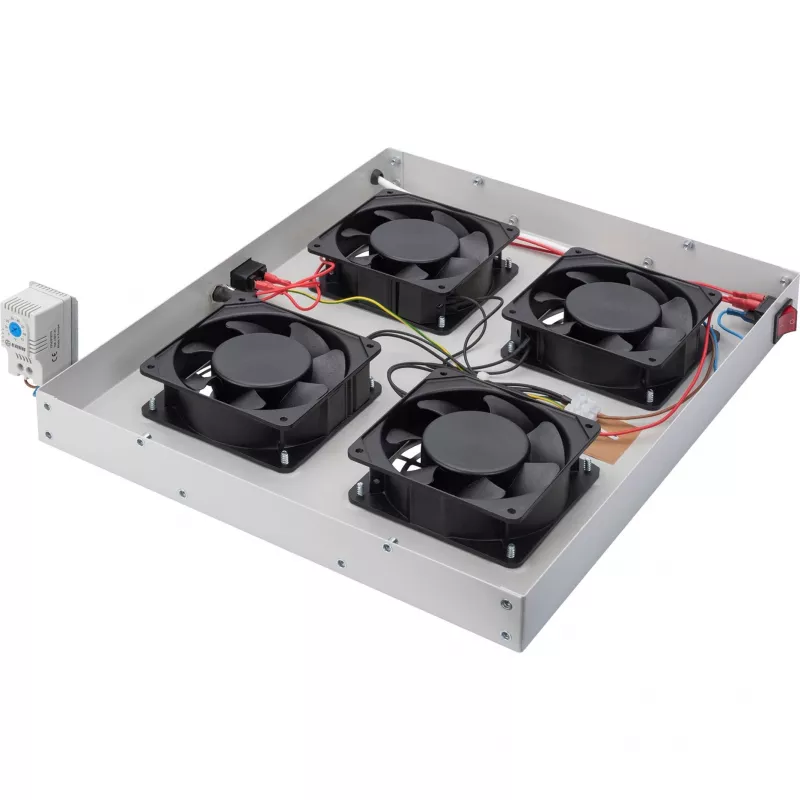

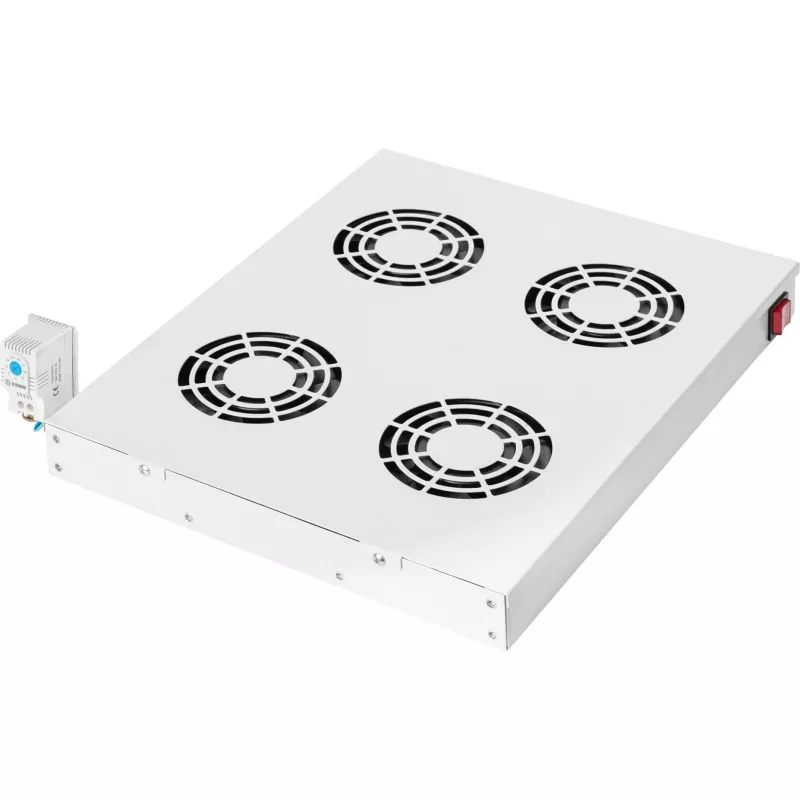

The Digitus Ventilation Unit DN-19 FAN-4-HO is designed for installation into 483 mm (19") network and server cabinets. The compact unit (400 x 45 x 438 mm, 5 kg) is available in grey (RAL 7035) and black (RAL 9005) and is equipped with four fans delivering an airflow of 552 m³/h to help maintain optimal temperatures in rack-mounted equipment.

Advantages

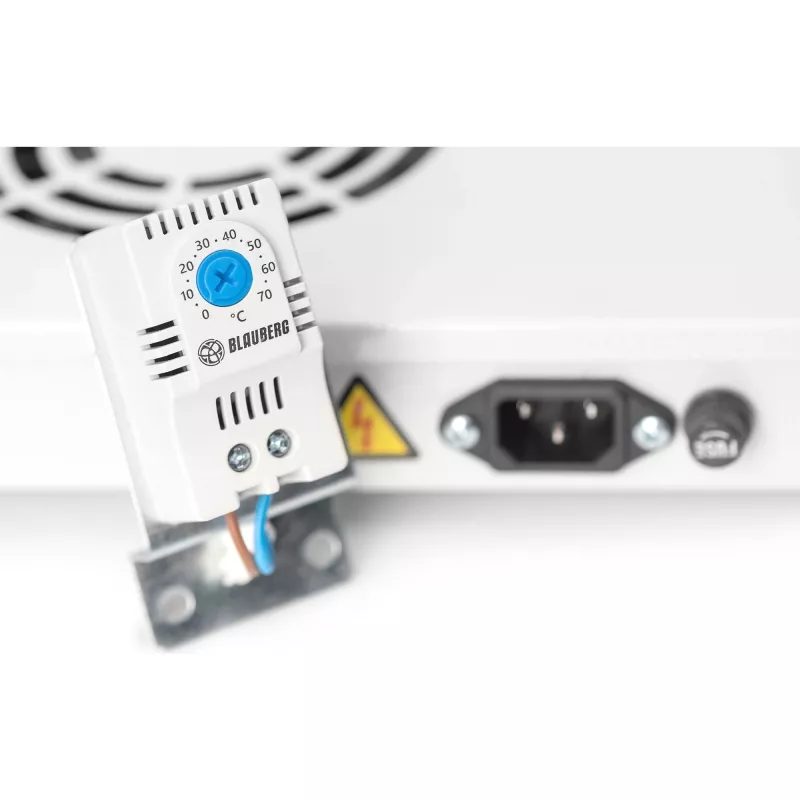

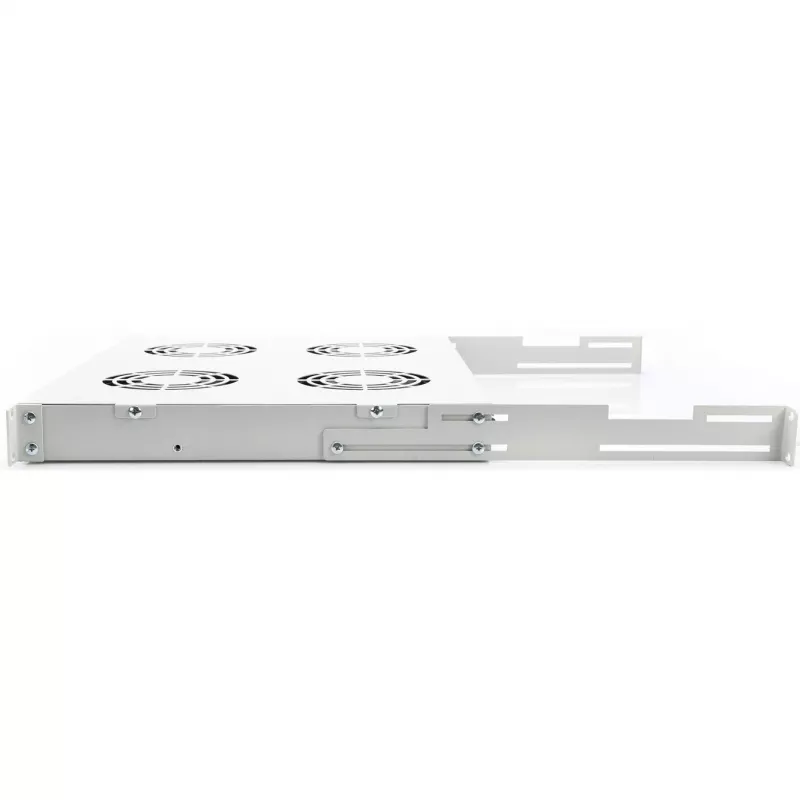

This rack-mounted ventilation unit includes two sets of mounting brackets for flexible installation either into any height unit space or directly into the roof of compatible varioFLEX series 483 mm (19") cabinets. An integrated switch and adjustable thermostat allow straightforward control and temperature-based regulation. The compact dimensions and standard colours make it easy to integrate into most server and network environments.

Suitable for

• Cooling server racks and network cabinets
• Maintaining temperature for rack-mounted IT equipment
• Retrofit ventilation for 483 mm (19") cabinets, including varioFLEX roofs

Key specifications

• Model: Digitus DN-19 FAN-4-HO
• Mounting: 483 mm (19") unit
• Number of fans: 4
• Airflow: 552 m³/h
• Dimensions (W x H x D): 400 x 45 x 438 mm
• Weight: 5 kg
• Colours: Grey (RAL 7035) / Black (RAL 9005)

How to use

Choose the appropriate bracket set for your cabinet: the standard brackets for installation into any height unit space or the roof brackets for mounting into the varioFLEX series cabinet roof. Secure the ventilation unit to the cabinet using the supplied brackets and fixings. Connect the unit to mains power and set the switch to on. Adjust the thermostat to the required activation temperature to enable automatic fan control based on cabinet temperature.

Recommendations

Install the unit in a location that allows unobstructed airflow; ensure regular cleaning of fan intakes and periodic checks of the thermostat and mounting hardware to maintain effective cooling performance.
