Unidad SSD Corsair 2 TB M.2 PCI Express 4.0 MP600 PRO XT

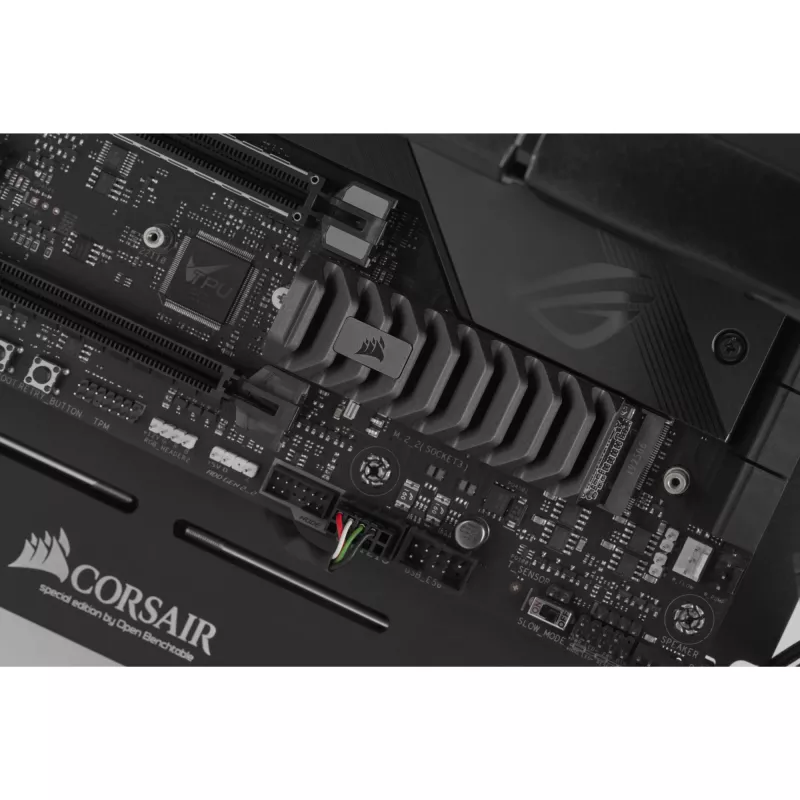

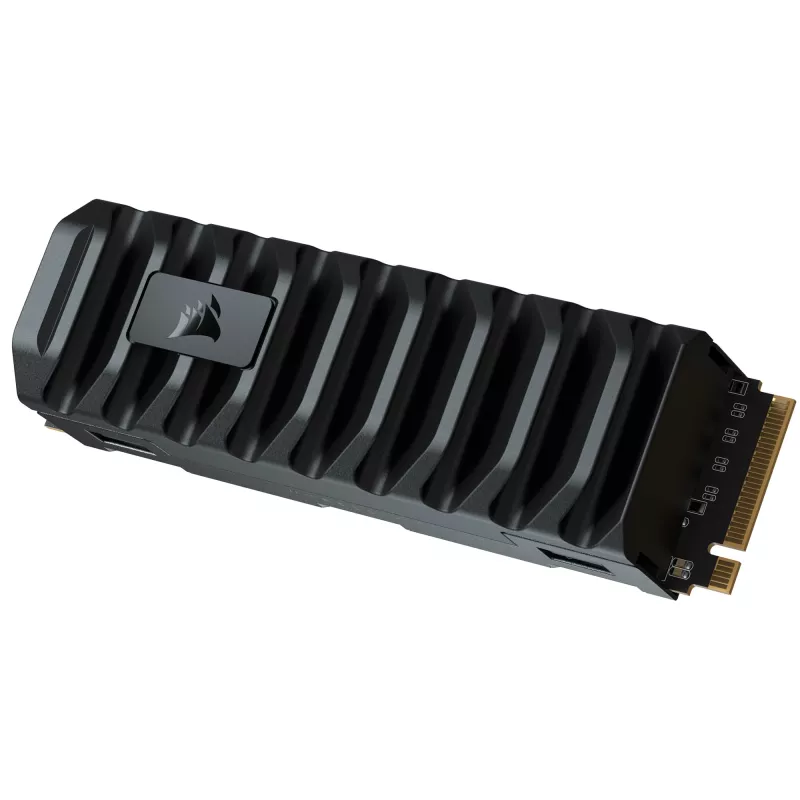

MP600 PRO XT is an M.2 2280 NVMe SSD using a PCIe Gen4 x4 controller and NVMe 1.4 support to provide high read and write throughput and low latency. The drive uses high-density 3D TLC NAND and includes a built-in aluminum heatspreader to help manage temperature and sustain performance over long workloads. The M.2 2280 form factor installs directly on compatible motherboards without cables.

Advantages

The Gen4 PCIe x4 interface delivers significantly higher bandwidth compared with standard M.2 SSDs, improving transfer speeds and responsiveness. The integrated aluminum heatspreader reduces thermal throttling under sustained load. High-density 3D TLC NAND balances performance and endurance, rated for up to 3000 TB written to support long-term use.

Key specifications

• Interface: PCIe Gen4 x4, NVMe 1.4
• Form factor: M.2 2280
• NAND type: High-density 3D TLC
• Endurance: up to 3000 TB written
• Cooling: Built-in aluminum heatspreader

How to use

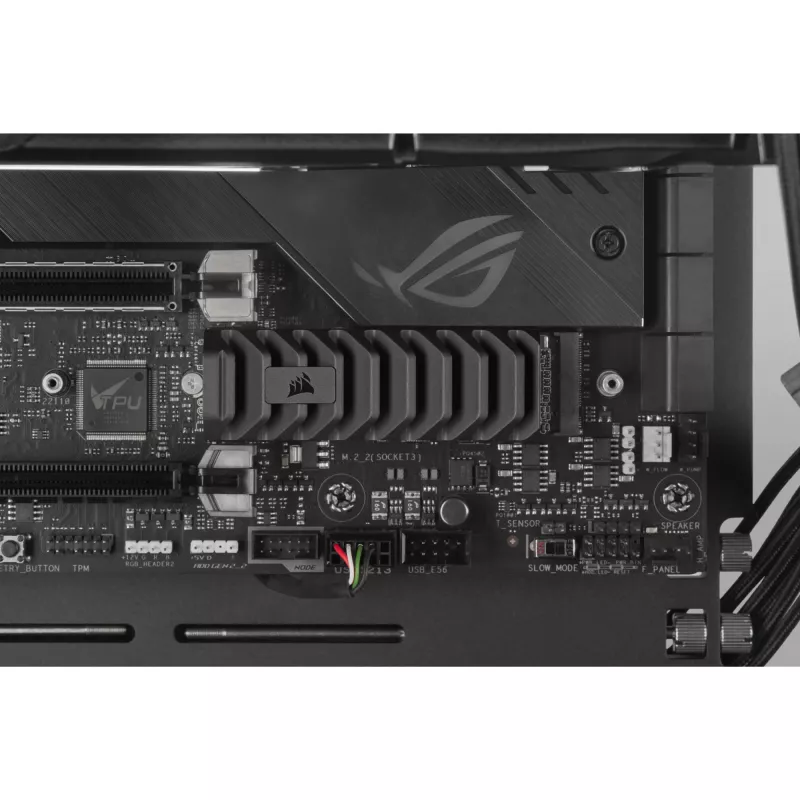

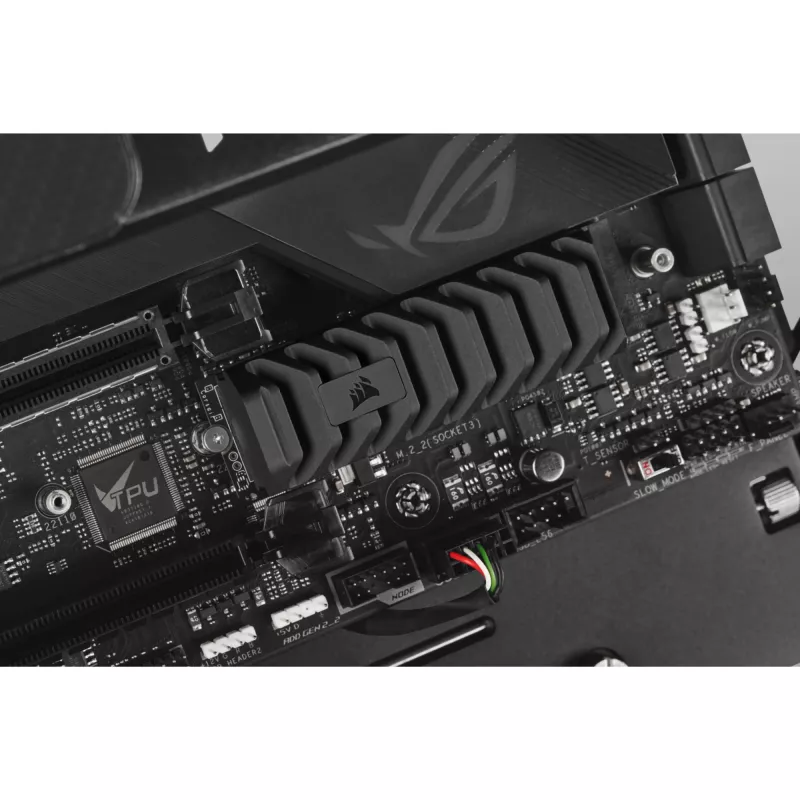

Install the M.2 2280 module into a compatible motherboard M.2 slot that supports PCIe Gen4 x4. Secure the drive with the mounting screw provided by the motherboard, enable the M.2 slot in BIOS if necessary, and install the operating system or storage drivers as required. Monitor temperatures during initial use to confirm the heatspreader is effective under your workload.

Recommendations

Use the MP600 PRO XT in systems with PCIe Gen4-capable motherboards to achieve optimal performance. Ensure adequate case airflow to complement the built-in heatspreader, and back up important data regularly to protect against unexpected failures.
