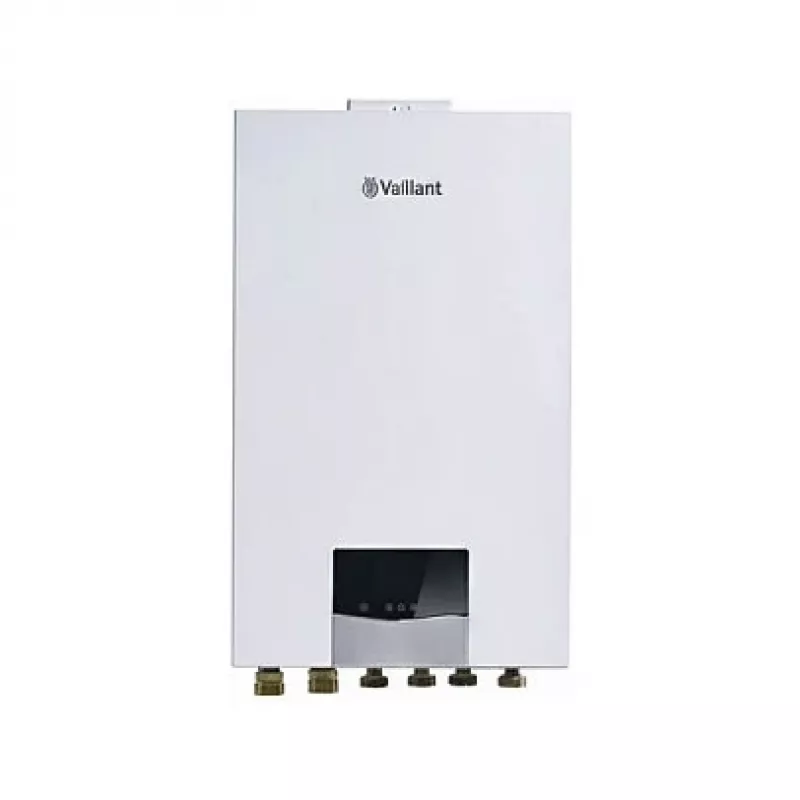

Vaillant VWZ MEH 97/6 separador hidráulico para bomba de calor aire-agua aroTHERM plus

The Vaillant VWZ MEH 97/6 Hydraulic Station is a high-quality system integration component designed specifically for Vaillant aroTHERM plus air-to-water heat pumps. This wall-mounted hydraulic station ensures efficient hydraulic separation and seamless integration of the heat pump into your heating system, providing reliable performance and optimal energy efficiency.

Advantages

Integrated high-efficiency circulation pump and 6-liter expansion vessel reduce installation complexity and save space. The station includes a safety valve, flow sensor, pressure sensor, and dirt filter for comprehensive system protection and monitoring. With a maximum operating pressure of 3 bar and flow temperature up to 75 °C, it is suitable for a wide range of heating applications.

Suitable for

• Vaillant aroTHERM plus air-to-water heat pump systems
• Residential and commercial heating installations requiring hydraulic separation
• New builds and retrofit projects

Key specifications

• Product Type: Hydraulic Station
• Application: Air-to-water heat pump systems
• Compatibility: Vaillant aroTHERM plus heat pumps
• Installation Type: Wall-mounted
• Integrated Components: High-efficiency heating circuit pump, 6L heating expansion vessel, safety valve, flow sensor, pressure sensor, dirt filter
• Max. Operating Pressure (Heating): 3 bar
• Max. Flow Temperature: 75 °C
• Heating Flow/Return Connections: G 1"
• Heat Pump Connections: G 1"
• Electrical Supply: 230 V / 50 Hz
• Protection Class: IPX0
• Expansion Vessel Volume: 6 liters
• Pump Type: High-efficiency circulation pump
• Function: System integration and hydraulic separation
• Material: Steel, plastic
• Color: White/Grey

Recommendations

For optimal system performance, ensure compatibility with your Vaillant aroTHERM plus heat pump model. Professional installation by a qualified technician is recommended.
