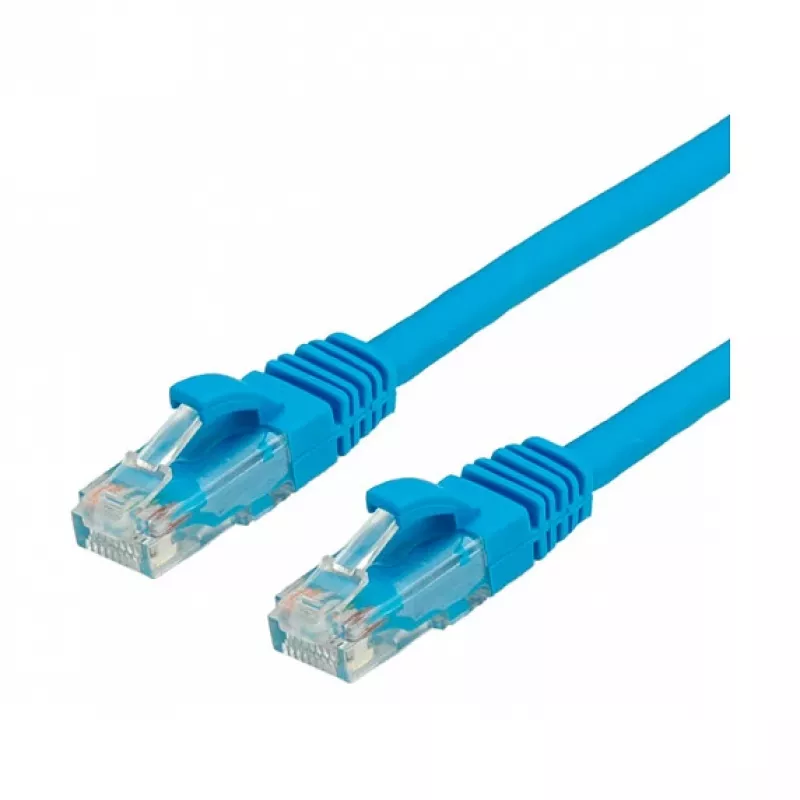

VALUE Cable de conexión Cat.6 Class E UTP LSOH azul 10m

The VALUE Patch Cable Cat.6 Class E UTP LSOH Blue 10m is a high-performance network cable designed for reliable data transmission in local area networks (LAN). With its Category 6 certification, it supports bandwidths up to 250 MHz and data transfer rates of up to 10 Gbps, making it ideal for demanding applications such as data centers and office networks. The cable features an unshielded twisted pair (UTP) design with a low smoke zero halogen (LSOH) jacket, ensuring safety in enclosed spaces by reducing toxic fumes in case of fire. Its blue color and 10-meter length provide flexibility for various setups.

Advantages

This patch cable offers excellent performance and safety. The LSOH jacket minimizes smoke and halogen emissions, making it suitable for use in public buildings and areas with strict fire safety regulations. The stranded copper conductors (AWG 24/7) provide flexibility and durability, while the snagless boot design protects the RJ45 connectors during installation and removal. The cable is fully compliant with TIA/EIA-568B wiring standard and is certified RoHS and CE, ensuring quality and environmental responsibility.

Suitable for

• Local Area Networks (LAN) in offices and homes
• Data centers requiring high-speed connections
• Connecting computers, switches, routers, and other network devices
• Applications where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: Category 6 (Cat.6)
• Shielding Type: UTP (Unshielded Twisted Pair)
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Cable Color: Blue
• Cable Length: 10 m
• Connector Type (End 1): RJ45 Male
• Connector Type (End 2): RJ45 Male
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 24/7 (Stranded)
• Wiring Standard: TIA/EIA-568B
• Performance Class: Class E
• Maximum Bandwidth: 250 MHz
• Maximum Data Transfer Rate: 10 Gigabit Ethernet (10GBASE-T)
• Cable Construction: Stranded
• Boot Type: Snagless
• Number of Pairs: 4
• Certifications: RoHS, CE
• Application: Local Area Network (LAN), Data Centers, Office
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, ensure that all network components (switches, routers, network cards) support Category 6 standards. This cable is backward compatible with Cat5e and Cat5 networks. Store in a cool, dry place away from direct sunlight.
