Vaso de llave Gedore 6237680

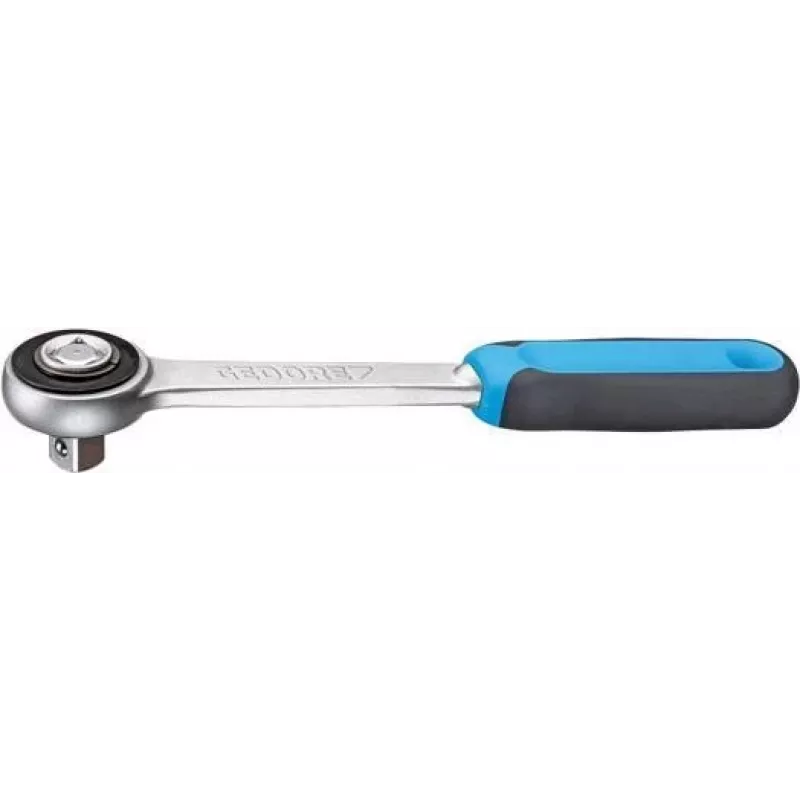

The Gedore 6237680 socket wrench is a compact, hand-operated ratchet designed for industrial and automotive use. It conforms to DIN 3122 and ISO 3315 standards and features a square coupler compatible with hand sockets and accessories with square drives according to DIN 3120 - C 10 and ISO 1174. Made from Gedore vanadium steel (31CrV3) with chrome plating, the tool weighs 223 g and has a return angle of 10 degrees for precise working in confined spaces.

Advantages

The ratchet has a medium-fine tooth mechanism and a robust construction for long service life. A non-slip two-component handle with hanging hole improves grip and storage convenience. The square drive includes a ball locking device to secure sockets during use. Chrome plating protects the tool against corrosion and simplifies cleaning.

Suitable for

Key specifications

How to use

Select a compatible socket and push it onto the square coupler until the ball locking device engages. Grip the non-slip handle and apply torque in the required direction; the 10° return angle allows incremental movement in confined spaces. To remove the socket, depress the ball locking mechanism and pull the socket off the drive.

Recommendations

Use with sockets and accessories that match the specified square drive standards (DIN 3120 / ISO 1174). Keep the ratchet clean and lightly lubricated on the mechanism to maintain smooth operation; store it in a dry place to protect the chrome finish.
