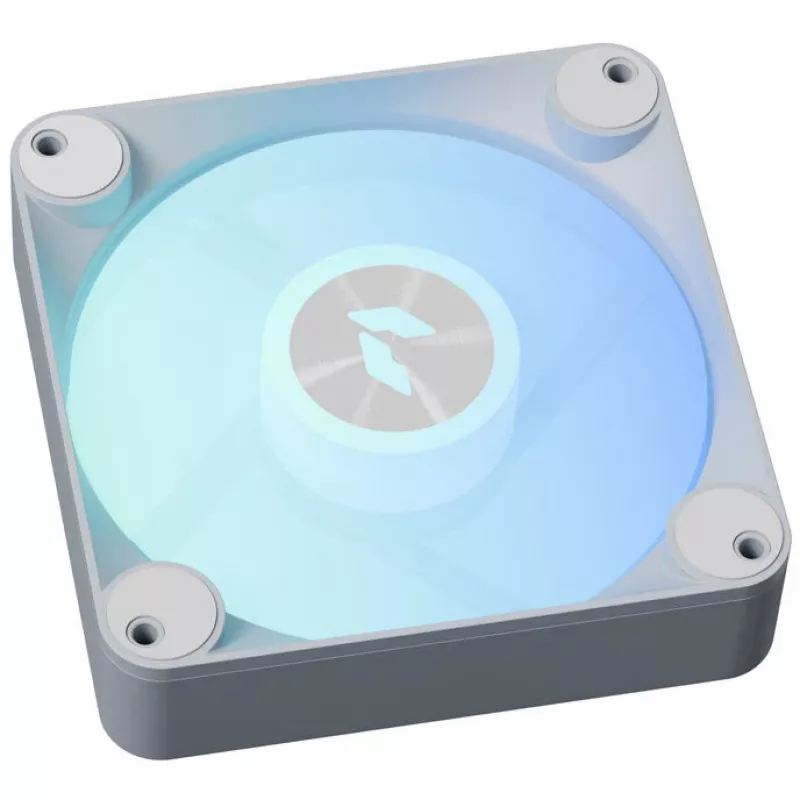

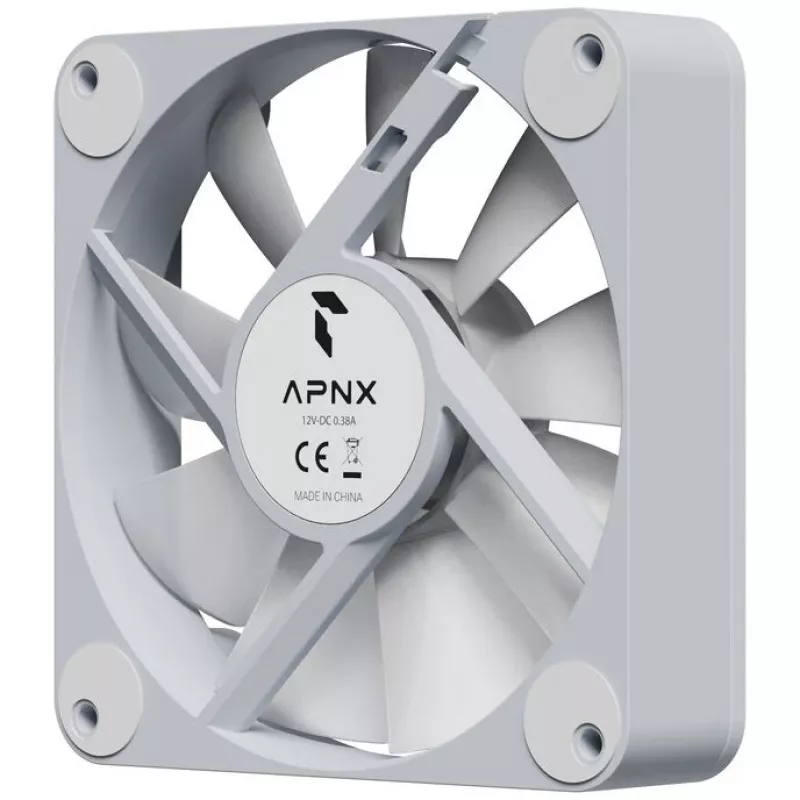

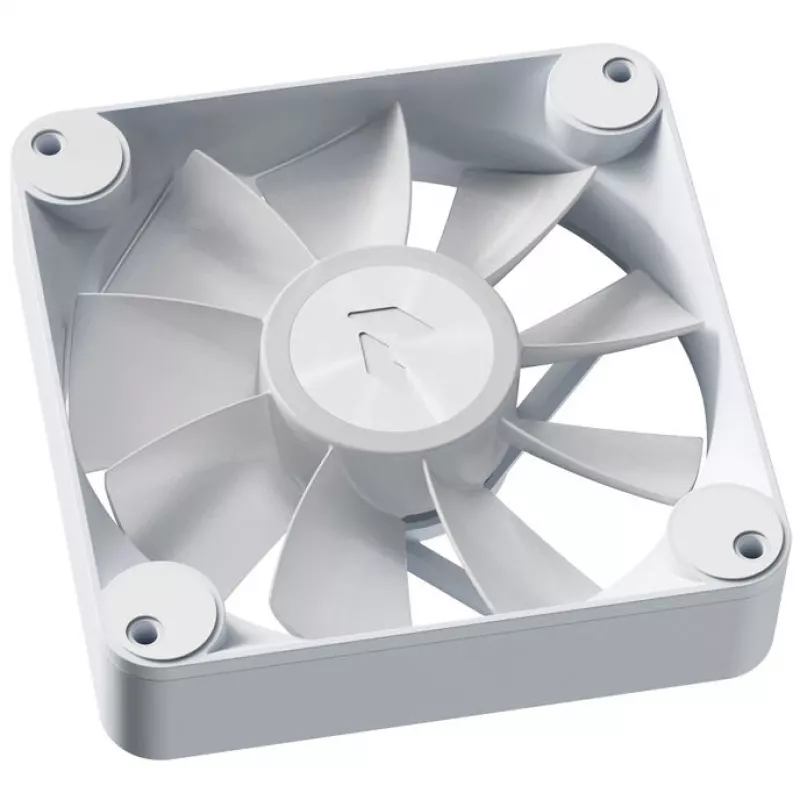

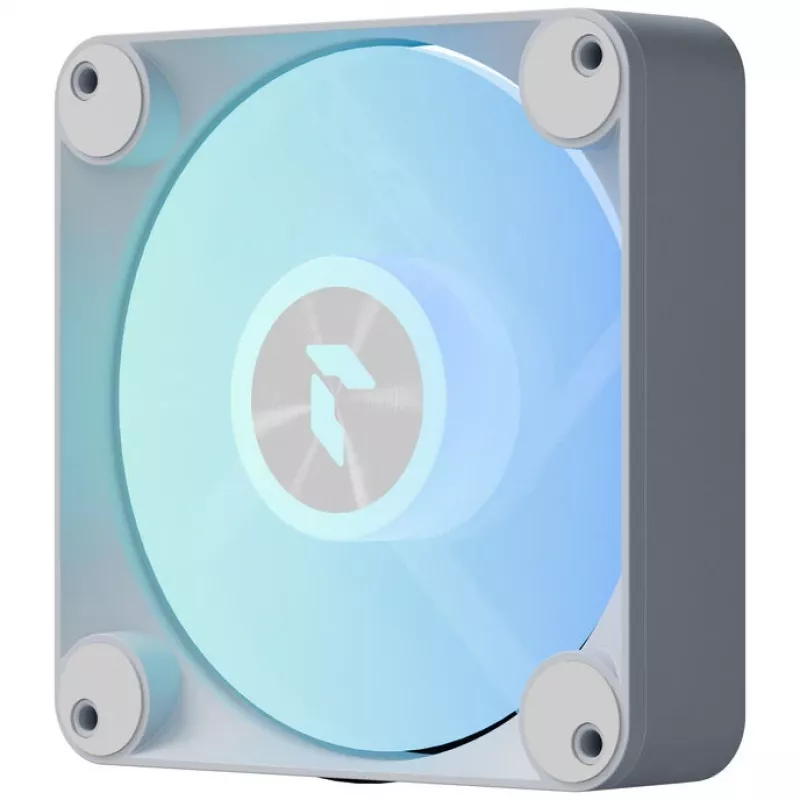

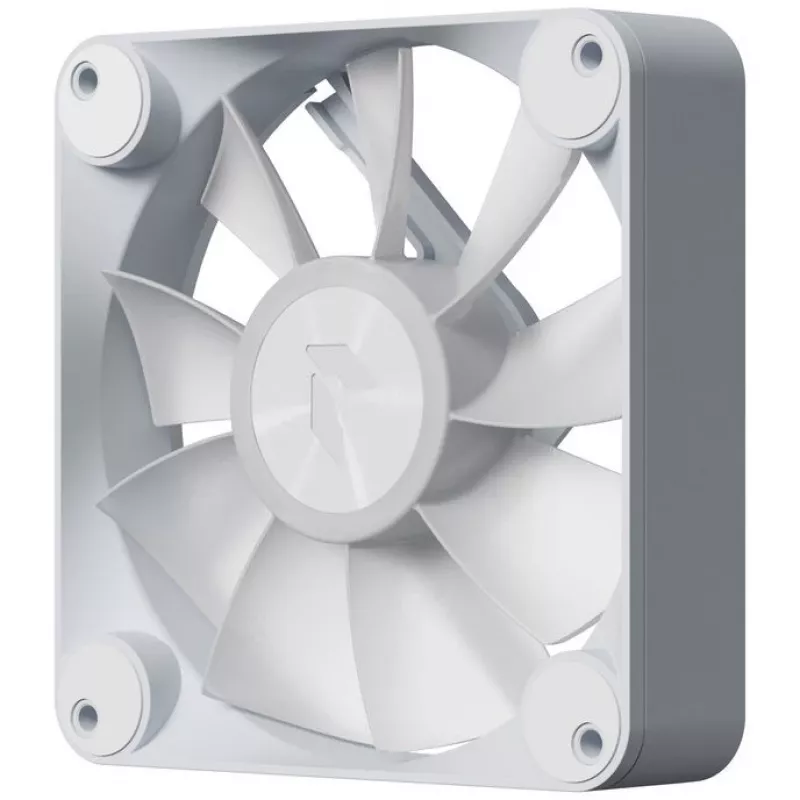

Ventilador de caja APNX FP1-RQ 120 PWM ARGB-WT 120 mm, control PWM, marco ARGB blanco

The APNX FP1-RQ 120 PWM ARGB-WT is a 120mm case and cooling fan featuring PWM speed control and addressable RGB lighting in a white frame. Designed for PC cases and CPU coolers, this fan combines adjustable airflow management with ARGB illumination that synchronizes with compatible motherboard controllers. The white frame provides a neutral, modern look that complements light-colored builds and highlights customizable lighting effects.

Advantages

The fan offers precise PWM control to balance noise and cooling performance, allowing the system to reduce speed under low load and ramp up when more airflow is required. Addressable RGB lighting provides per-LED color control for dynamic effects and compatibility with common motherboard ARGB headers. The 120mm size fits standard fan mounts and the white frame improves visual integration in bright or themed builds. The design emphasizes straightforward installation and reliable operation for continuous use in desktop systems.

Suitable for

• Airflow upgrades for mid-tower and full-tower PC cases
• Replacement or addition to CPU air coolers and radiator push/pull configurations
• Custom builds seeking white-frame aesthetics with ARGB lighting
• Systems requiring PWM-based fan speed control for thermal management

Key specifications

• Fan diameter: 120 mm
• Speed control: PWM (pulse-width modulation) for automatic RPM adjustment
• Lighting type: Addressable RGB (ARGB) with per-LED color control
• Frame color: White
• Mount type: Standard 4-hole 120 mm fan mounting
• Connector types: PWM power connector for fan speed and ARGB header for lighting (compatible with standard 3-pin ARGB headers)

How to use

Install the fan in a compatible 120 mm mounting location in the PC case or on a radiator, aligning the airflow direction as required by the system cooling design. Connect the PWM fan cable to a motherboard fan header that supports PWM control to enable automatic speed adjustments. Attach the ARGB cable to a compatible 3-pin addressable RGB header on the motherboard or to an ARGB controller that supports 5V addressable lighting. After connections are made, configure fan curves and lighting effects in the motherboard or controller software to achieve the desired balance of noise, cooling, and appearance.

Recommendations

For reliable performance, ensure the fan is mounted securely using anti-vibration screws or rubber grommets if available, and maintain unobstructed airflow paths inside the case. Use motherboard software to set conservative PWM curves initially, then adjust based on temperature monitoring. When synchronizing ARGB lighting, verify the header voltage and pin layout to avoid compatibility issues; do not connect a 5V ARGB device to a 12V RGB header.
