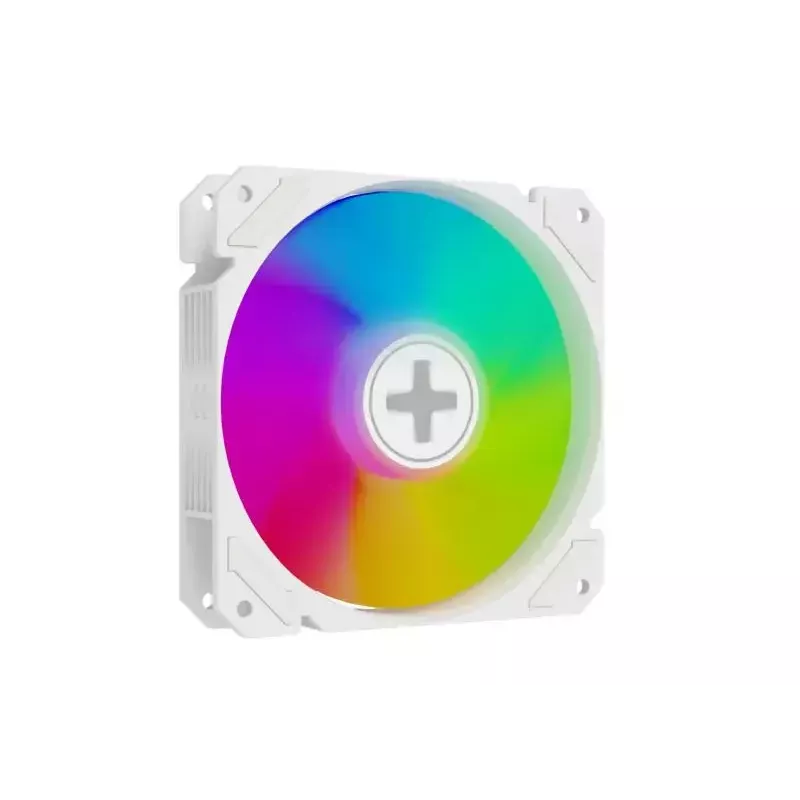

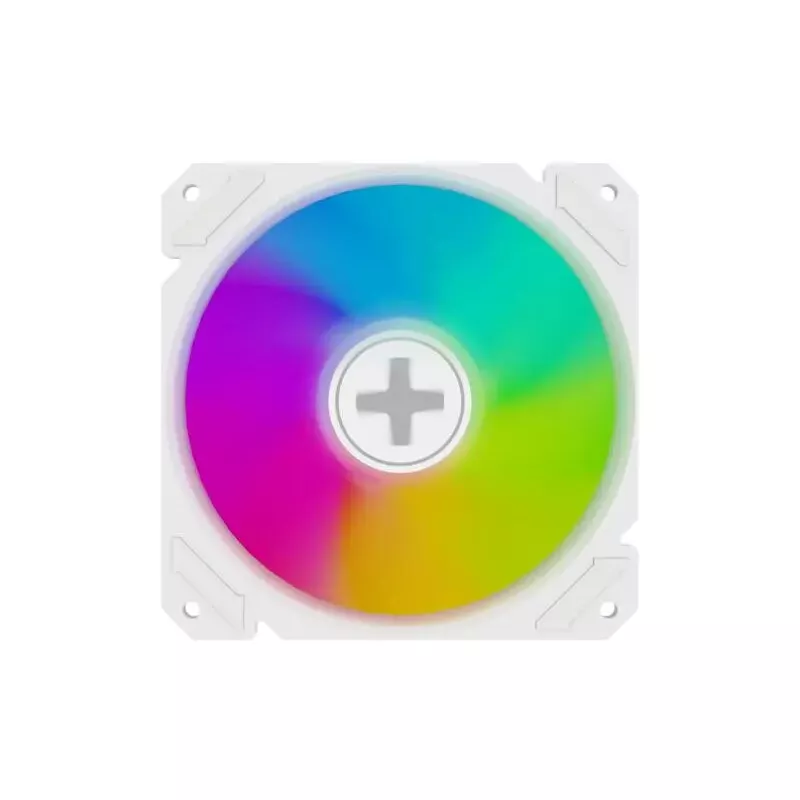

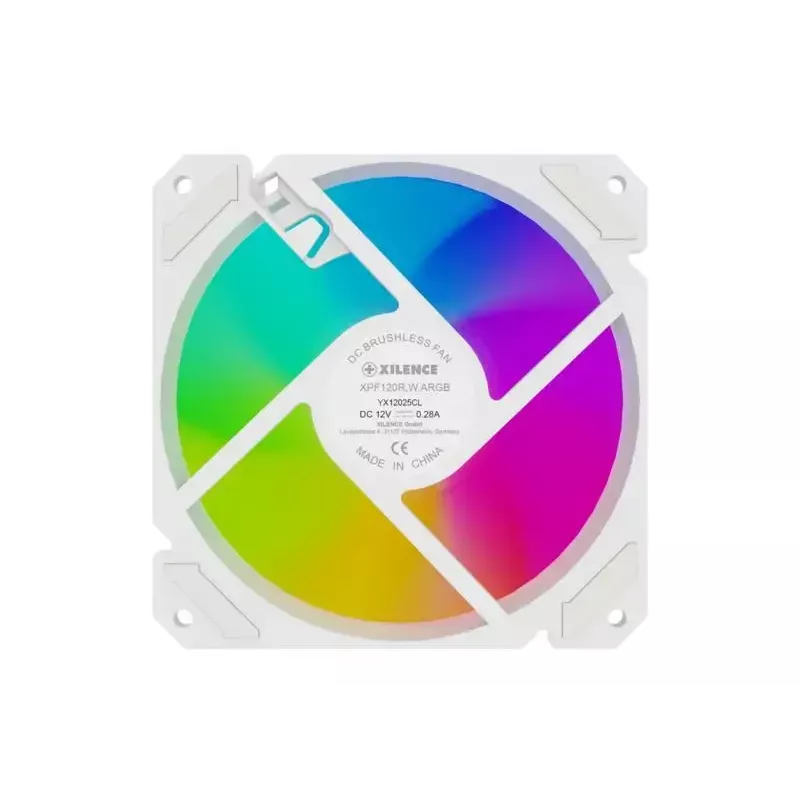

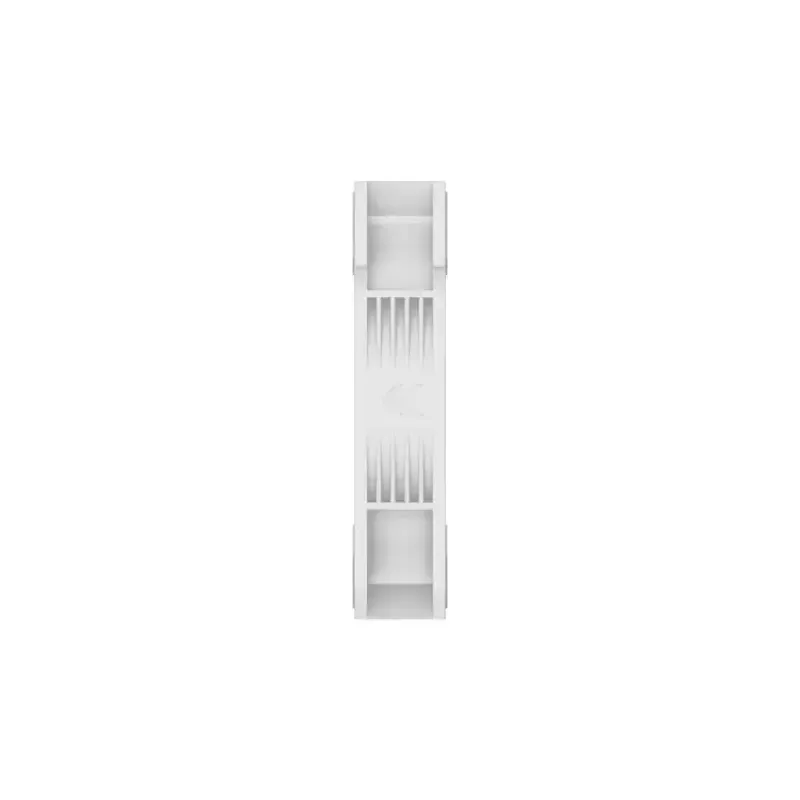

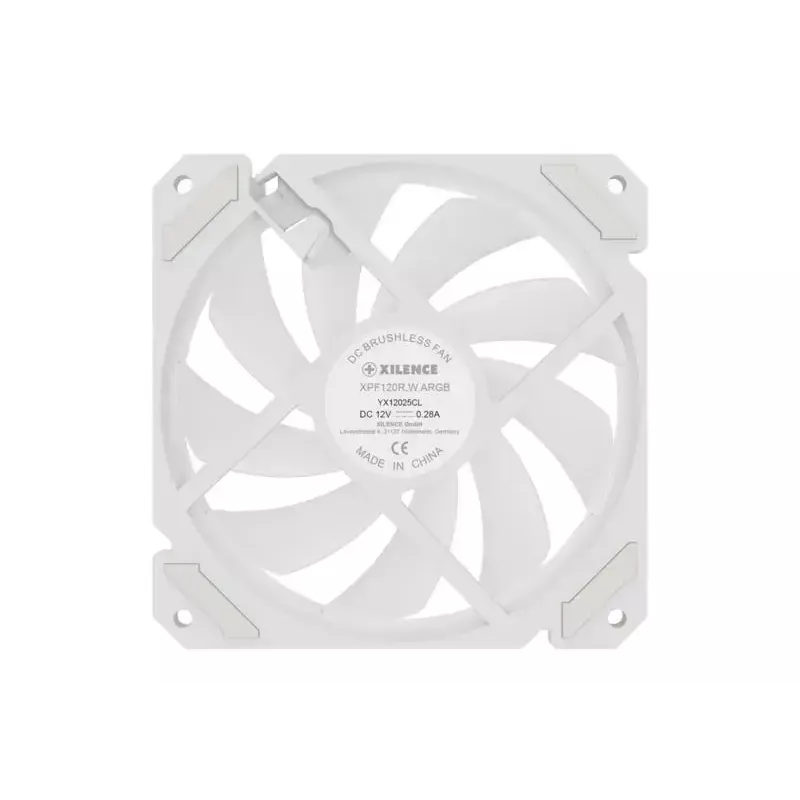

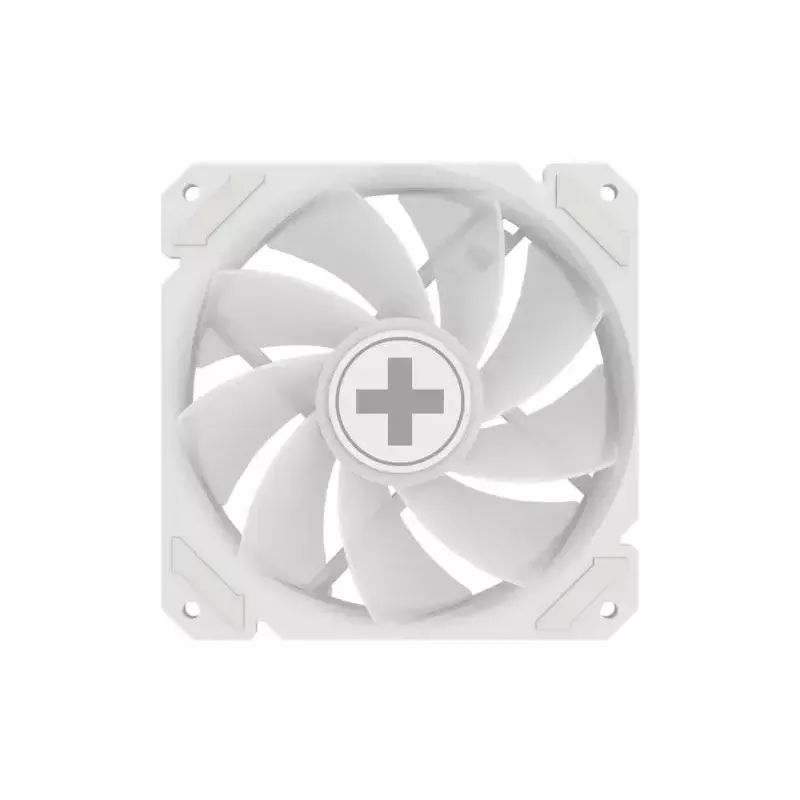

Ventilador de caja XILENCE XF066 120 mm PWM ARGB blanco — XPF120R.W.ARGB

The XILENCE XF066 (XPF120R.W.ARGB) is a 120 mm white case fan with PWM speed control and addressable ARGB lighting. It is designed for standard PC enclosures and offers adjustable airflow, quiet operation with a fluid (hydro) bearing, and compatibility with common ARGB controllers or motherboard lighting headers.

Advantages

The reverse-blade design provides effective cooling while directing airflow in the opposite direction compared with conventional fans, and the slim, filigree frame improves air circulation. PWM control allows precise regulation between 600 and 1500 RPM for a balance of performance and low noise (maximum 29 dB). Addressable ARGB lighting enables individual lighting effects and synchronization. The fluid bearing ensures long service life and near-silent operation.

Suitable for

• Cooling PC cases with standard 120 mm mounts
• Systems requiring PWM fan control for noise and performance management
• Builds that use ARGB lighting synchronization with controllers or motherboards

Key specifications

• Model: Performance A+ | XPF120R.W.ARGB (XF066)
• Fan size: 120 x 120 x 25 mm
• Bearing type: Fluid (hydro)
• Speed: 600–1500 ±10% RPM
• Airflow: 70 cfm
• Noise level (max): 29 dB
• Mainboard connection: 4-pin (PWM)
• Colour: White
• Units per shipping box: 80; product net weight: 0.13 kg

How to use

Mount the fan in a standard 120 mm slot inside the PC case, aligning the airflow direction as required for intake or exhaust. Connect the 4-pin PWM cable to a compatible motherboard fan header or PWM controller to enable speed control. Connect the ARGB cable to an addressable RGB header or controller to manage lighting effects and synchronization. Secure the fan with the provided screws and verify that the fan spins freely before powering on the system.

Recommendations

For optimal cooling and quiet operation, configure PWM curves in the motherboard or controller software to increase RPM under high CPU/GPU load and lower RPM during idle. Combine these reverse-design fans with other case fans of similar airflow characteristics and an ARGB-compatible controller for uniform lighting effects.
