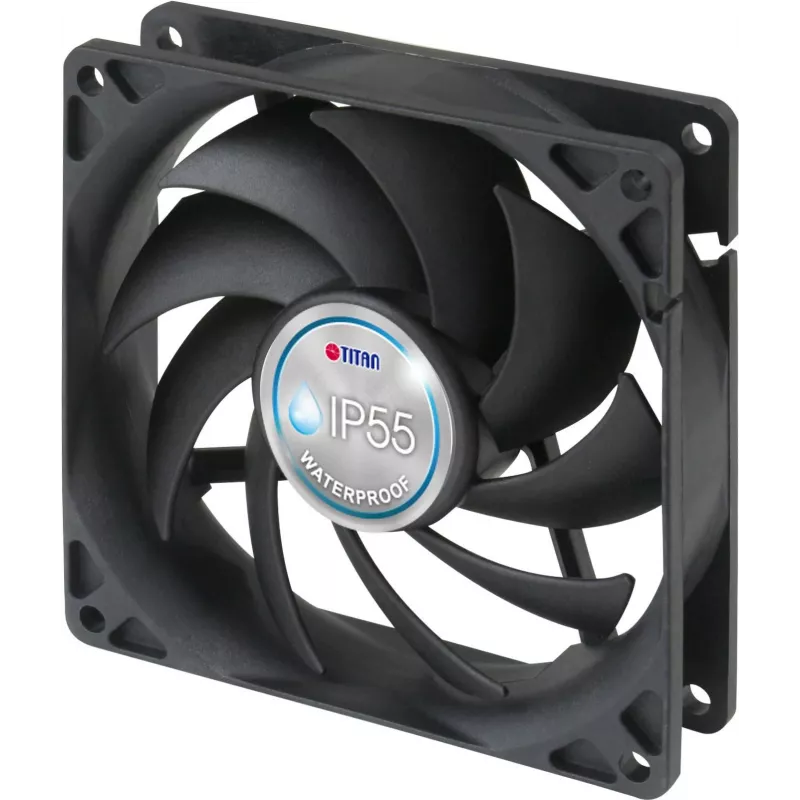

Ventilador de carcasa TITAN TFD-9225HH12B/KW(BX) 92mm

The TITAN TFD-9225HH12B/KW(BX) 92mm Case Fan delivers reliable, high-performance cooling for a variety of demanding environments. Engineered with a dual ball bearing system and IP55-rated protection, this fan ensures long-lasting operation even in humid, dusty, or high-temperature conditions. Its compact 92mm form factor and 12V DC power make it an ideal choice for precise instruments, commercial kitchens, factories, and other industrial or commercial applications.

Key features

• 92 x 92 x 25 mm standard frame size for easy installation in compatible cases and equipment
• Rated voltage of 12V DC with a current draw of 0.3A and power consumption of 3.24W
• Minimum rated speed of 3000 ± 10% RPM, generating an airflow of 54.8 CFM and static pressure of 0.16 InchH2O
• Equipped with two ball bearings for enhanced durability and extended service life of 50,000 hours
• IP55 protection class against water and dust ingress, suitable for harsh environments
• 3-pin connector for straightforward connection to standard fan headers
• Hole spacing of 82.5mm for secure mounting
