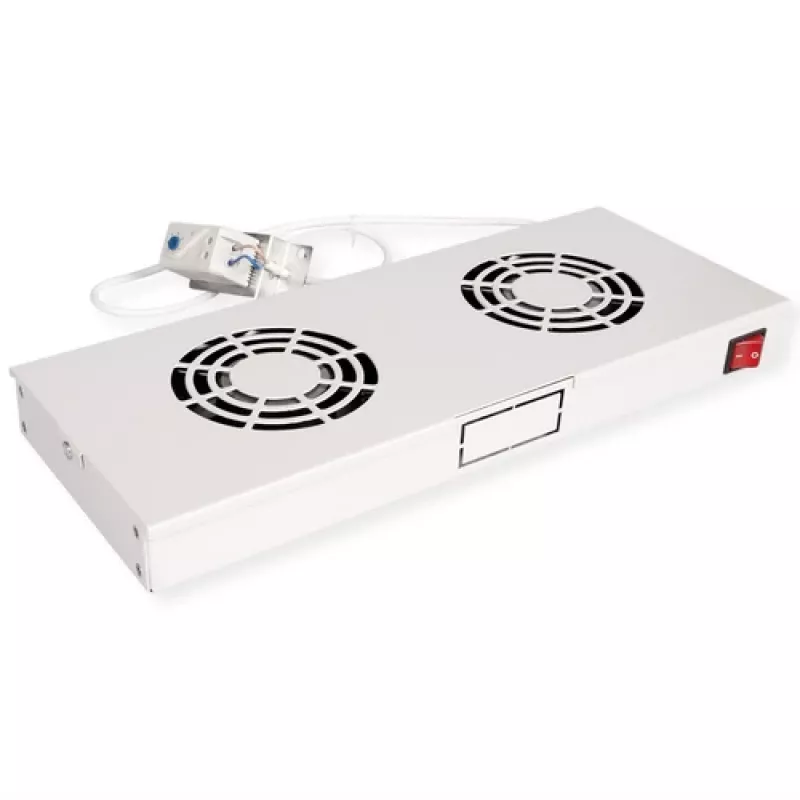

Ventilador de refrigeración ROLINE unidad de ventiladores de techo 19" 2 ventiladores termostato gris

The ROLINE 19-inch roof fan unit with two fans and an adjustable thermostat provides targeted ventilation for network and server enclosures. Constructed from durable steel, the unit fits standard 19" racks and is available in grey (RAL 7035) and black (RAL 9005). Two sets of mounting brackets are included to enable installation either on a rack height unit or in the roof of ROLINE Pro and Basic series cabinets.

Advantages

The unit offers flexible installation options with two mounting bracket sets, an integrated switch and an adjustable thermostat for temperature-based control, and a compact 482 mm width that conforms to 19" rack standards. Its steel construction ensures stable mounting and long-term durability while colour options allow visual integration with existing equipment.

Suitable for

• Cooling network switches and patch panels in 19" racks
• Ventilating server enclosures in small to medium IT installations
• Adding roof-mounted extraction in ROLINE Pro and Basic cabinets
• Replacement or upgrade of existing 19" rack ventilation

Key specifications

• Brand: ROLINE
• Model: 19-inch roof fan unit, 2 fans
• MPN: 26.21.0106
• EAN: 7630049601079
• Material: Steel
• Dimensions (W x D x H): 482 mm x 176 mm x 44 mm
• Control: Integrated switch and adjustable thermostat
• Colours: Grey (RAL 7035), Black (RAL 9005)

How to use

Choose the appropriate bracket set for your installation: use the standard set to mount the fan unit to a rack height unit, or use the second set to install it in the roof of a ROLINE Pro or Basic series cabinet. Secure the unit to the rack or cabinet following the included mounting hardware instructions, connect power according to your rack's electrical setup, then set the thermostat to the desired activation temperature and switch the unit on.

Recommendations

Install the fan unit in a position that allows unrestricted airflow in and out of the cabinet, and set the thermostat to activate fans slightly above normal operating temperature of your equipment to reduce unnecessary runtime.
