Ventilador para caja XSPC 120mm ARGB PWM, RGB Series 2, 120 mm

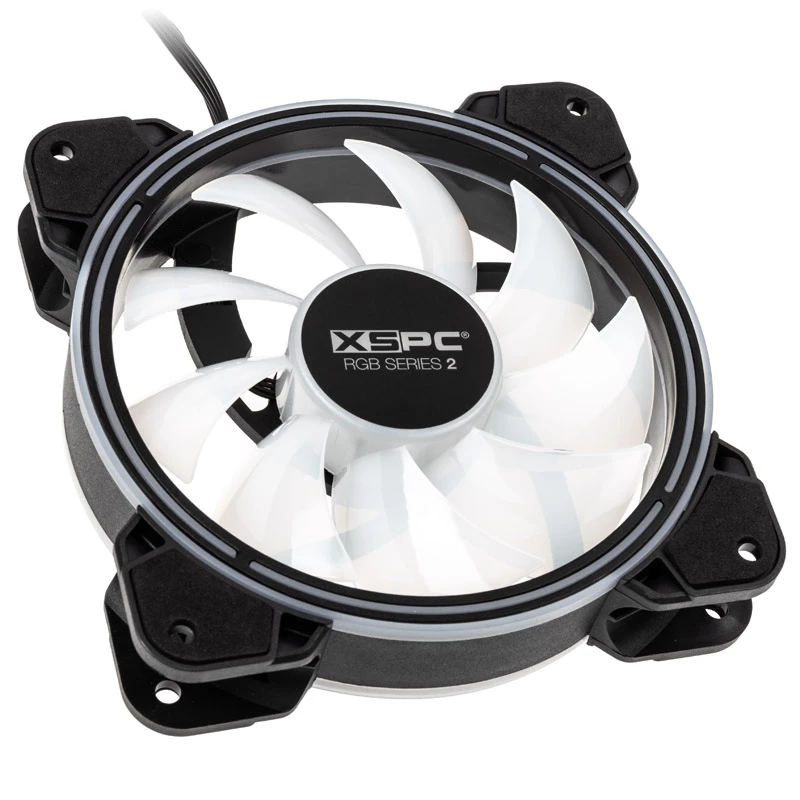

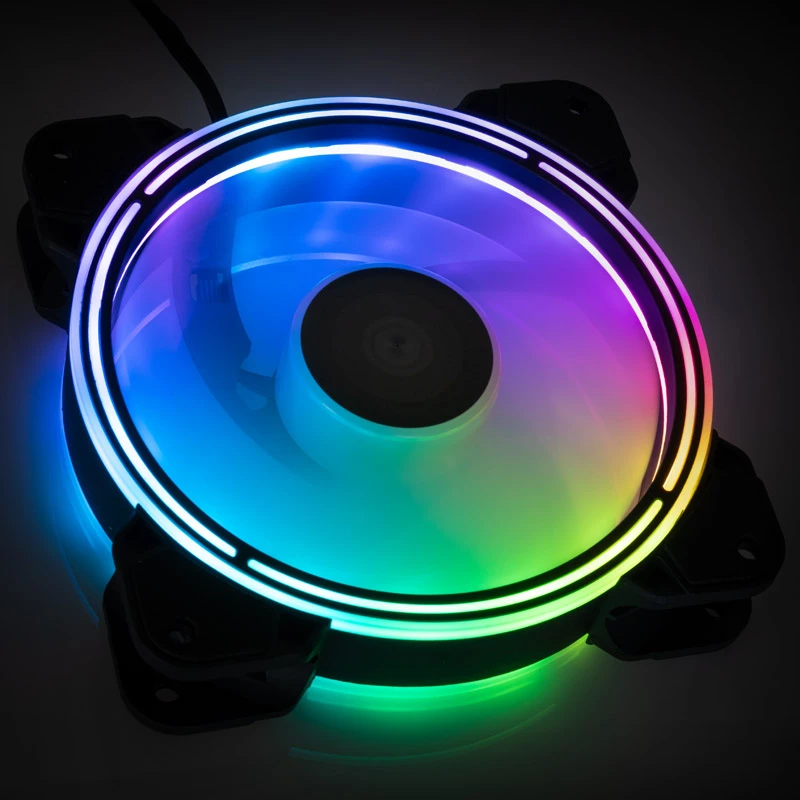

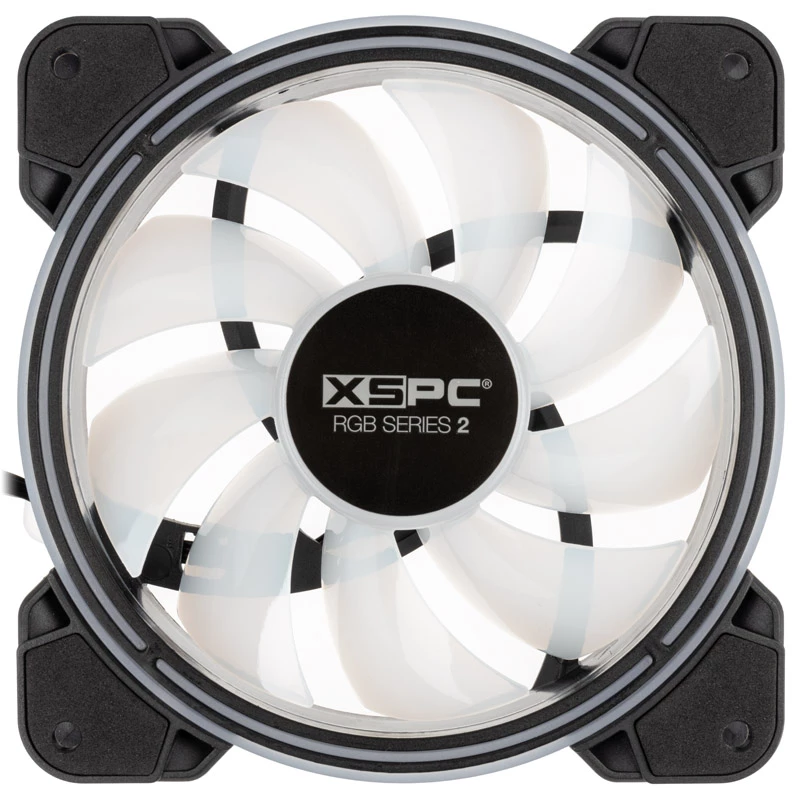

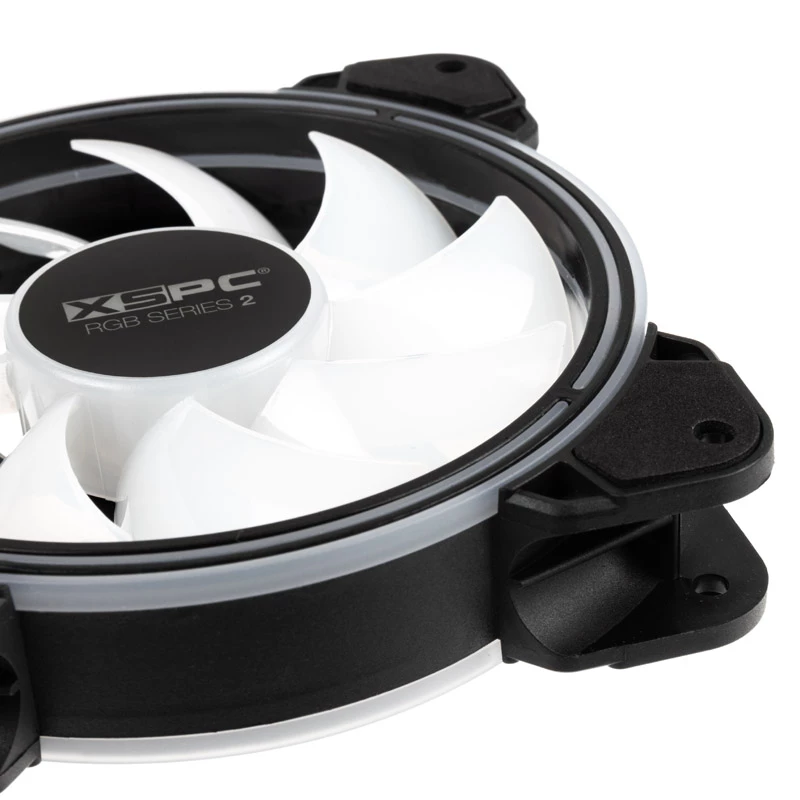

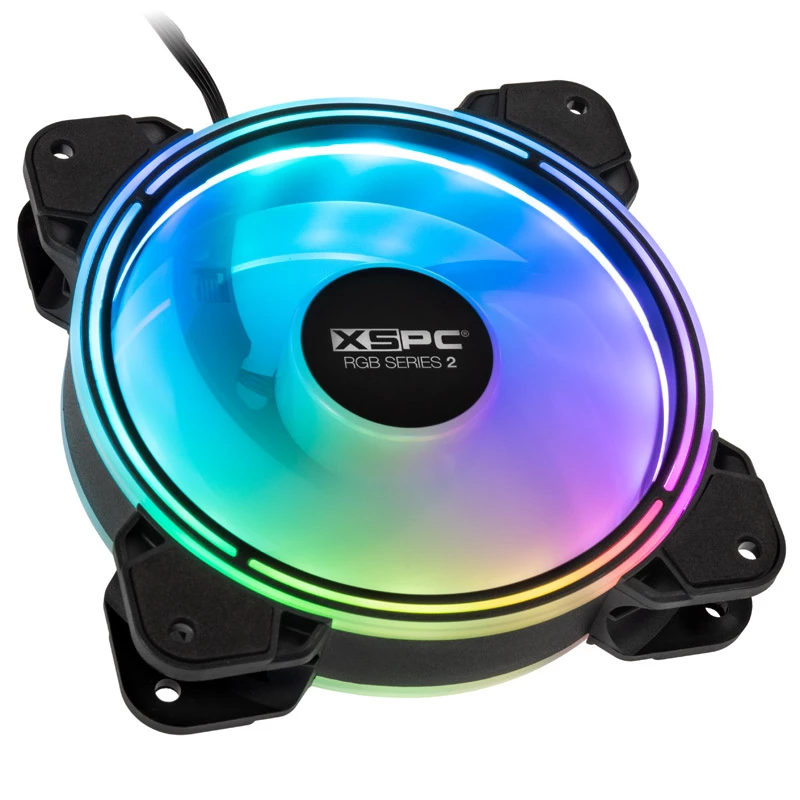

The XSPC 120mm ARGB PWM Case Fan, RGB Series 2, 120 mm is a 120 mm cooling fan designed for PC cases and radiators. It combines addressable RGB lighting with PWM-controlled speed, allowing synchronized illumination and automatic fan speed adjustments when connected to compatible motherboard headers. The fan is intended for use in desktop systems where both airflow performance and configurable lighting are required.

Advantages

This fan provides adjustable airflow through PWM control to balance cooling performance and acoustic levels. Addressable RGB lighting enables per-LED color control and integration with common motherboard lighting ecosystems. The 120 mm form factor makes it compatible with most case fan mounts and standard radiators, while the design supports steady airflow across varied system loads.

Suitable for

• Case airflow in gaming and workstation PCs
• Mounted on 120 mm radiators for liquid cooling loops
• System ventilation in compact and mid-tower builds
• Builds requiring synchronized ARGB lighting and PWM fan control

Key specifications

• Fan diameter: 120 mm
• Lighting type: Addressable RGB (ARGB) with per-LED control
• Speed control: PWM (pulse-width modulation) for automatic RPM regulation
• Mounting compatibility: Standard 120 mm fan mounts and radiators
• Connector types: PWM fan power connector and ARGB lighting connector (for motherboard headers)

How to use

Install the fan in a 120 mm fan mount or radiator position using the included screws or standard fan screws. Connect the PWM fan connector to a motherboard fan header that supports PWM control to enable automatic speed adjustment based on system temperature. Connect the ARGB lighting cable to an addressable RGB header on the motherboard or an ARGB controller to enable lighting control and synchronization. Ensure correct cable routing to avoid interference with other components or airflow.

Recommendations

For optimal cooling and noise balance, configure fan curves in the motherboard BIOS or fan control software to match your system’s thermal profile. When mounting on radiators, maintain push, pull, or push-pull configurations as required by your liquid cooling setup, and confirm ARGB header compatibility before connecting lighting cables.
