Ventilador Phanteks D30 12 cm negro

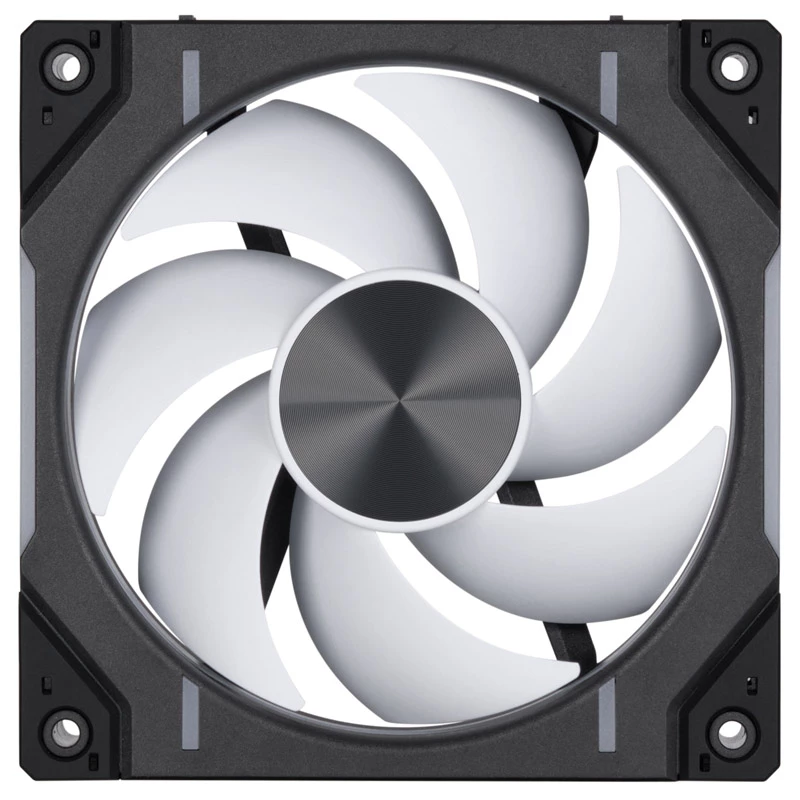

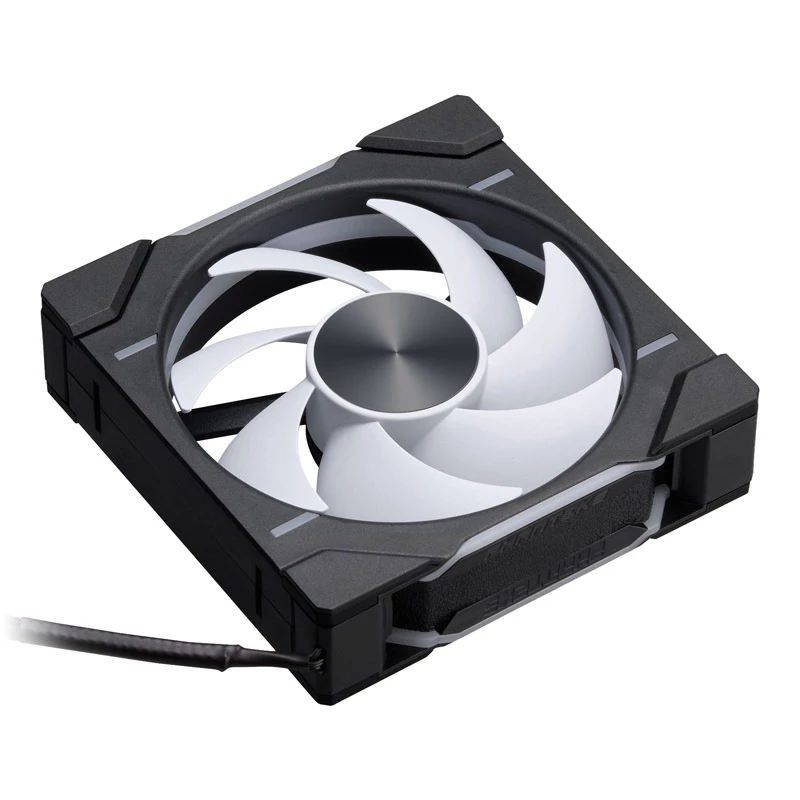

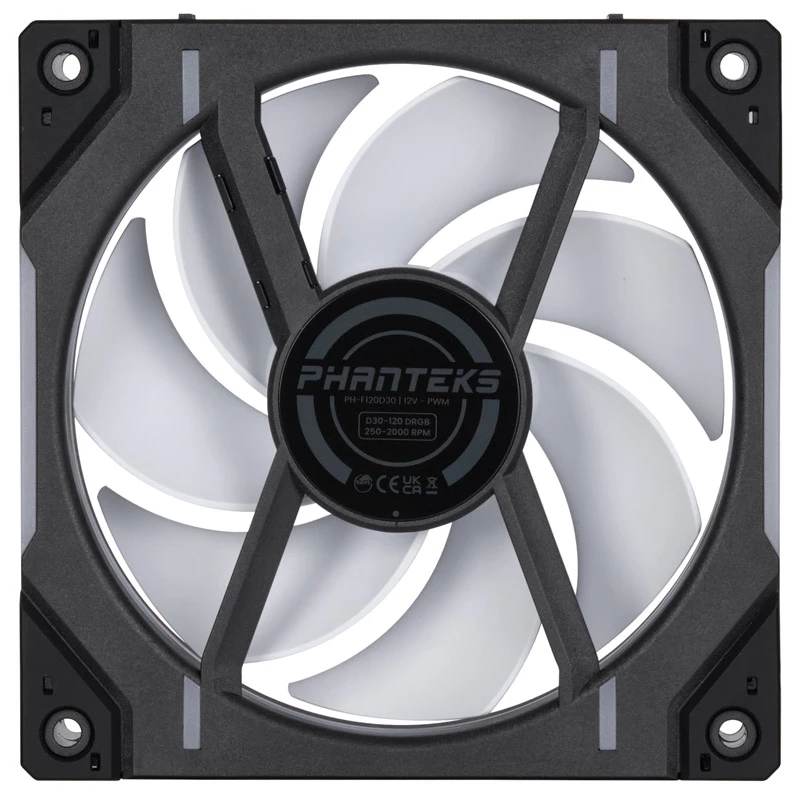

The Phanteks D30-120 is a 120 mm case fan designed for effective airflow and modern D-RGB aesthetics. With a 30 mm thick aerodynamic frame and blades inspired by the T30 fan, the D30-120 combines lighting and cooling in a compact form factor. It is available in regular and reverse airflow versions to allow flexible installation without blocking the blade lighting. The fan operates between 1750 and 2250 RPM, delivers an airflow of 3.01 m³/h, and uses a Fluid Dynamic Bearing (FDB) for quieter operation and longer life. Dimensions: 120 × 120 × 30 mm; colour: black.

Advantages

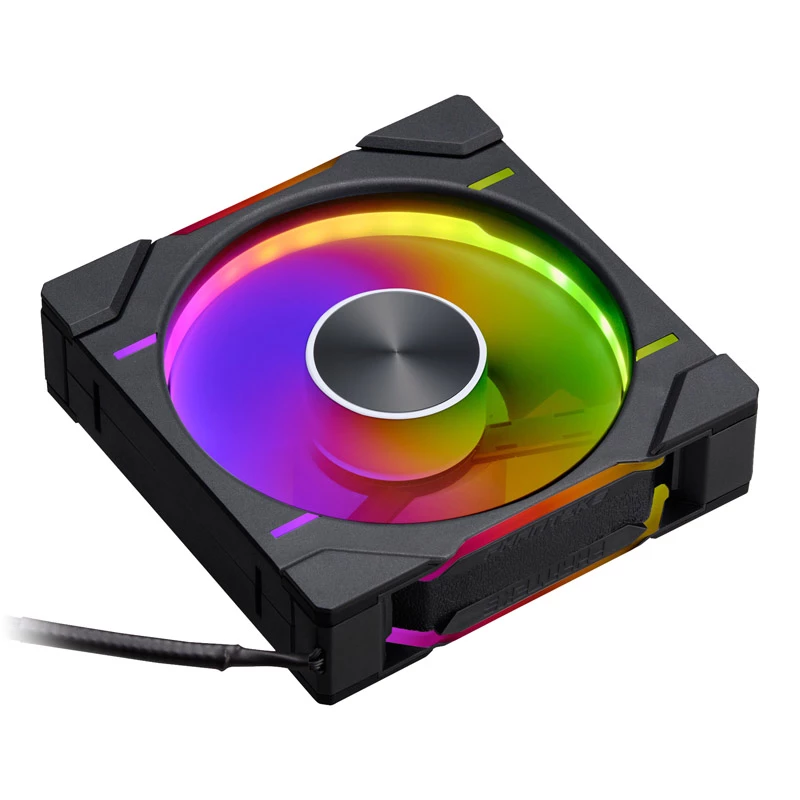

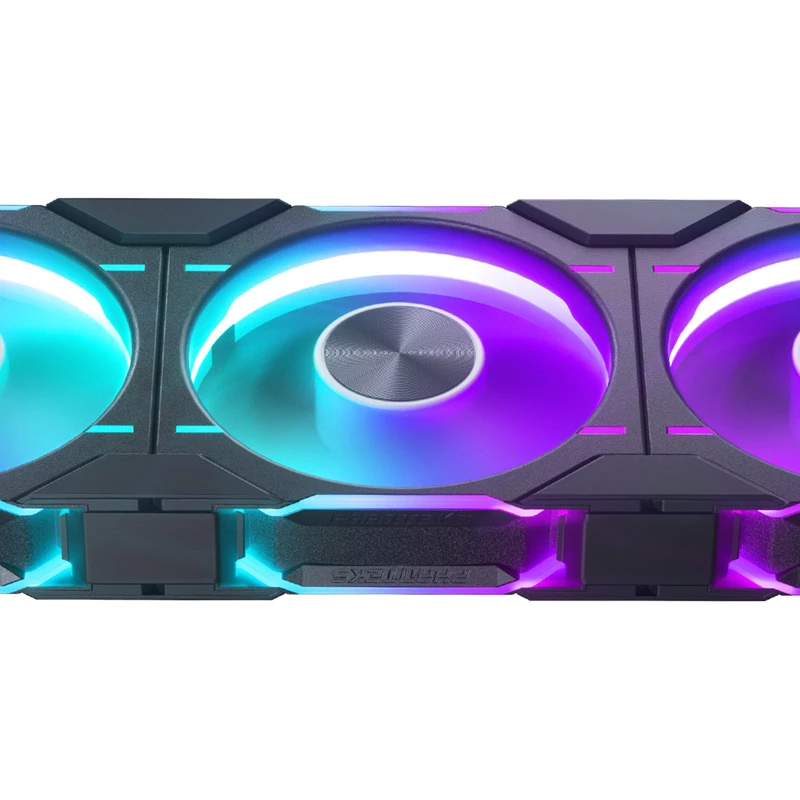

The D30-120 integrates full-frame D-RGB lighting across the frame and blades for consistent illumination, while bridge connectors and screw cover plates permit linking multiple fans to reduce cable clutter. The 30 mm thick aerodynamic blade design improves airflow performance compared with standard thin-frame fans. Availability in both regular and reverse airflow models enables optimal fan orientation for any build.

Suitable for

• Case cooling in desktop PC builds
• Radiator or air-cooling setups requiring compact, high-RPM fans
• Systems where synchronized D-RGB lighting and clean cable management are desired

Key specifications

• Fan diameter: 120 mm
• Thickness: 30 mm
• Speed range: 1750–2250 RPM
• Airflow: 3.01 m³/h
• Bearing type: Fluid Dynamic Bearing (FDB)
• Operating voltage: 5–13.2 V
• Colour: Black
• MPN: PH-F120D30_DRGB_PWM_BK01
• EAN: 0886523002925

How to use

Install the fan into your PC case or radiator using the supplied screws, observing the airflow direction appropriate for your chosen configuration (regular or reverse model). Connect the power and D-RGB headers to your motherboard or controller following the manufacturer’s pinouts. When linking multiple D30-120 fans, use the provided bridge connectors and screw cover plates to join frames and route cables neatly.

Recommendations

For quieter operation and extended bearing life, run the fan through PWM control and keep the operating voltage within the specified 5–13.2 V range. Choose the regular or reverse airflow model to avoid obstructing the blade lighting and to achieve the most effective airflow path for your chassis layout.
