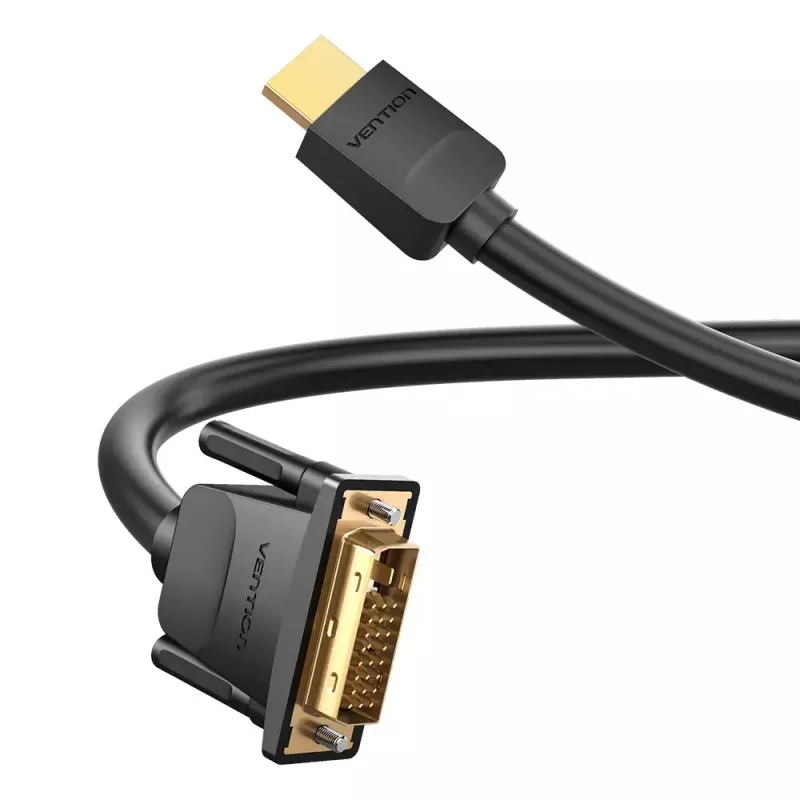

Vention Cable HDMI a DVI 3M negro HDMI Type-A DVI-D 3m

VENTION bi-directional HDMI to DVI male-to-male cable allows connection between HDMI-equipped source devices and DVI-equipped displays, or vice versa. The cable supports common HDTV and computer resolutions up to 1080p @ 60Hz and is suitable for a wide range of devices including PCs, game consoles, media players, laptops and monitors.

Advantages

The cable features 24K gold-plated full metal connectors and oxygen-free copper conductors for reliable signal transfer and corrosion resistance. Double shielding with aluminum foil and braid reduces crosstalk and suppresses electromagnetic and radio-frequency interference, while molded strain relief and finger-tightened DVI screws improve durability and maintain a secure connection. The single cable supports two-way conversion between HDMI and DVI for versatile use.

Key specifications

• Connector type: HDMI A Male to DVI-D 24+1 Male
• Bi-directional: supports HDMI→DVI and DVI→HDMI
• Maximum supported resolution: 1080p @ 60Hz (supports 800×600, 1024×768, 1280×1024, 1600×1200, 1920×1200, 1080P)
• Conductors: oxygen-free copper
• Shielding: aluminum foil + braided shield (double shielding)
• Connectors: 24K gold-plated, full metal
• Cable jacket: durable PVC
• Compatibility: compatible with HDMI and DVI-D 24+1 devices; also compatible with DVI-I 24+5 devices

How to use

Identify the HDMI-equipped and DVI-equipped devices you want to connect. Insert the HDMI A male connector into the HDMI port of the source device and insert the DVI-D 24+1 male connector into the DVI port of the display, or reverse the connection for DVI-to-HDMI use. If the DVI connector has screws, finger-tighten them to secure the connection. Power on both devices and select the appropriate input on the display. The cable carries video signals; for audio use a separate audio connection if required by your setup.

Recommendations

Use the cable within its supported resolution limits (up to 1080p @ 60Hz). Avoid excessive bending near the connectors and ensure screws are hand-tightened only. For devices requiring audio over HDMI, provide a separate audio connection when using DVI displays that do not support audio.
