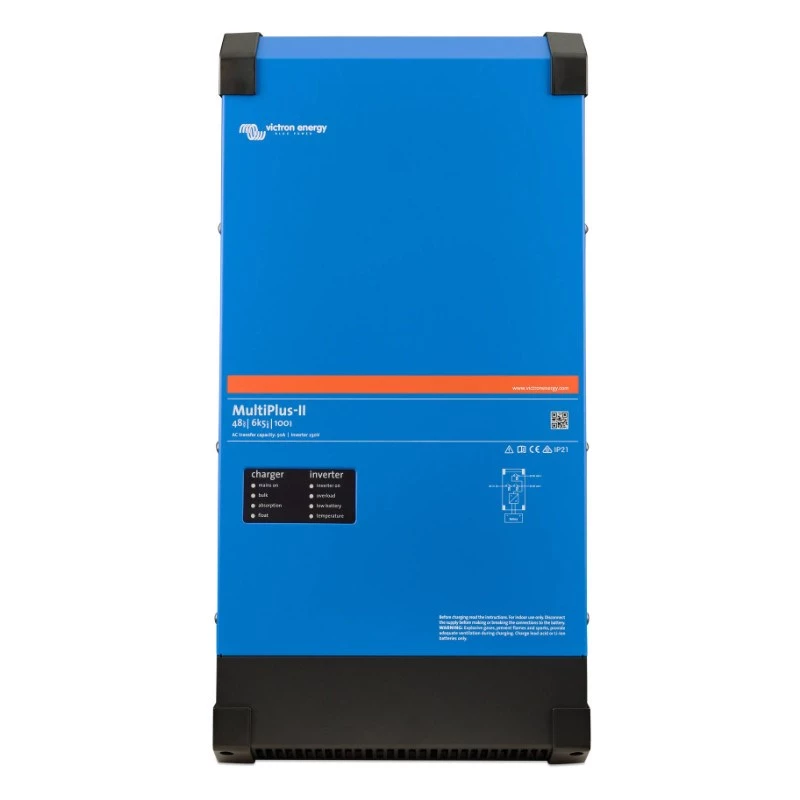

Victron Energy MultiPlus-II 48/6k5 100-50 230V inversor/cargador

The Victron Energy MultiPlus-II 48/6k5 100-50 230V is a powerful inverter/charger combining a 6000VA/5000W inverter, a 100A battery charger, and a 50A AC transfer switch in one compact unit. Ideal for off-grid, marine, and mobile applications, it features PowerAssist technology and supports parallel and three-phase configurations.

Advantages

High efficiency (95%) and low zero-load power (20W) reduce energy waste. PowerAssist prevents overload by supplementing generator or shore power with battery power. The unit can be paralleled with up to six units for higher power output or configured for three-phase systems.

Suitable for

• Off-grid solar systems
• Marine and boat electrical systems
• Mobile homes and RVs
• Backup power for homes and businesses

Key specifications

• Inverter Output: 6000VA / 5000W
• DC Input: 48V nominal (38-66V range)
• AC Output: 230VAC ±2%, 50Hz (60Hz selectable)
• Max Battery Charge Current: 100A
• Transfer Switch: 50A
• Max Efficiency: 95%
• Zero-load Power: 20W
• Protection: Output short circuit, overload, battery voltage high/low, temperature high
• Operating Temperature: -40 to +65°C
• Enclosure: IP21
• Communication: VE.Bus, AUX input, temperature sensor, voltage sensor, programmable relay

Recommendations

For optimal performance, use with Victron Energy batteries and monitoring systems. Ensure proper ventilation and follow installation guidelines.
