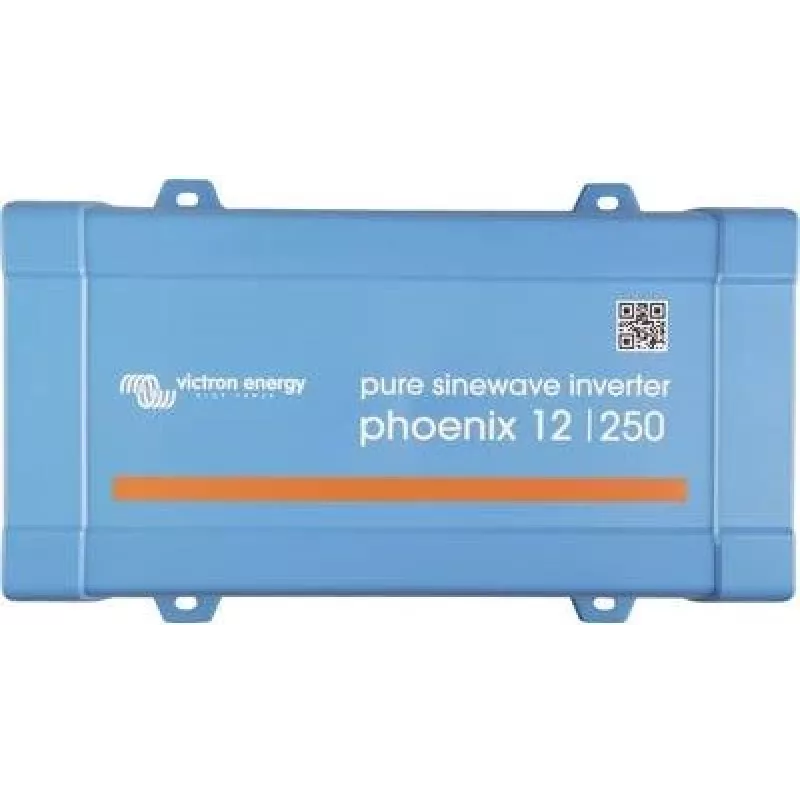

Victron Energy Phoenix 12/250 250 W 12 V DC a 230 V AC Inversor de onda senoidal PIN122510200

For mobile and off-grid power systems, the Phoenix 12/250 delivers a clean 230 V true sine wave from a 12 V battery bank—no modified square wave compromises. Its 250 VA continuous rating supports sensitive electronics, while the VE.Direct port opens up remote monitoring and firmware updates that many compact inverters lack.

Highlights

• True sine wave output for flawless operation of motors, chargers, and audio equipment
• 250 VA continuous power at 25 °C, with 400 W peak for start-up surges
• Ultra-low no-load consumption: 4.2 W standard, 0.8 W in ECO mode
• VE.Direct communication port for system integration and data logging
• Wide DC input range (9.2–17 V) and full protection suite for harsh environments

In daily use

Install the Phoenix 12/250 in a campervan, boat, or remote cabin and it quietly powers laptops, small TVs, and tool chargers. The aluminium enclosure (IP21) sheds heat efficiently, and the adjustable 50/60 Hz output suits both European and international appliances. Remote on/off terminals let you wire a switch or relay for convenient control from a distance.

Full specifications

• Input voltage: 12 V DC (range 9.2–17 V)
• Output voltage: 230 V AC, adjustable frequency 50/60 Hz
• Continuous power: 250 VA / 200 W at 25 °C; 200 VA / 160 W at 40 °C
• Peak power: 400 W
• Efficiency: up to 87%
• No-load current: 4.2 W (0.8 W in ECO mode)
• Protection: short circuit, overload, battery high/low voltage, over-temperature, DC ripple
• Operating temperature: -40 to +65 °C
• Enclosure: aluminium, blue RAL 5012, IP21
• Certifications: CE, EN/IEC 60335-1, EN/IEC 62109-1

Final note

Backed by Victron's reputation for reliability, the Phoenix 12/250 is a compact powerhouse for anyone who needs clean AC power from a 12 V source without compromise.
