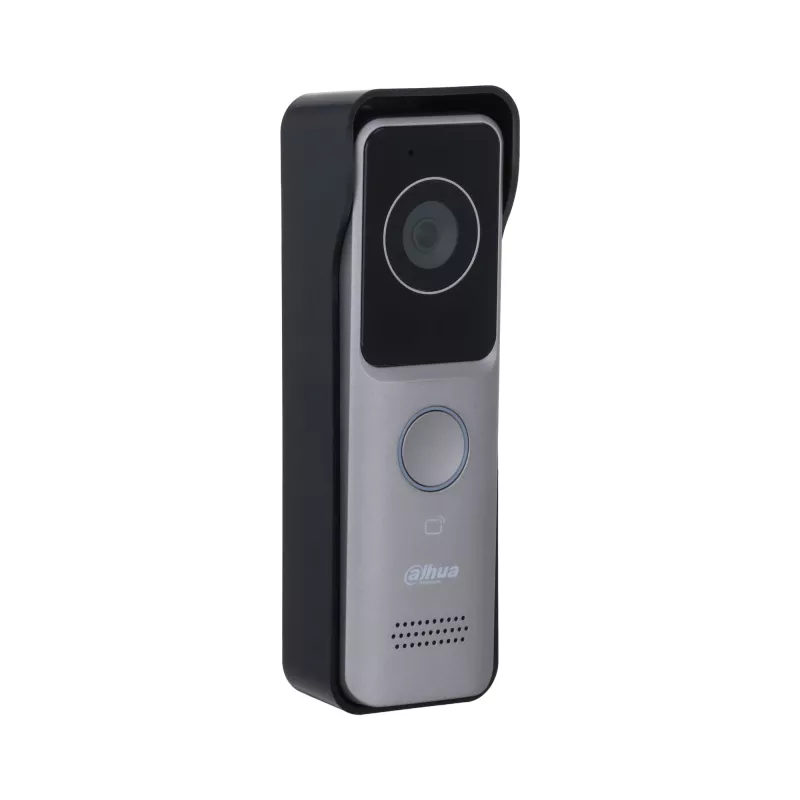

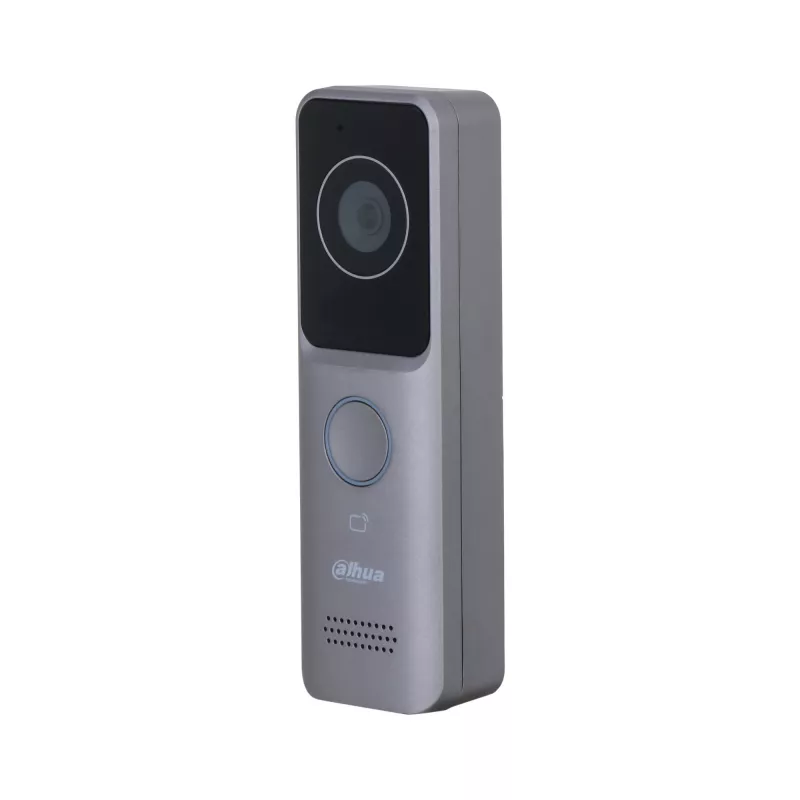

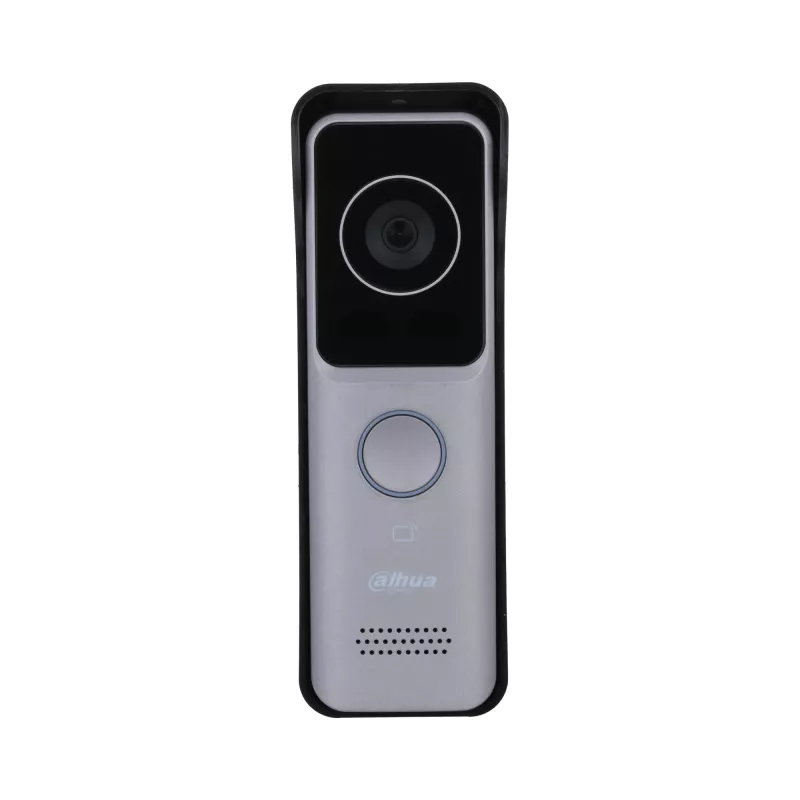

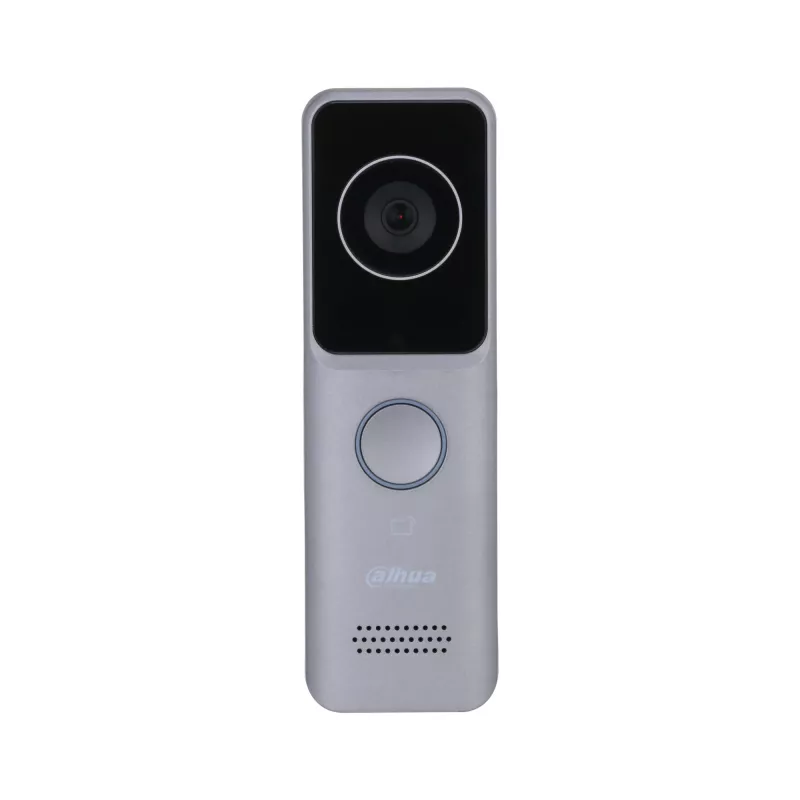

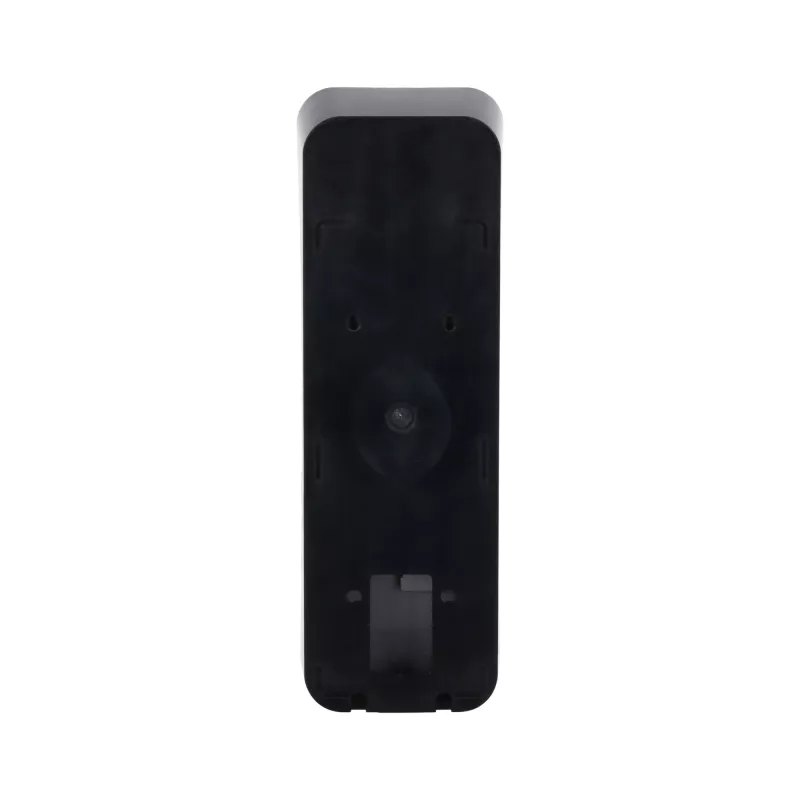

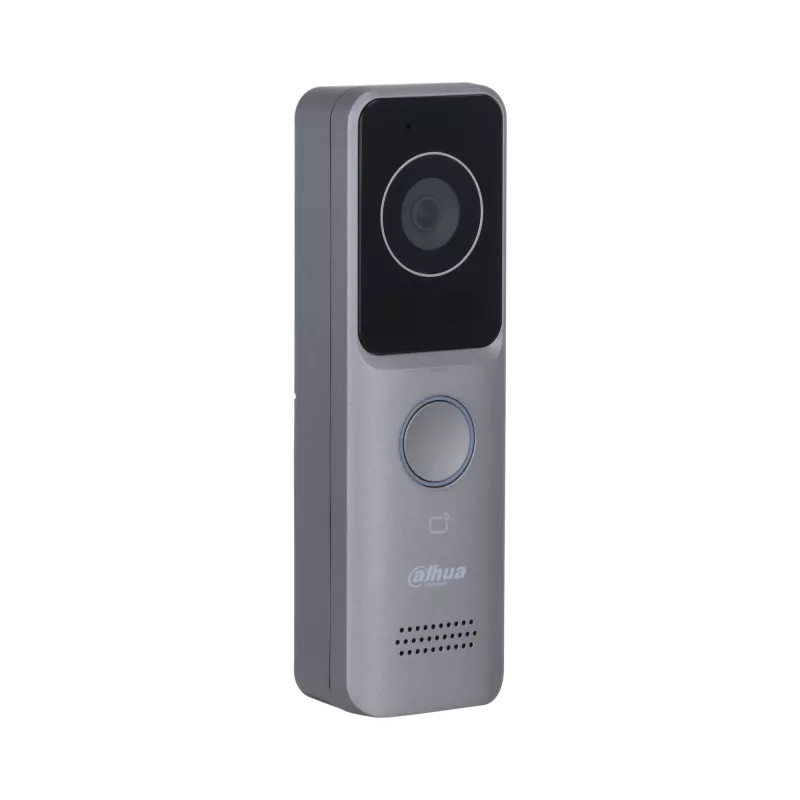

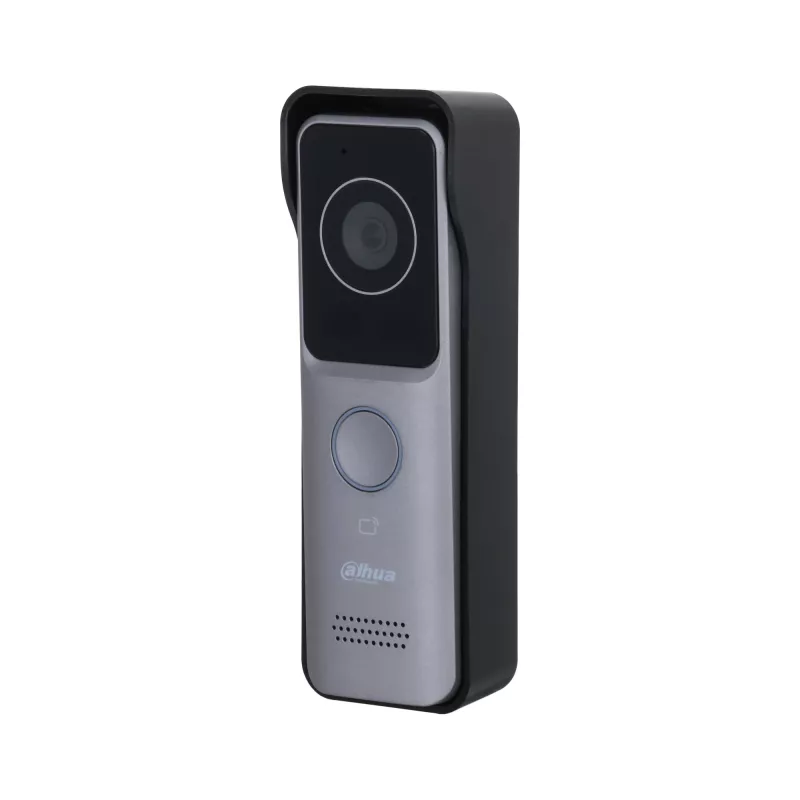

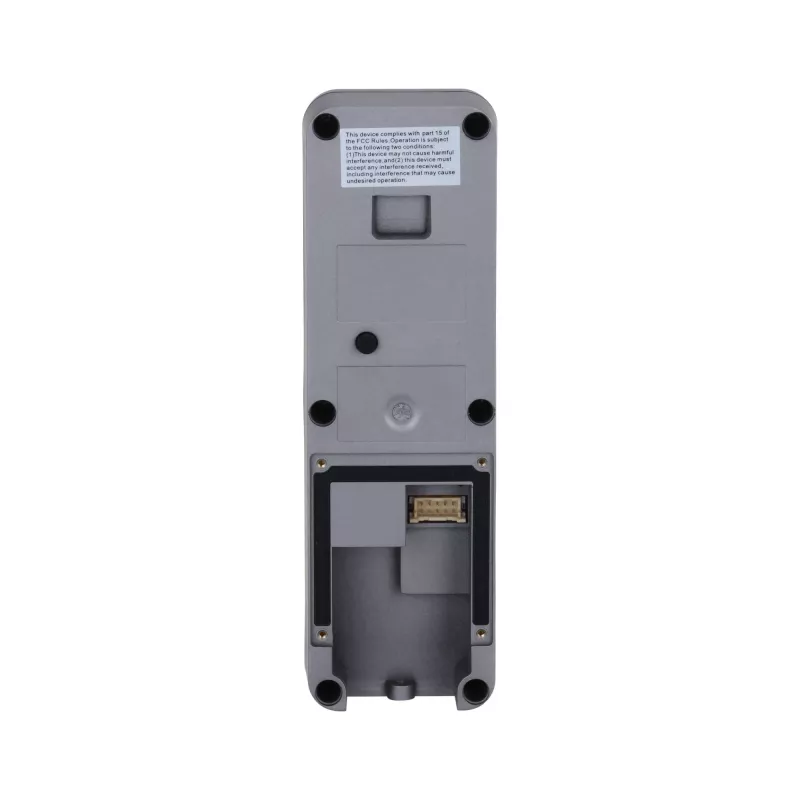

Videoportero Dahua VTO2311R-WP 2 MP, IP65, Wi-Fi 802.11b/g/n, Fast Ethernet, LED IR, ABS/PC

The Dahua Technology VTO2311R-WP is a 2 MP video intercom panel in light grey with an IP65 rating for outdoor use. It supports H.264 and H.265 video compression, uses a CMOS image sensor and IR LED for improved low-light performance, and provides both Fast Ethernet and 802.11b/g/n wireless connectivity. The housing is made of ABS and PC materials and the unit accepts 12–33 VDC power or standard PoE, with an operating temperature range from -40 °C to +60 °C.

Advantages

The device offers weather-resistant construction with an IP65 rating and durable ABS/PC housing for reliable outdoor operation. Dual video codec support (H.264/H.265) reduces bandwidth and storage requirements while maintaining image quality. Multiple connectivity options including Fast Ethernet and Wi‑Fi increase installation flexibility. The IR LED and CMOS sensor enable usable video in low-light conditions.

Suitable for

• Residential entry panels for houses and apartment buildings
• Access control at small commercial or office entrances
• Outdoor installations requiring weatherproof intercoms
• Sites needing wired or wireless network connection

Key specifications

• Image sensor: CMOS, 2 MP resolution
• Video compression: H.264 and H.265
• Network: Fast Ethernet and Wi‑Fi 802.11b/g/n
• Ingress protection: IP65
• Materials: ABS and PC housing
• Power: 12–33 V DC or standard Power over Ethernet (PoE)
• Operating temperature: -40 °C to +60 °C
• Infrared illumination: IR LED for low-light imaging

How to use

Mount the unit on a suitable outdoor surface following local installation rules and ensure the housing is securely fixed. Connect power using 12–33 VDC wiring or provide standard PoE over the network cable. Configure network settings for either wired Fast Ethernet or Wi‑Fi (802.11b/g/n) through the device web interface or supported configuration tool. Adjust camera angle and test audio/video and IR performance under different lighting conditions.

Recommendations

Install the intercom in a sheltered but accessible location to reduce direct exposure to severe weather; use PoE where possible for simplified cabling and reliable power delivery. Regularly check seals and mounting hardware and update firmware to maintain security and compatibility.
