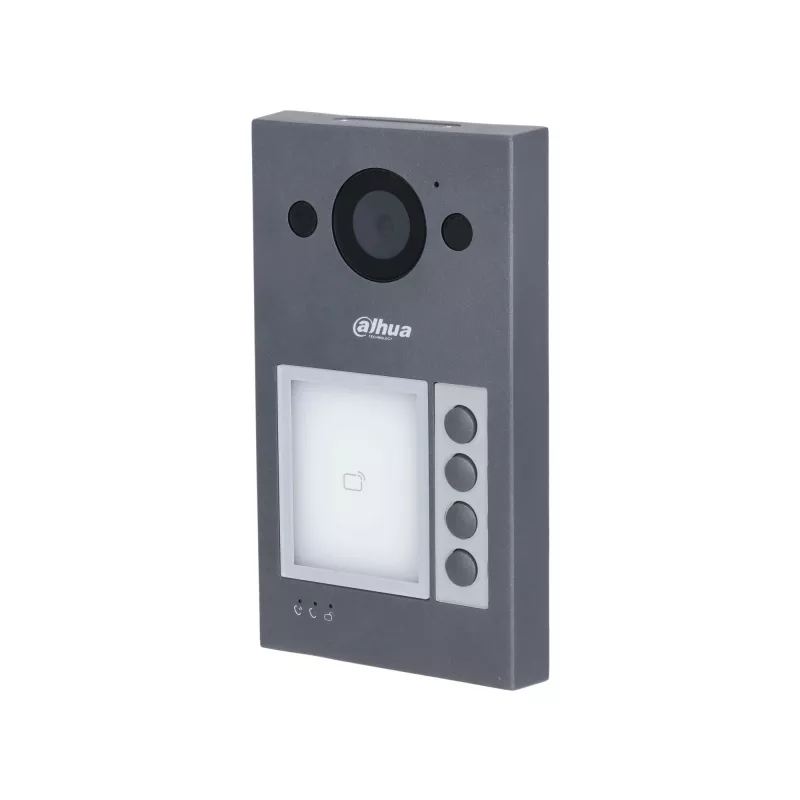

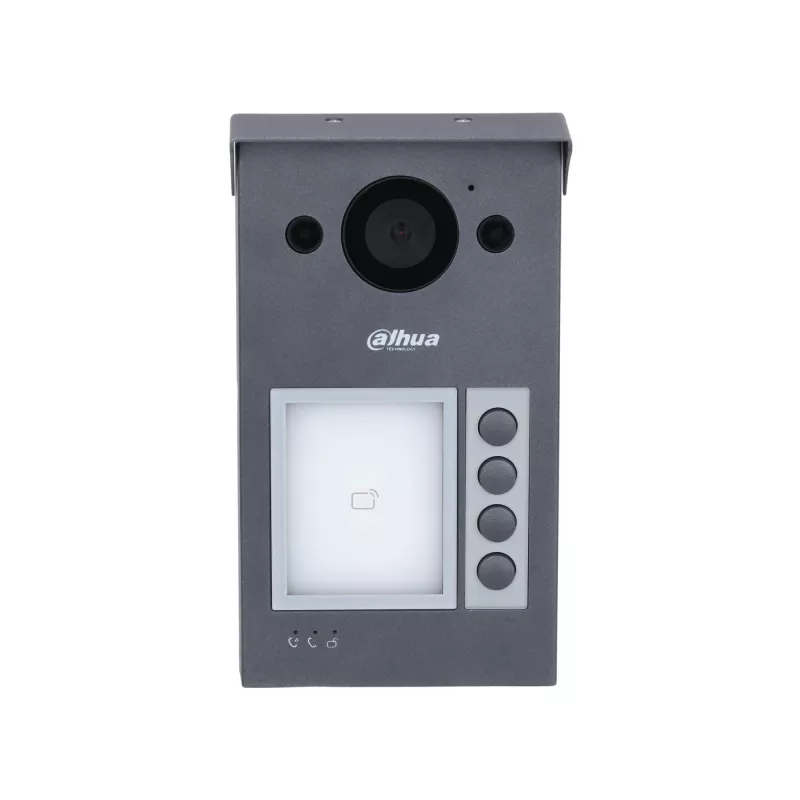

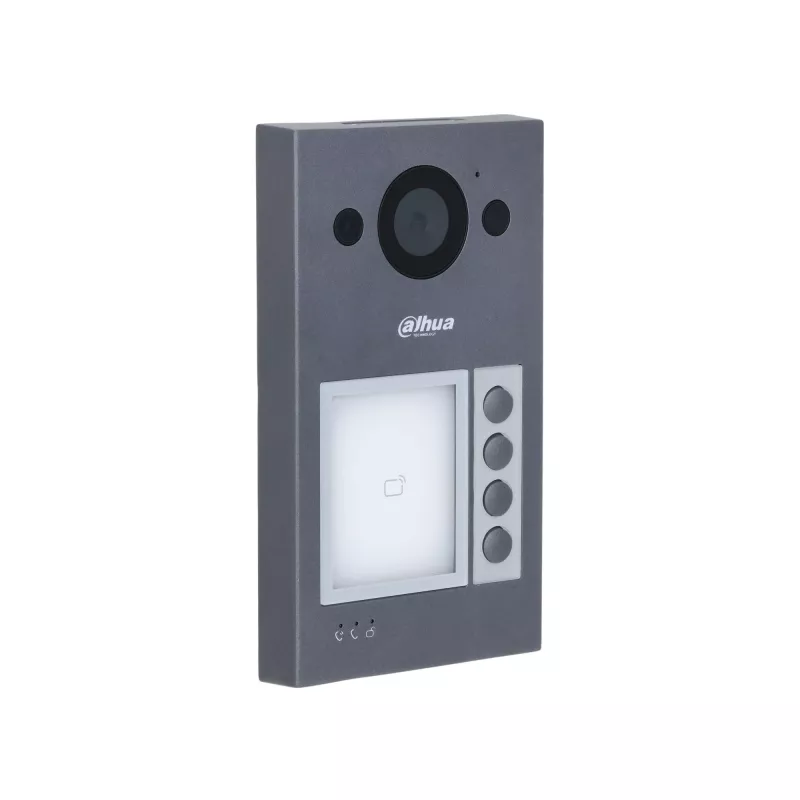

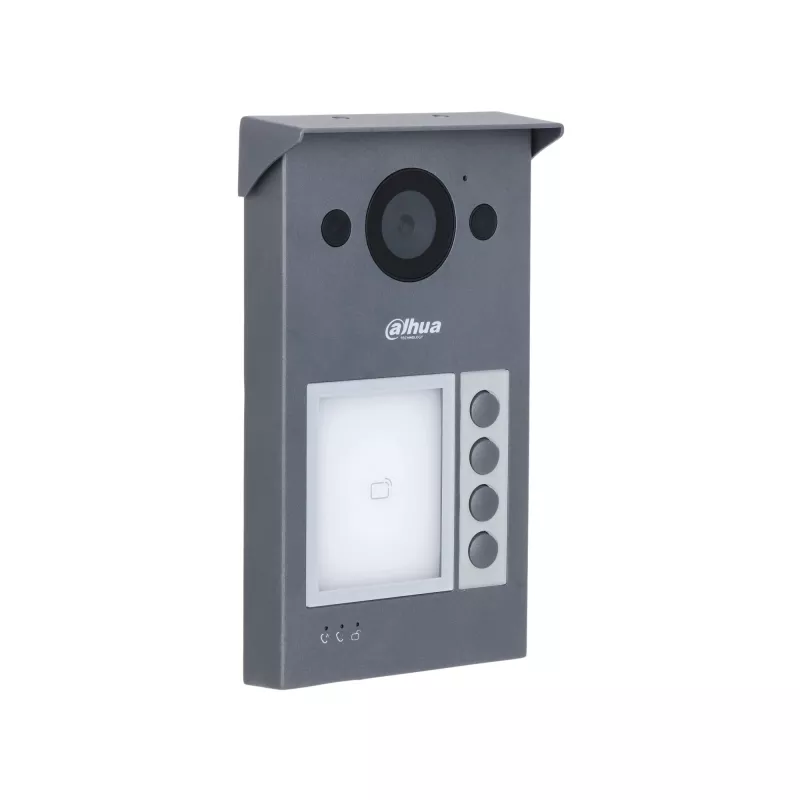

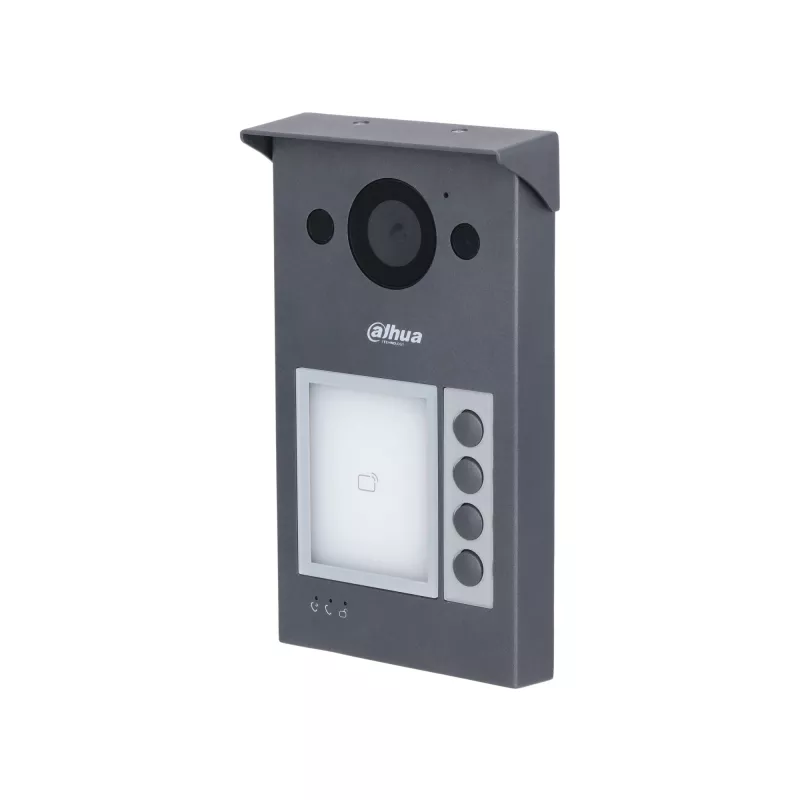

Videoportero DAHUA VTO3312Q-P 2 MP, H.264/H.265, IP65, IK08, visión nocturna IR

The Dahua Technology VTO3312Q-P is a 2 MP video intercom designed for secure communication and monitoring in residential and commercial settings. It supports H.264 and H.265 video compression, offers 720p and 1080p video modes, and includes a CMOS sensor with IR LED for low-light and night-time visibility. The unit is built to withstand outdoor conditions with an IP65 weather-resistance rating and IK08 impact protection. It operates from a 48 VDC supply and is specified to work within an ambient temperature range of -40 °C to +60 °C.

Advantages

The device combines dual video compression formats (H.264 and H.265) to provide flexible bandwidth and storage options while maintaining image quality. Its CMOS sensor with IR LED ensures clear imaging in various lighting conditions. The IP65 and IK08 ratings deliver protection against dust, water jets and mechanical impact, suitable for outdoor installations. Support for both 720p and 1080p modes allows compatibility with different monitoring systems and network capacities.

Suitable for

• Residential building entry control and visitor identification
• Commercial premises access control and perimeter monitoring
• Outdoor installations requiring weather- and impact-resistant intercoms

Key specifications

• Image sensor: CMOS
• Resolution: 2 MP; supports 720p and 1080p modes
• Video compression: H.264, H.265
• Night vision: IR LED
• Environmental protection: IP65 (dust and water jets)
• Impact protection: IK08
• Power: 48 VDC, 1 A
• Operating temperature range: -40 °C to +60 °C

How to use

Install the VTO3312Q-P on a stable surface exposed to the monitored area, following local electrical and mounting regulations. Connect the unit to a compatible power source (48 VDC) and network according to the Dahua installation guidelines. Configure video mode (720p or 1080p) and compression settings (H.264/H.265) through the device interface or management software, and adjust IR and camera orientation for optimal coverage. Test audio and video communication, and verify weatherproof seals after installation.

Recommendations

For reliable long-term operation, ensure the unit is mounted where direct exposure to heavy water jets is minimized despite its IP65 rating, and perform periodic inspections of seals and mounting hardware. Use H.265 where network bandwidth or storage is constrained and H.264 if compatibility with older recorders is required.
