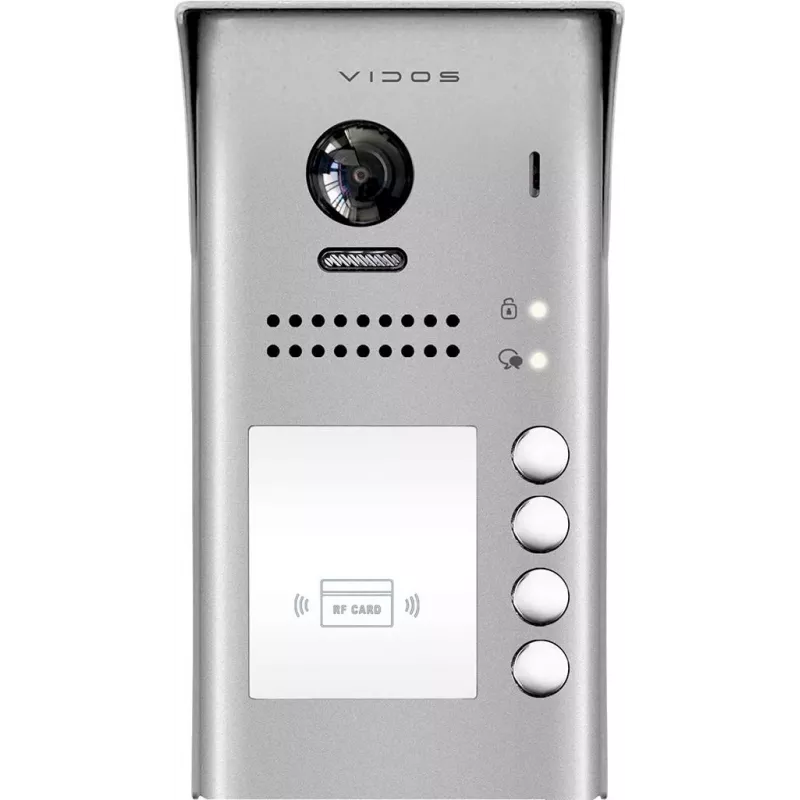

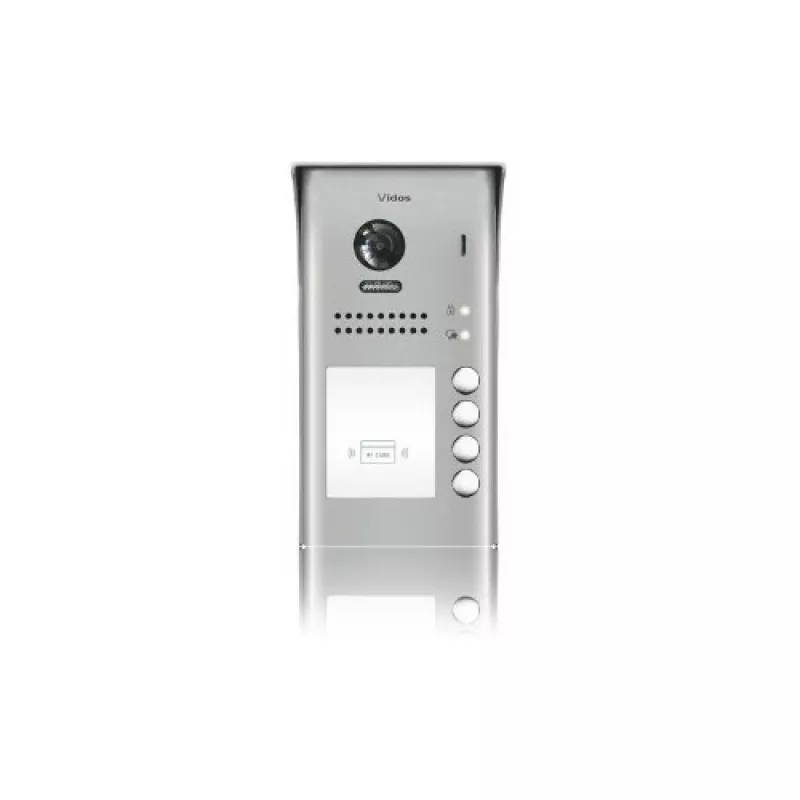

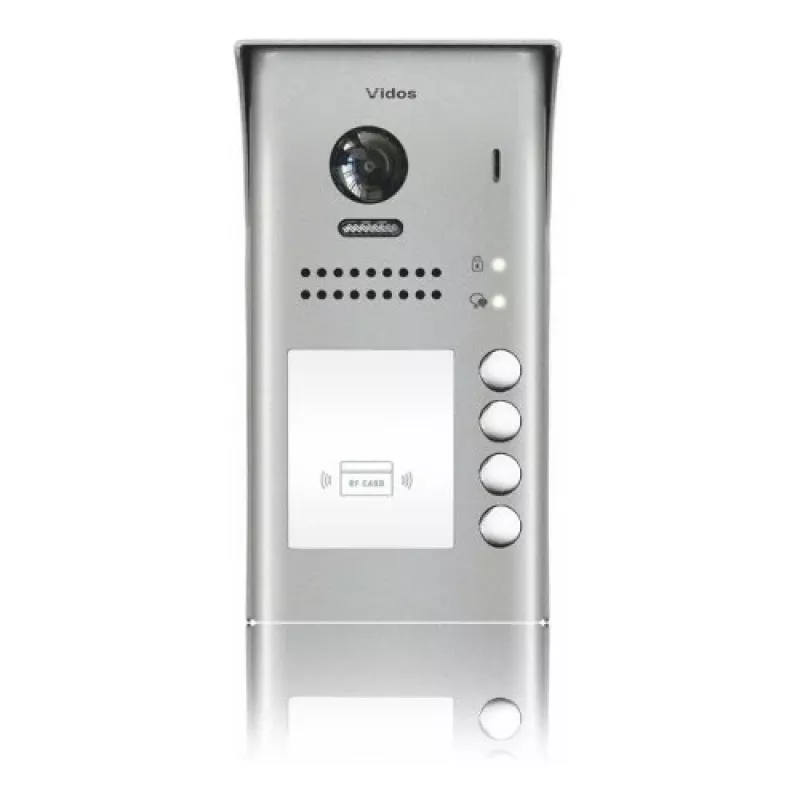

VIDOS Duo S1104A Placa de calle para cuatro viviendas, acero inoxidable, montaje en superficie, 2 hilos, IP65

The VIDOS Duo S1104A is a four-family gate station with a vandal-resistant aluminium alloy housing and surface mount installation. It features a built-in RFID proximity reader in the UNIQUE 125kHz standard, a 600TVL camera with a 105° lens, and a backlit information sign with adjustable brightness.

Key features

• Vandal-resistant aluminium alloy housing
• Surface mount installation
• 600TVL camera with 105° lens
• Built-in RFID proximity reader in UNIQUE 125kHz standard
• MASTER key fobs included for programming RFID users
• Backlit information sign with adjustable brightness
• Zoom function
• Night LED backlight
• Maximum 320 programmable tags
• User addition and removal via MASTER key fobs

Specifications

• Brand: Vidos
• Model: S1104A
• Power supply: 24V DC
• Electric strike power supply: 12V DC max. 300mA
• Power consumption: 0.8W standby / 3W operation
• Relay outputs: 1 or 2 with B5 module
• Wiring: 2 wires without polarity
• Camera type: CMOS 1/2.7" fisheye
• Resolution: 600TVL
• Max. relay contact load: 3A
• Viewing angle: lens 105° / width
• Mounting method: surface mount
• Operating temperature range: -20°C ~ +55°C
• Protection degree: IP54
• External dimensions: 176 x 90 x 27mm
