VIDOS DUO S1301D placa de calle - videoportero exterior de 2 hilos con cámara de 2,0 MP, objetivo gran angular de 170°, visión nocturna IR, acero inoxidable, plata

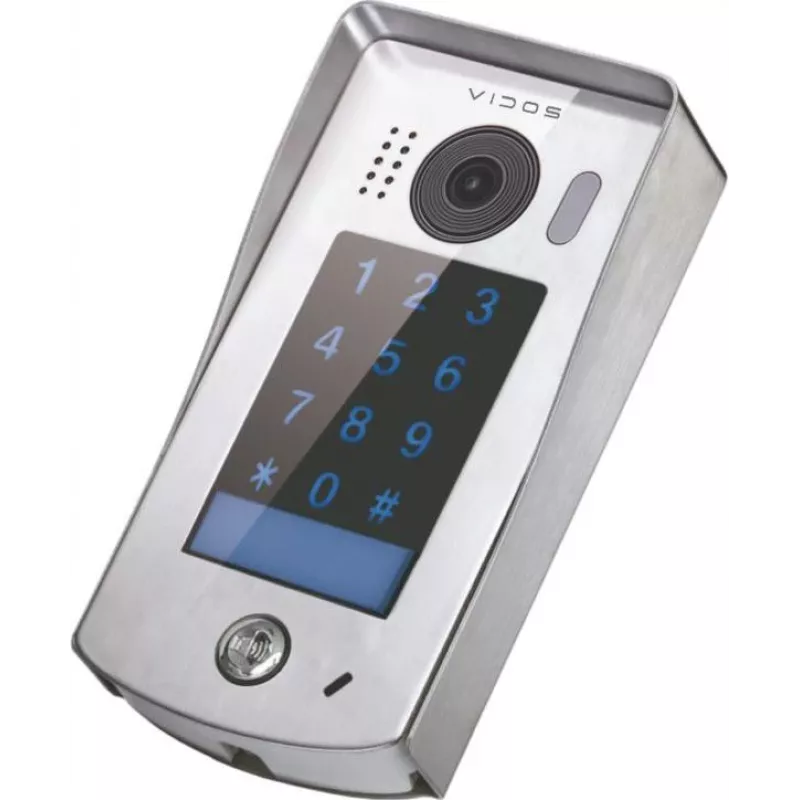

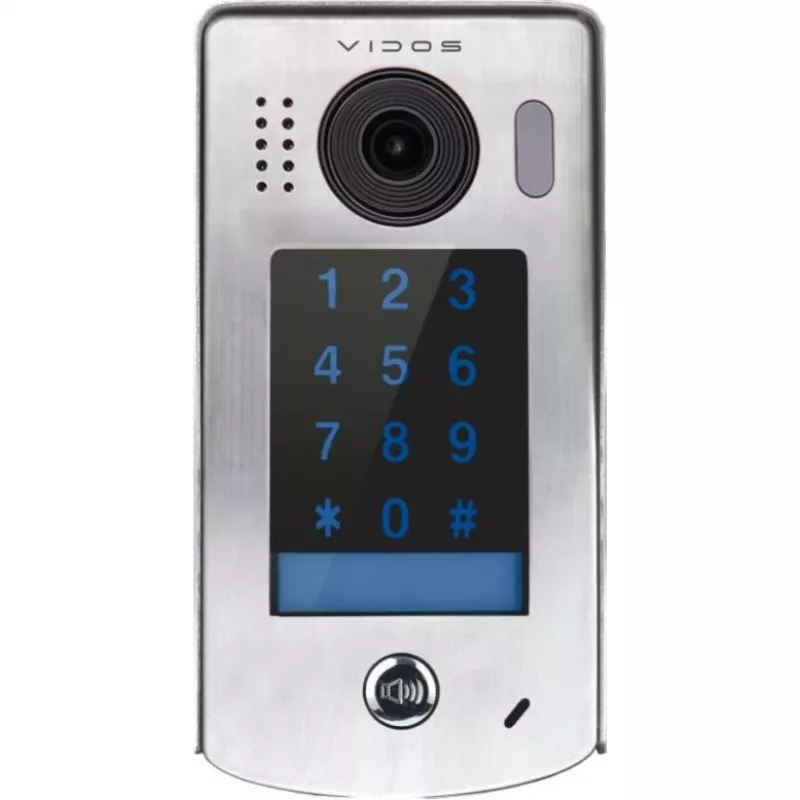

The VIDOS DUO S1301D is a single-subscriber gate station with a built-in code lock and touch keypad for entry via code. It features a vandal-resistant brushed stainless steel front panel and a 2.0 MP camera with a 170° wide-angle lens.

Key features

• Vandal-resistant stainless steel housing
• Surface-mounted installation
• 2.0 MP camera with 170° lens angle
• Built-in code lock with touch keypad
• Illuminated nameplate
• Touch numeric keypad with RGB backlight (color adjustable during call, conversation, and entry)
• LED night illumination

Specifications

• Brand: Vidos
• MPN: S1301D
• Power supply: 24V DC
• Electric strike power supply: 12V DC max. 250mA
• Power consumption: 0.96W standby / 3.84W operation
• Relay outputs: 1 or 2 with B5 module
• Video signal parameters: 1Vp-p 75 ohm CCIR
• Maximum relay contact load: 6A
• Resolution: 2.0Mpix
• Lens angle: 170°
• Mounting: surface-mounted
• Operating temperature range: -18°C ~ +55°C
• Protection rating: IP54
• External dimensions: 182 x 93 x 44mm
