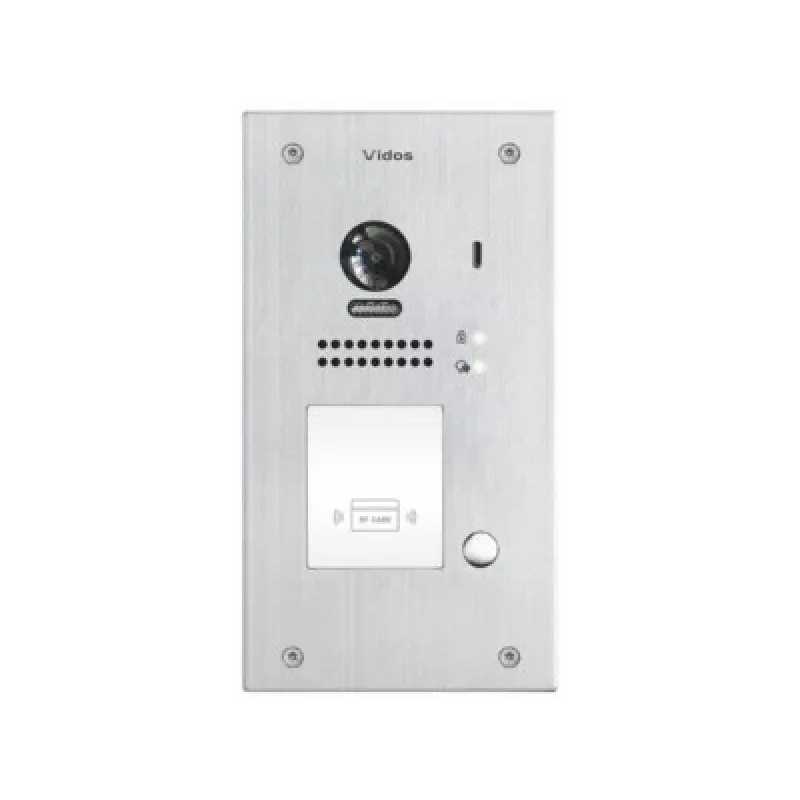

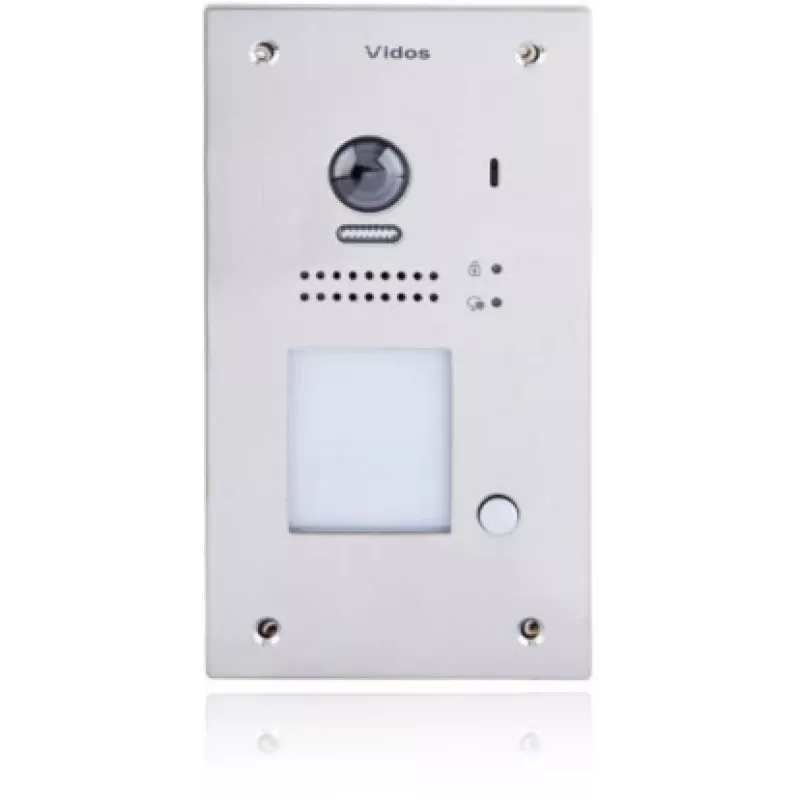

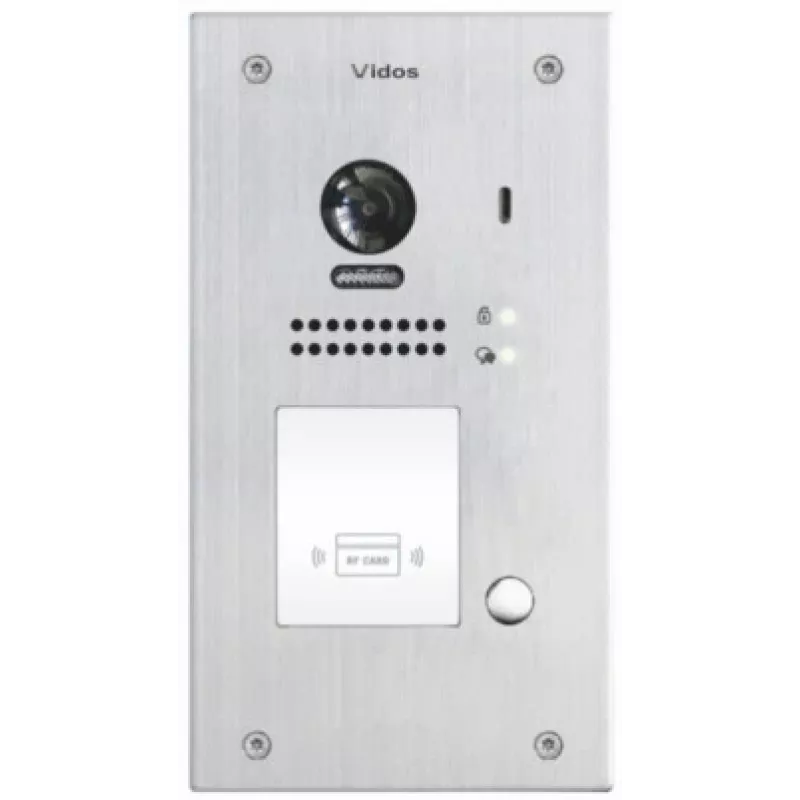

VIDOS DUO S1201A Videoportero 2 hilos con RFID, Full HD 1080p, plata/gris oscuro

The VIDOS DUO S1201A is a professional 2-wire video door station designed for residential and commercial access control. Featuring a 2.0 MP Full HD camera with a 170° horizontal viewing angle, built-in RFID reader (Mifare 13.56 MHz), and two relay outputs for main gate and auxiliary control, it offers reliable security and convenience. The surface-mount unit boasts an aluminum alloy front panel with IP65 and IK07 protection ratings, ensuring durability against weather and vandalism. With IR and white LED night vision, illuminated call button and name tag, and two-way audio with adjustable volume, the S1201A provides clear communication day or night. Powered by DC 24V from the system power supply, it supports RS485 for module expansion and operates in temperatures from -30°C to +50°C.

Advantages

High-resolution 1080p video with wide 170° angle ensures comprehensive monitoring. Integrated RFID access control eliminates the need for keys or codes. Robust IP65/IK07 construction guarantees long-lasting performance in harsh environments. Two relay outputs allow separate control of main gate and auxiliary devices like lights or locks. Easy surface mounting simplifies installation.

Suitable for

• Single-family homes
• Apartment buildings
• Office entrances
• Gated communities
• Industrial facilities

Key specifications

• System Type: 2-Wire VIDOS DUO
• Camera Resolution: 2.0 Mpix Full HD (1080p)
• Viewing Angle: 170° Horizontal
• Night Vision: IR LEDs + White LED Illumination
• Access Control: Built-in RFID Reader (Mifare 13.56MHz)
• Number of Call Buttons: 1
• Relay Outputs: 2 (1x Main Gate, 1x Auxiliary)
• Mounting Type: Surface Mount
• Protection Rating: IP65, IK07
• Housing Material: Aluminum Alloy Front Panel
• Power Supply: DC 24V (from system power supply)
• Operating Temperature: -30°C to +50°C
• Audio Features: Two-way audio, adjustable microphone and speaker volume
• Illumination: Illuminated Call Button & Name Tag
• Connectivity: RS485 for module expansion
• Color: Silver/Dark Grey

Recommendations

For optimal performance, pair the S1201A with a compatible VIDOS DUO indoor monitor and a 24V DC power supply. Ensure proper wiring and follow installation guidelines for best results.
