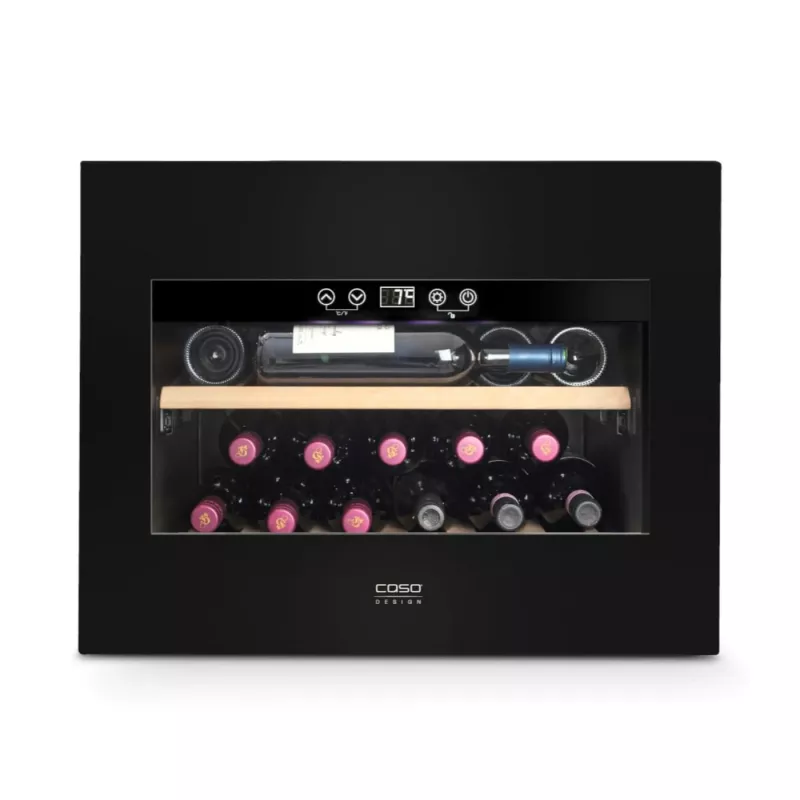

Vinoteca integrable Caso WineDeluxe E 18 — 18 botellas, altura 46 cm, negra, clase energética G

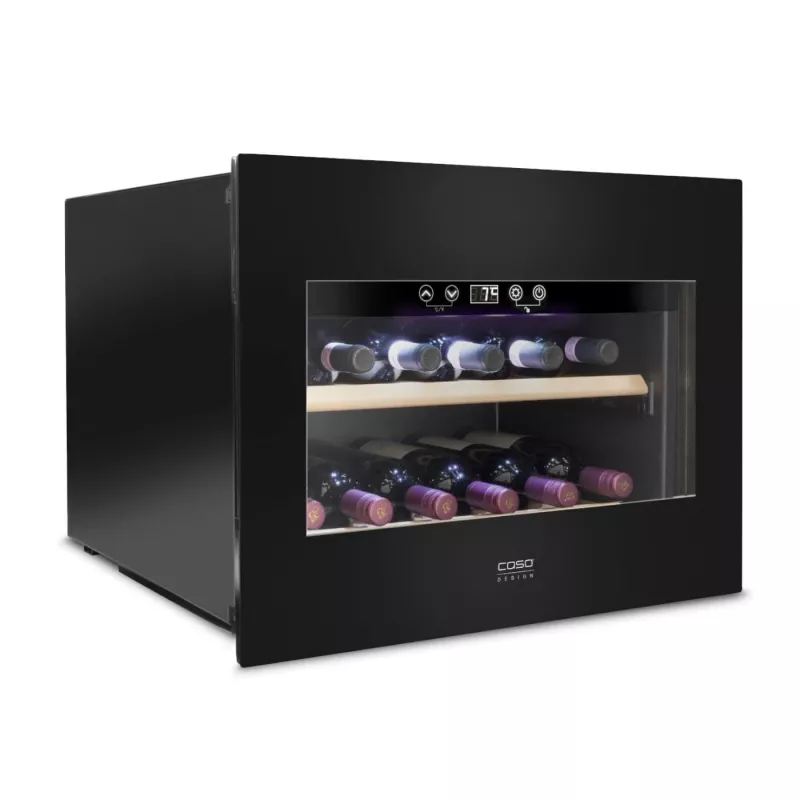

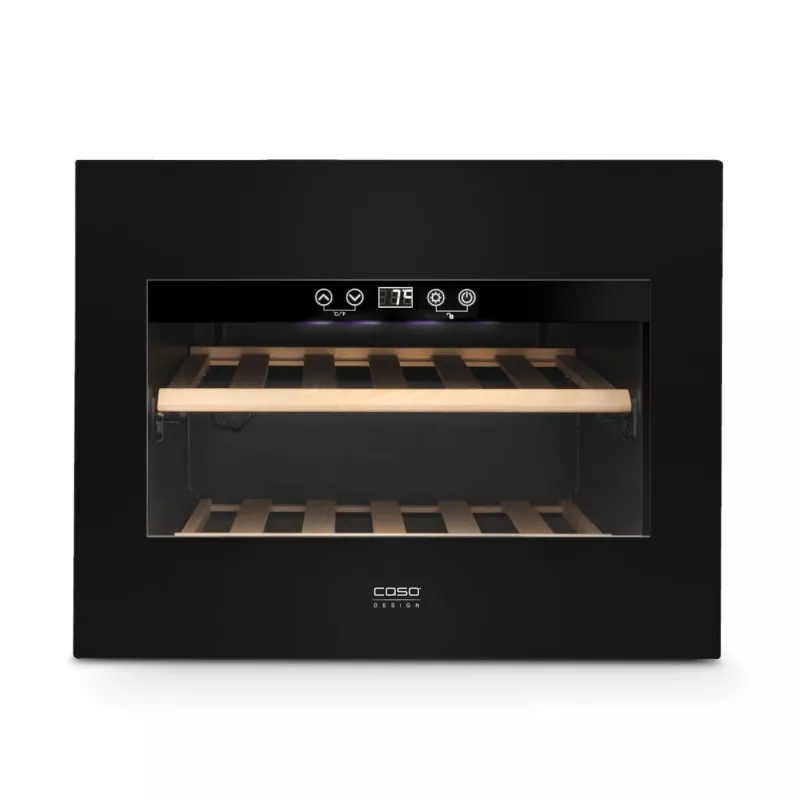

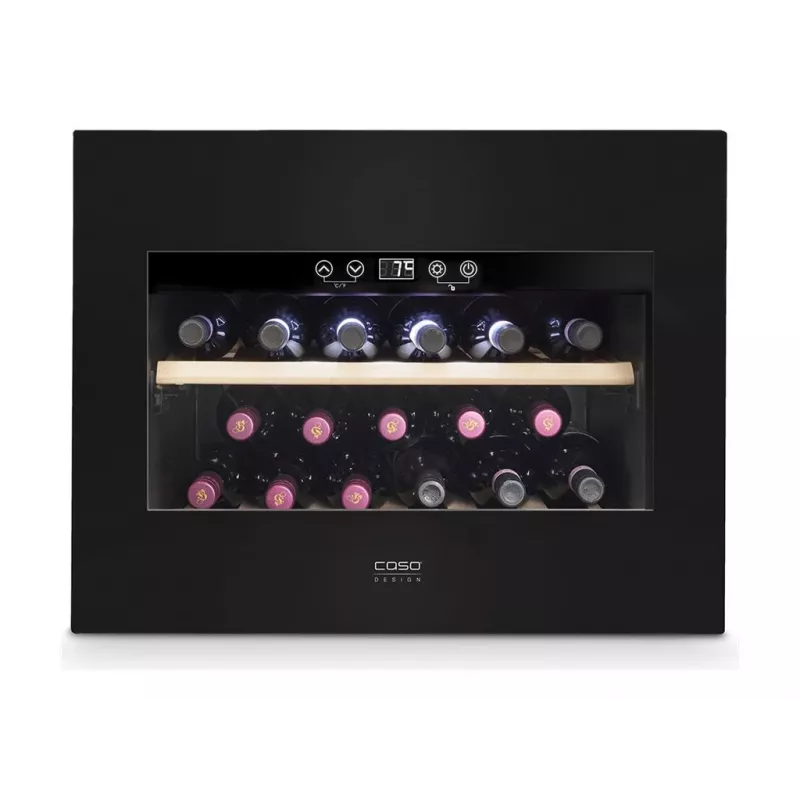

The Caso WineDeluxe E 18 built-in wine cooler stores up to 18 standard 0.75 L bottles in a compact 46 cm high unit designed for integration into kitchen cabinetry. This compressor-based wine cooler offers a single adjustable temperature zone (5–20 °C), an internal LED temperature display and sensor-touch controls for precise setting. The black glass door with soft-close and push-to-open mechanisms, two removable wooden shelves on ball bearings and switchable interior lighting combine to provide controlled storage and elegant presentation of wines.

Advantages

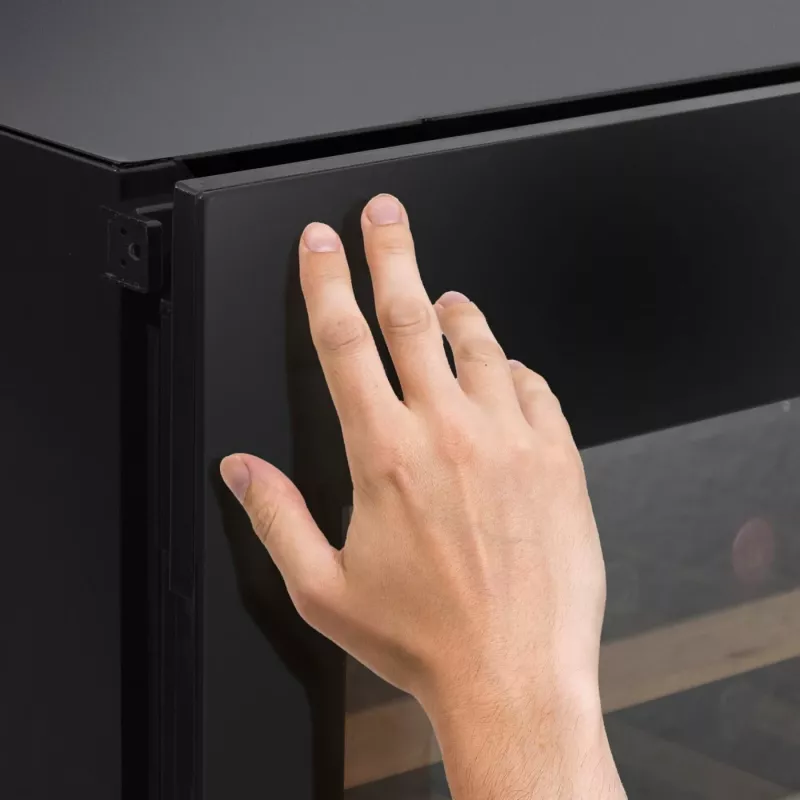

The appliance uses a compressor cooling system for stable temperature control across the 5–20 °C range suitable for both red and white wines. Its built-in design saves space while the reversible glass door (opens to the right by default) with soft-closing and push-to-open features ensures convenient access. Wooden slide-out shelves on ball bearings facilitate bottle handling and the inside LED temperature display with electronic sensor-touch control simplifies monitoring and adjustment.

Suitable for

• Home kitchens with built-in cabinetry
• Small restaurants or bars needing compact wine storage
• Collectors seeking space-saving, single-zone storage for mixed wine types

Key specifications

• Manufacturer: Caso
• Model: 7710 (WineDeluxe E 18)
• Capacity: 18 standard 0.75 L bottles (total capacity 40 L)
• Dimensions (W×H×D): 59.5 × 46 × 57.5 cm
• Temperature range: 5–20 °C (1 temperature zone)
• Cooling method: compressor
• Installation: built-in

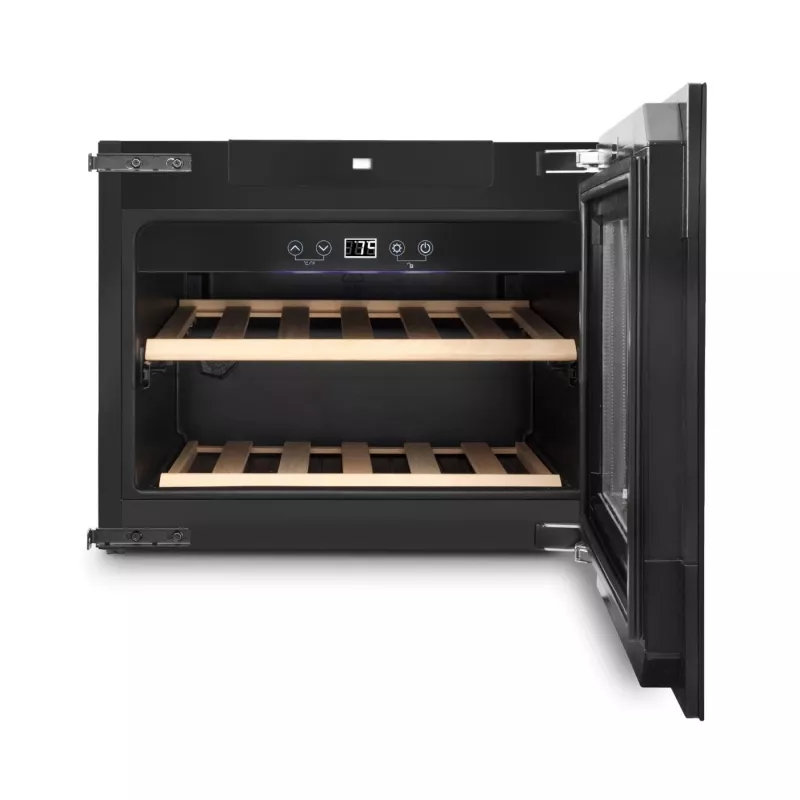

• Door: glass door, reversible (opens to the right)

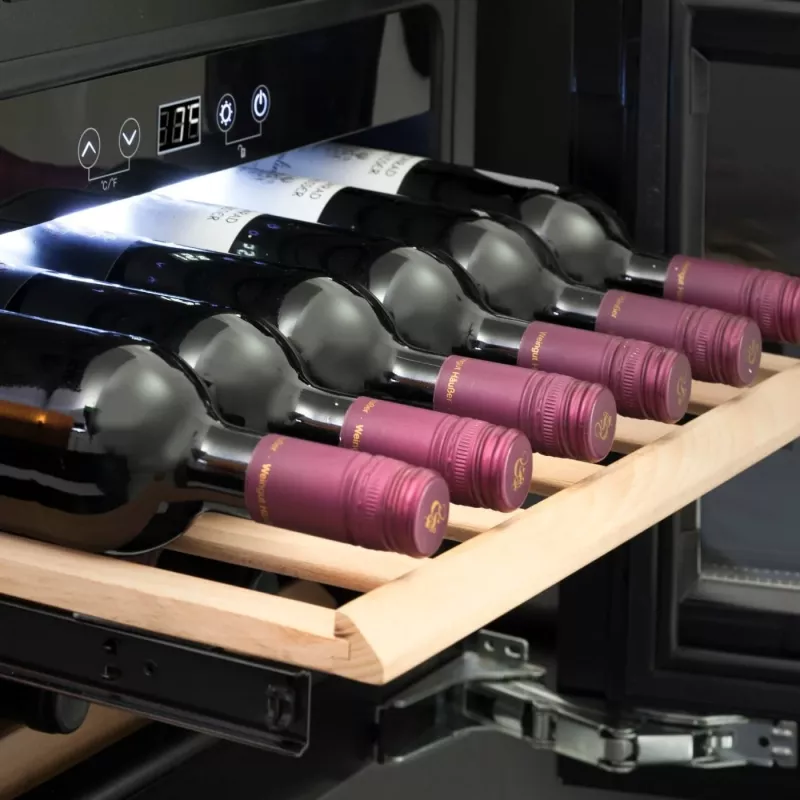

• Shelves: 2 removable wooden shelves on ball bearings
• Display & control: internal LED temperature display, sensor-touch electronic control
• Interior lighting: switchable (white)
• Defrosting: manual
• Noise level: 40 dB

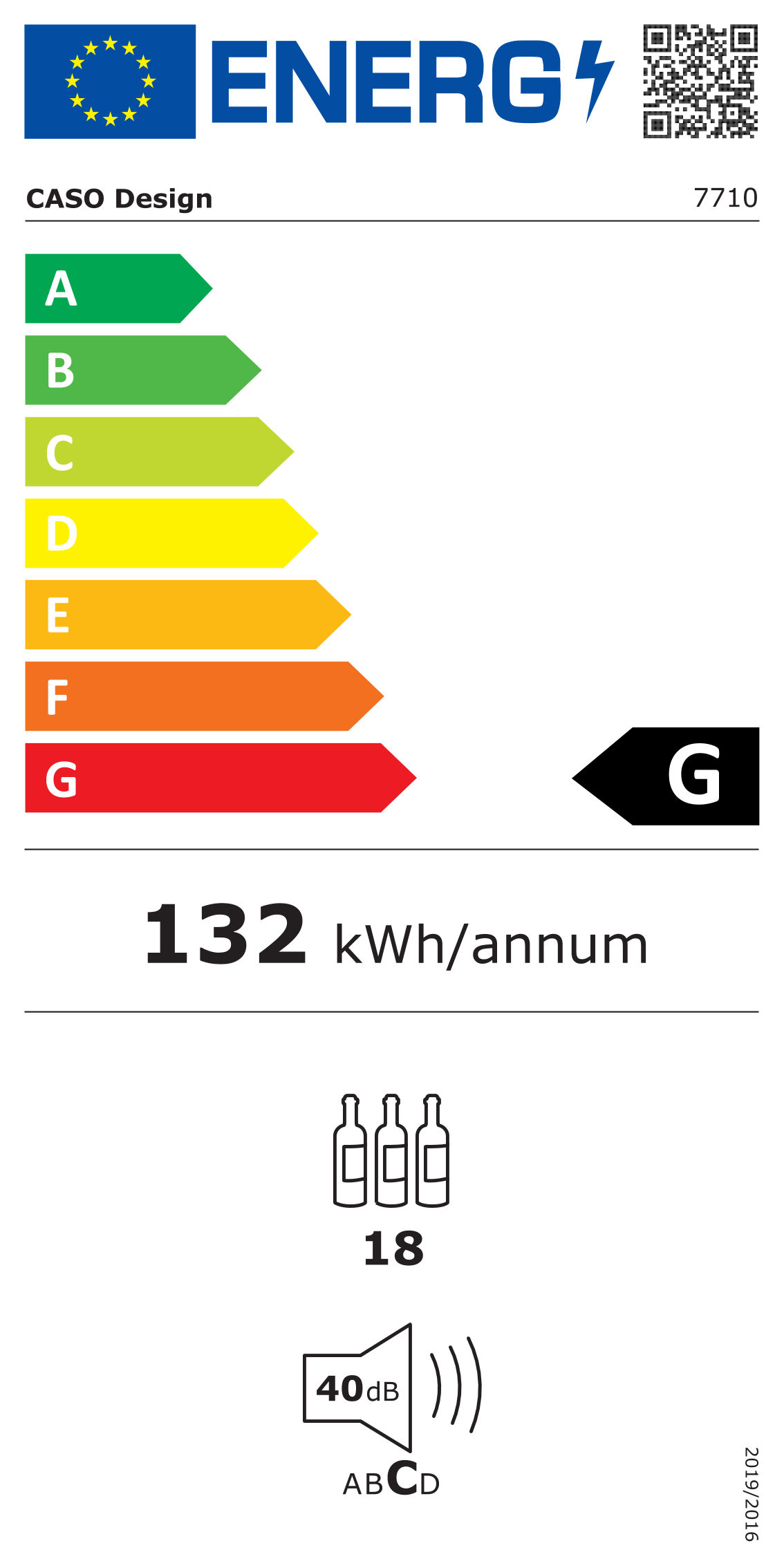

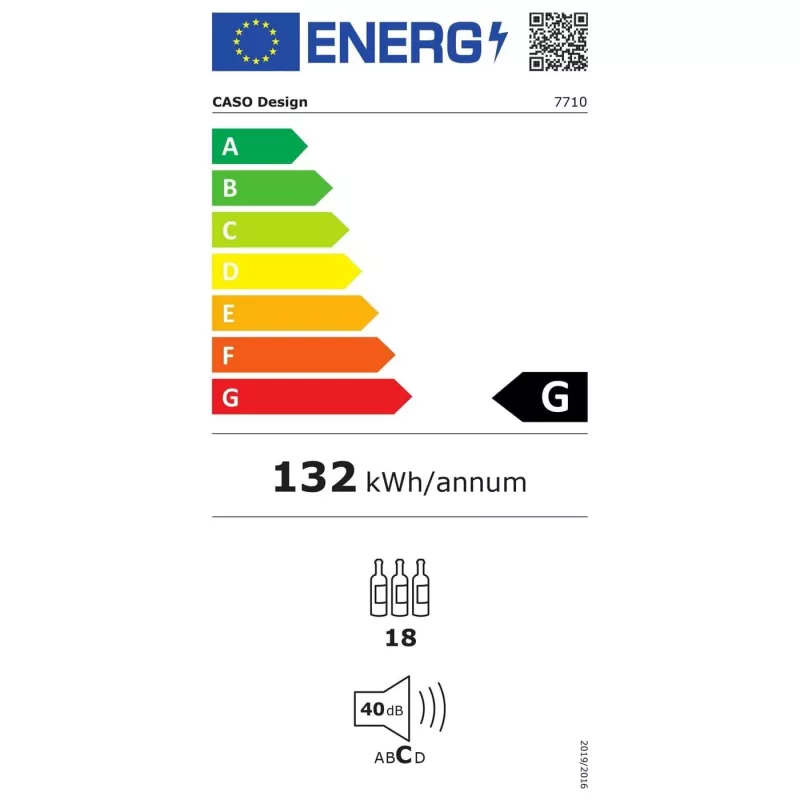

• Energy class: G, annual energy consumption 132 kWh
• Climatic class: ST
• Airborne acoustical noise emission rating: C

How to use

Install the WineDeluxe E 18 into a suitable built-in cabinet opening following the manufacturer’s installation requirements and allow proper ventilation clearances. Place bottles horizontally on the wooden shelves, sliding shelves out as needed on their ball-bearing runners. Use the sensor-touch control to set the target temperature within 5–20 °C; monitor the internal LED display for the current temperature. Switch interior lighting on or off as required. For defrosting, follow the manual defrost procedure described in the user manual.

Recommendations

Maintain ambient conditions within the appliance’s climatic class (ST), avoid direct sunlight on the door and do not overload shelves beyond their rated capacity. Allow wines to stabilise at the set temperature before serving and perform regular manual defrosting and cleaning per the user manual to ensure optimal performance.
