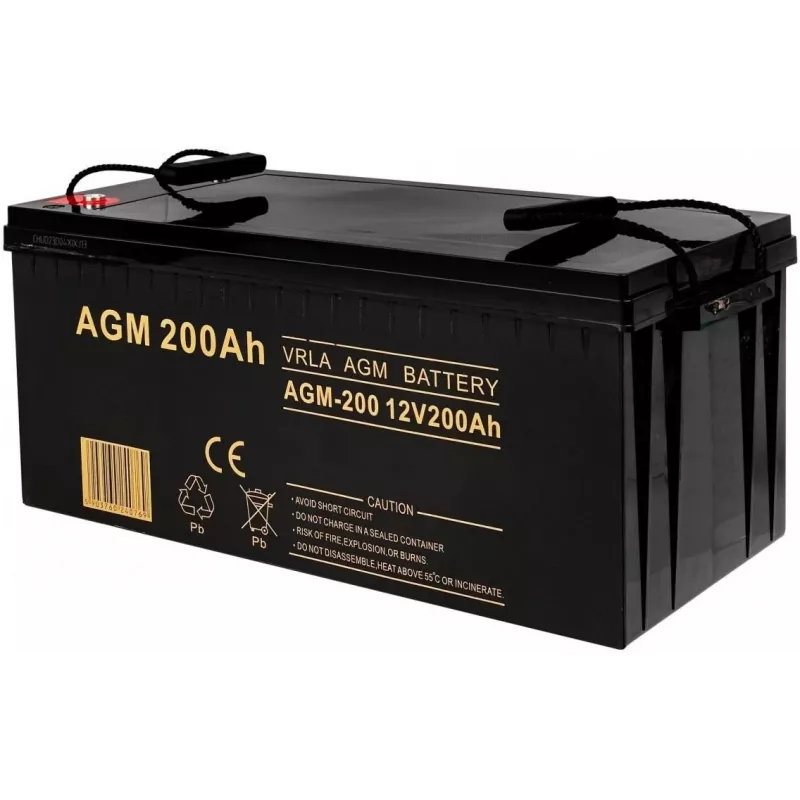

Volt Polska AGM 12V batería

The Volt Polska AGM 12V Battery (model 6AKUXAG200) is a 12V AGM battery with a nominal capacity of 200Ah. It requires no electrolyte top-up and can be operated in any position.

Key features

• AGM technology
• Nominal voltage: 12V
• Nominal capacity: 200Ah
• No electrolyte top-up required
• Can be operated in any position
• Designed life: 3-5 years
• Maximum charging current: 50A
• Intended for emergency power systems (UPS, inverters), alarm systems, photovoltaic installations, access control systems, cash register power supply, industrial television systems, electric toy power supply, telecommunications systems, backup lighting systems, medical equipment power supply, scooter and moped power supply

Specifications

• Model: 6AKUXAG200
• Brand: Volt
• Nominal voltage: 12V
• Nominal capacity: 200Ah
• Total height: 226mm
• Height: 220mm
• Width: 238mm
• Length: 522mm
• Weight: 49kg
• Internal resistance (at 25°C): 3.2mΩ
• Capacity at 40°C: 102%
• Capacity at 25°C: 100%
• Capacity at 0°C: 85%
• Capacity at -15°C: 65%
• Self-discharge (at 25°C) after 3 months: 91% of nominal capacity
• Self-discharge (at 25°C) after 6 months: 82% of nominal capacity
• Self-discharge (at 25°C) after 12 months: 64% of nominal capacity
• Recommended operating temperature: 25°C ±3°C
• Operating temperature range – discharge: -15°C to 50°C
• Operating temperature range – charge: -10°C to 50°C
• Operating temperature range – storage: -20°C to 50°C
• Float charging voltage (at 25°C): 13.5VDC–13.8VDC
• Cycle charging voltage (at 25°C): 14.4VDC–14.7VDC
• Maximum charging current: 50A
• Maximum discharge current: 1750A
• Designed life (at 25°C): 3-5 years
