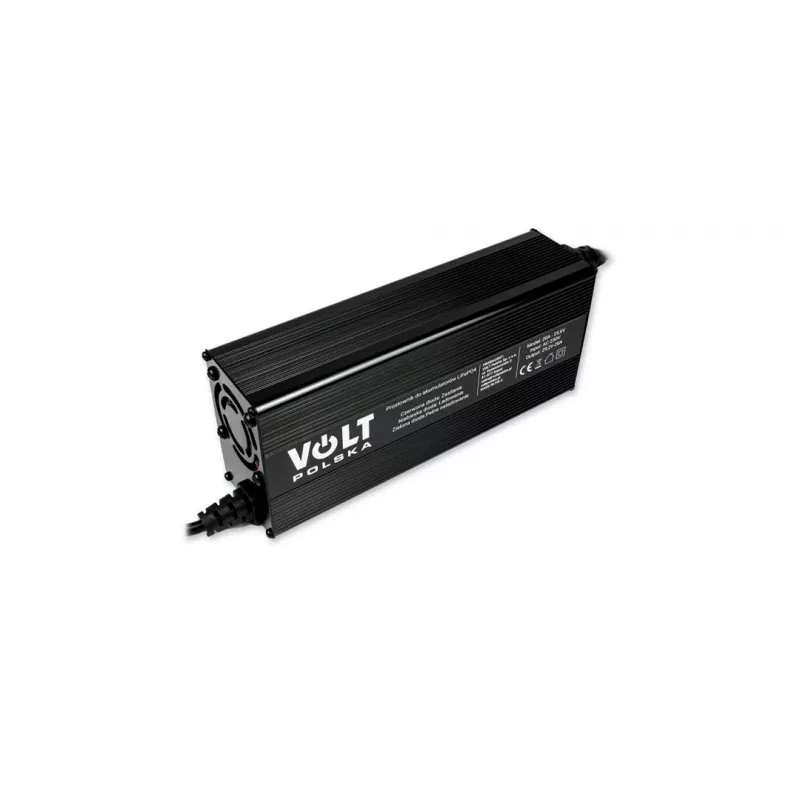

VOLT POLSKA cargador para baterías LiFePO4 de 24V 20A

The VOLT POLSKA Charger for 24V LiFePO4 20A Batteries is a high-performance, intelligent charger designed specifically for 24V LiFePO4 battery packs. With a maximum charging current of 20A and CC/CV charging mode, it ensures fast, safe, and efficient charging for your LiFePO4 batteries. The charger features an aluminum alloy housing, active cooling fan, and multiple protection features for reliable operation.

Advantages

This charger offers a perfect match for 24V LiFePO4 batteries (8S configuration), delivering a maximum charging voltage of 29.2V DC. Its constant current/constant voltage (CC/CV) charging algorithm optimizes battery life and performance. The built-in protections against over-voltage, over-current, short-circuit, reverse polarity, and over-temperature provide peace of mind during charging. The LED indicator clearly shows charging status (red for charging, green for fully charged/standby).

Suitable for

• 24V LiFePO4 battery packs (8S)
• Electric vehicles, solar energy storage, UPS systems, and other applications requiring reliable LiFePO4 charging

Key specifications

• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Battery Voltage: 24V
• Number of Cells: 8S
• Maximum Charging Voltage: 29.2V DC
• Maximum Charging Current: 20A
• Input Voltage: 100-240V AC, 50/60 Hz
• Charging Mode: CC/CV
• Output Connector: XLR 3-Pin Male
• AC Input Connector: IEC C14
• Protection: Over-voltage, Over-current, Short-circuit, Reverse Polarity, Over-temperature
• Cooling: Active (Integrated Fan)
• Efficiency: >85%
• LED Indicator: Red (Charging), Green (Fully Charged/Standby)
• Housing Material: Aluminum Alloy
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 85°C
• Certifications: CE, RoHS
• Power Output: 584W
• Output Cable Length: 1.2m

Recommendations

For optimal performance and safety, use this charger exclusively with 24V LiFePO4 batteries. Ensure proper ventilation during charging due to active cooling. The charger is not suitable for other battery chemistries such as lead-acid or standard lithium-ion.
