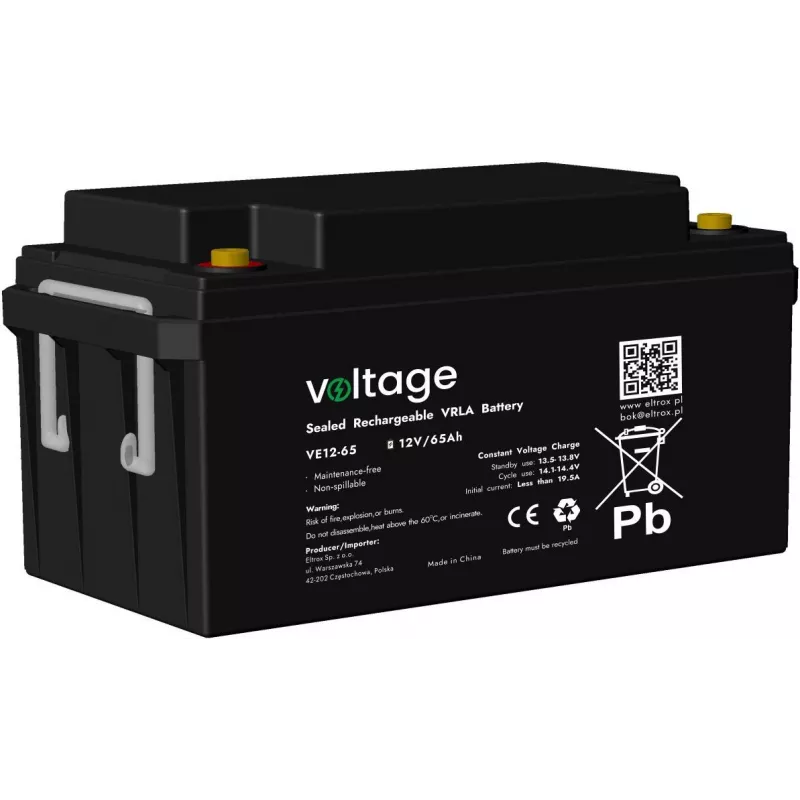

VOLTAGE Batería AGM 12V 65Ah VE12-65

The VOLTAGE VE12-65 is a high-performance AGM VRLA battery designed for reliable backup power and cyclic applications. With a nominal voltage of 12V and a capacity of 65Ah (C20), it delivers consistent power for UPS systems, solar installations, alarm systems, telecommunications, and emergency lighting. Its absorbed glass mat technology ensures maintenance-free operation, low self-discharge, and excellent deep discharge recovery.

Advantages

This battery offers a long design life of 10-12 years, high discharge current capability up to 650A (5s), and a wide operating temperature range. The AGM construction provides spill-proof safety and vibration resistance, making it suitable for both stationary and mobile applications.

Suitable for

• Uninterruptible Power Supplies (UPS)
• Solar energy storage systems
• Alarm and security systems
• Telecommunication equipment
• Emergency lighting

Key specifications

• Battery Type: AGM VRLA
• Nominal Voltage: 12V
• Capacity (C20): 65Ah
• Design Life: 10-12 years
• Terminal Type: T11 (M6 bolt and nut)
• Internal Resistance: Approx. 5.5 mΩ
• Max Discharge Current (5s): 650A
• Max Charge Current: 19.5A
• Float Charge Voltage: 13.5V - 13.8V
• Cycle Charge Voltage: 14.4V - 15.0V
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): -10°C to 60°C
• Self-Discharge: <3% per month at 25°C
• Container Material: ABS

Recommendations

For optimal performance and longevity, use a compatible charger with appropriate voltage settings. Store in a cool, dry place. Always follow manufacturer guidelines for installation and maintenance.
