VOLTAGE Fuente de alimentación conmutada de sobremesa 12V 7.5A 90W 5.5mm/2.1mm CCTV

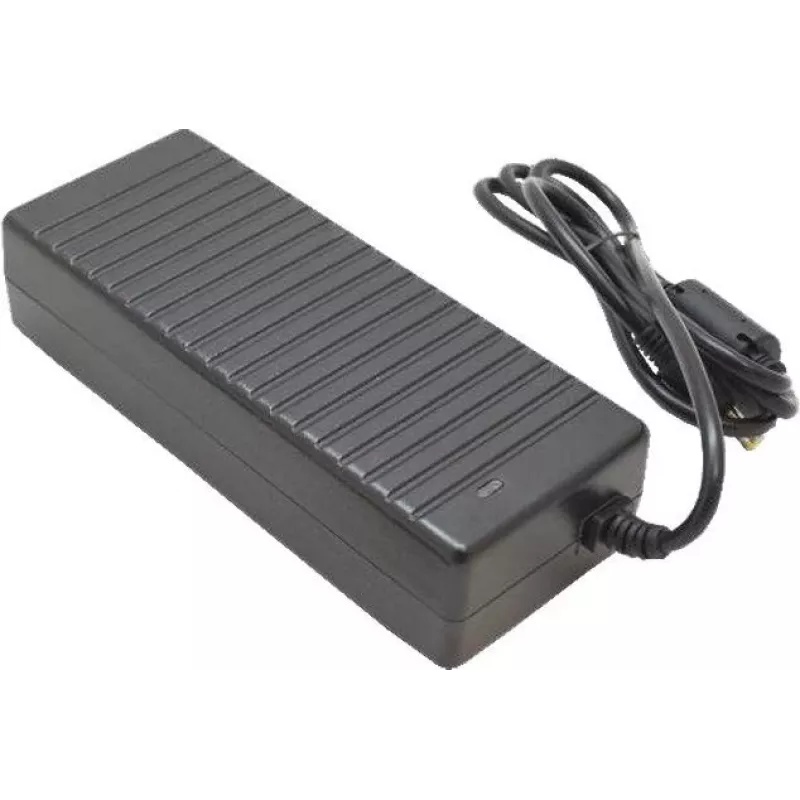

The VOLTAGE VED12075 is a high-performance desktop switching power supply designed for CCTV systems, security cameras, DVRs, LED strips, and general electronics. With a robust 12V DC output at 7.5A (90W), it ensures reliable power delivery for your devices. The power supply features a standard 5.5mm/2.1mm barrel plug with center positive polarity, making it compatible with a wide range of equipment. Its fanless, passive cooling design guarantees silent operation and long-term durability.

Advantages

This power supply offers multiple protection features including overload, overvoltage, and short circuit protection, safeguarding your connected devices. With an efficiency greater than 80%, it reduces energy waste and heat generation. The compact desktop form factor saves space and allows easy installation. CE and RoHS certifications ensure compliance with European safety and environmental standards.

Suitable for

• CCTV cameras and security systems
• Digital video recorders (DVRs)
• LED strip lighting
• General electronics requiring 12V DC power

Key specifications

• Brand: VOLTAGE
• Model: VED12075
• Power Supply Type: Switching (SMPS)
• Form Factor: Desktop
• Input Voltage: 100-240V AC, 50/60 Hz
• AC Input Connector: IEC C14 (requires C13 power cord)
• Output Voltage: 12V DC
• Output Current: 7.5 A
• Output Power: 90 W
• DC Connector: Barrel plug, 5.5mm outer diameter, 2.1mm inner diameter, center positive
• Protections: Overload, overvoltage, short circuit
• Efficiency: >80%
• Cooling: Passive (fanless)
• Operating Temperature: 0°C to 40°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use a high-quality C13 power cord (not included). Ensure the total current draw of connected devices does not exceed 7.5A. This power supply is ideal for indoor use only.
