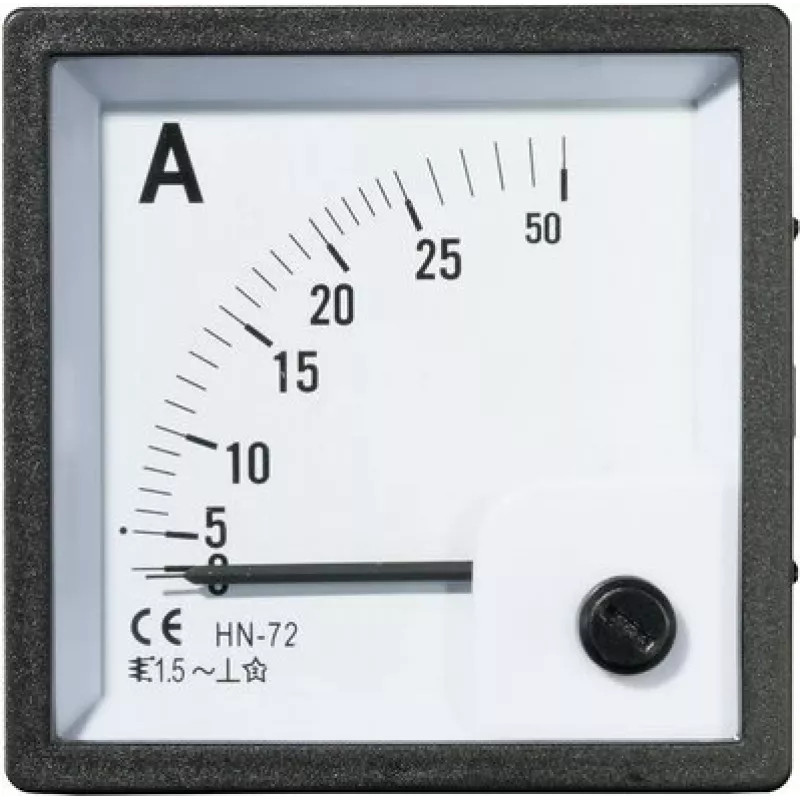

VOLTCRAFT AM-72X72/25A instrumento de medición analógico para montaje, hierro móvil, 0-25 A AC, 72x72 mm, clase 1.5

With a moving iron movement and a 0–25 A AC measurement range, the VOLTCRAFT AM-72X72/25A analog panel meter delivers reliable current monitoring in a compact 72 x 72 mm format. Its Class 1.5 accuracy and wide frequency response from 15 to 100 Hz make it suitable for industrial control panels, switchgear, and power distribution systems. The meter features a white scale with black markings and a black bezel, ensuring clear readability. Screw terminals provide secure connections, and the front panel is rated IP52 for protection against dust and dripping water. Conforming to EN 60051, this instrument is built for continuous duty with an overload capacity of 1.2 times the rated current, and it withstands short-term overloads up to 10 times for 5 seconds.

Overview

The AM-72X72/25A is a moving iron analog ammeter designed for measuring alternating current. It requires a panel cutout of 68 x 68 mm and mounts securely with its 72 x 72 mm front bezel. The meter operates in temperatures from -25 to +55 °C, making it robust for various environments. The housing is made of durable plastic, and the device weighs approximately 0.2 kg.

What stands out

• Moving iron measuring principle for AC current
• Wide measurement range: 0–25 A
• Accuracy class 1.5 per EN 60051
• Front protection IP52
• Compact 72x72 mm standard size
• Overload capacity: 1.2x continuous, 10x for 5s

Technical details

• Measurement type: AC current
• Measuring principle: Moving iron
• Measurement range: 0–25 A
• Accuracy class: 1.5
• Panel cutout: 68 x 68 mm
• Front bezel dimensions: 72 x 72 mm
• Display: Analog scale, white with black markings
• Frequency range: 15–100 Hz
• Connection: Screw terminals
• Mounting: Panel mount
• Operating temperature: -25 to +55 °C
• Protection class (front): IP52
• Overload capacity (continuous): 1.2 x In
• Overload capacity (short-term): 10 x In for 5s
• Housing material: Plastic
• Standard compliance: EN 60051
• Bezel colour: Black

Our verdict

The VOLTCRAFT AM-72X72/25A is a dependable analog panel meter for AC current measurement. Its moving iron design offers inherent robustness, and the IP52 front protection adds durability. With standard dimensions and clear scale, it integrates easily into control panels. The wide frequency range and overload tolerance make it a solid choice for industrial applications.
