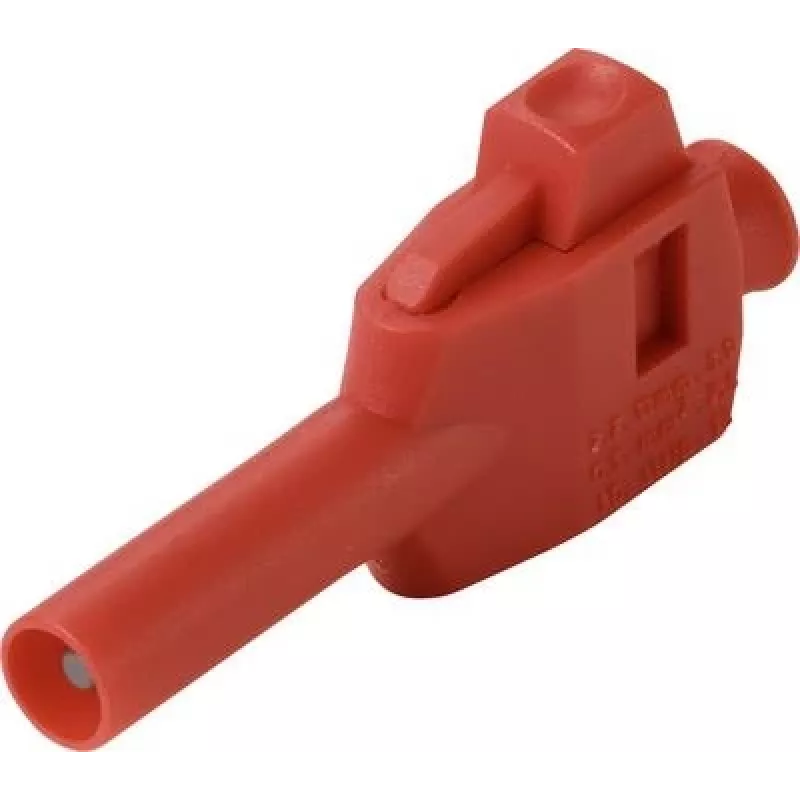

VOLTCRAFT MP-4 Conector de laboratorio con conexión de pinza, recto, pin de 4 mm, rojo, 1 ud. (VC-17195255)

In laboratory and test environments, unreliable connections can compromise measurements and pose safety risks. The VOLTCRAFT MP-4 Laboratory Plug with Clamp Connection provides a secure, solderless termination for test leads and cables, ensuring stable signal and power transmission. Its 4 mm banana plug design is compatible with standard laboratory sockets and equipment.

Who is it for

This plug is ideal for technicians, engineers, and hobbyists who need to assemble or repair test leads, patch cords, or measurement setups. It suits applications in electronics labs, educational institutions, and industrial testing where dependable connections are critical.

Main features

• 4 mm banana plug with straight orientation for easy insertion into standard sockets.
• Clamp connection allows quick, solderless assembly of wires up to 4 mm².
• Rated for 32 A and 60 V DC / 30 V AC, suitable for high-current applications.
• CAT II 300 V safety rating for enhanced protection in measurement circuits.
• Nickel-plated brass contact ensures low contact resistance and corrosion resistance.
• Polyamide insulation provides durability and electrical isolation.
• Red colour for easy identification of polarity or signal type.
• Supplied as a single piece, ideal for custom lead fabrication.

Specifications

• Brand: VOLTCRAFT
• Model: MP-4
• MPN: VC-17195255
• EAN: 4064161481913
• Connector type: 4 mm banana plug
• Connection type: Clamp connection
• Plug orientation: Straight
• Colour: Red
• Rated voltage: 60 V DC / 30 V AC
• Rated current: 32 A
• Safety category: CAT II 300 V
• Contact material: Brass, nickel-plated
• Insulation material: Polyamide (PA)
• Housing material: Polyamide (PA)
• Pin diameter: 4 mm
• Connection method: Solderless
• Temperature range: -25 to +70 °C
• Quantity per pack: 1 piece
• Product type: Laboratory plug

Tips

When using the MP-4 plug, ensure the wire is stripped to the recommended length and fully inserted into the clamp before tightening. For high-current applications, verify that the connected wire gauge is adequate for 32 A. Always disconnect power before assembling or modifying test leads. The red colour is commonly used for positive polarity or signal lines; consider using black plugs for the return path.
