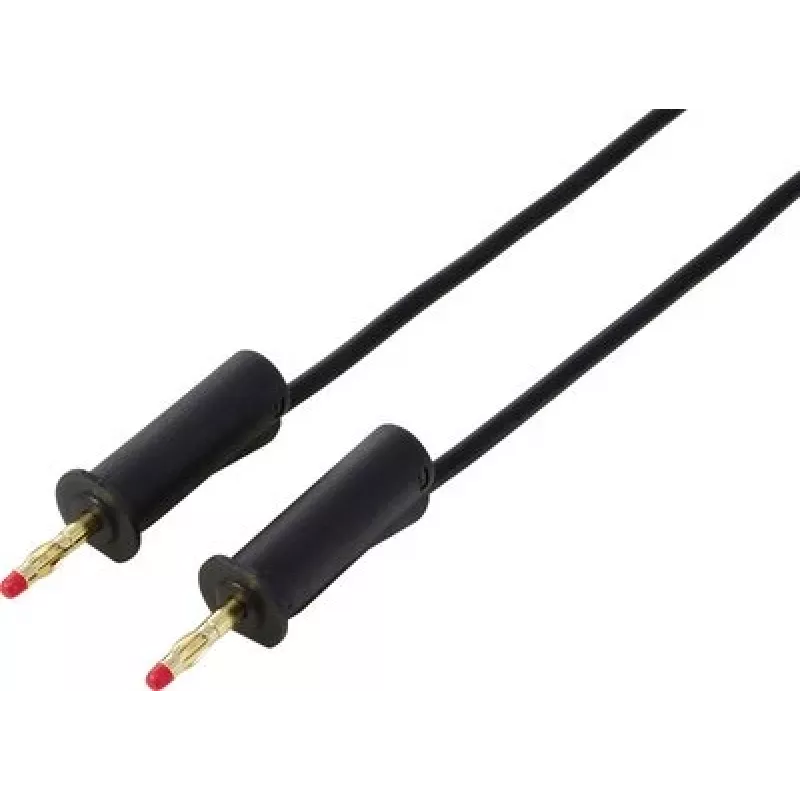

VOLTCRAFT MSB-132 cable de medición negro de 1m conector apilable de 4mm a conector apilable de 4mm VC-18709985

The VOLTCRAFT MSB-132 stands apart from ordinary test leads by combining a highly flexible single-core cable with stackable 4 mm safety plugs, enabling series connections without additional adapters. Rated for 32 A and 1000 V CAT III / 600 V CAT IV, this 1-meter black lead delivers reliable measurements in demanding environments, from electronics labs to field service.

Highlights

• Stackable 4 mm safety plugs on both ends for easy series or parallel connections
• Highly flexible PVC-insulated copper cable for effortless routing and reduced tangling
• High current capacity: 32 A continuous rating
• Safety rated to EN 61010-031, CAT III 1000 V and CAT IV 600 V
• Nickel-plated brass plugs ensure low contact resistance and long-term durability
• Wide operating temperature range: -10 °C to +70 °C

In daily use

Whether you are probing power supplies, multimeters, or other test equipment with 4 mm sockets, the MSB-132 provides a secure, low-loss connection. The stackable design allows you to daisy-chain multiple leads, simplifying complex measurement setups. The black insulation helps distinguish this lead from other channels, reducing connection errors in multi-lead configurations. Its flexible cable withstands repeated bending without cracking, making it ideal for both bench and field applications.

Full specifications

• Product type: Test lead
• Length: 1 m
• Connector 1: 4 mm stackable safety plug
• Connector 2: 4 mm stackable safety plug
• Colour: Black
• Current rating: 32 A
• Voltage rating: 1000 V CAT III, 600 V CAT IV
• Safety standard: EN 61010-031
• Insulation material: PVC
• Conductor material: Copper
• Plug material: Nickel-plated brass
• Temperature range: -10 °C to +70 °C
• Cable type: Highly flexible single-core
• Quantity: 1 piece
• RoHS compliant: Yes

Final note

For professionals who demand dependable, high-current test connections with the versatility of stackable plugs, the VOLTCRAFT MSB-132 is a practical choice that combines safety, flexibility, and durability in a single lead.
