VOLTCRAFT MSO-GRIPPER Set de pinzas de prueba conector 0,64 mm CAT I 9 colores

Equip your oscilloscope with 9 colour-coded grabber clips rated CAT I 30 V AC / 60 V DC, 1 A, with 0.64 mm plug connection for reliable low-voltage signal testing.

Overview

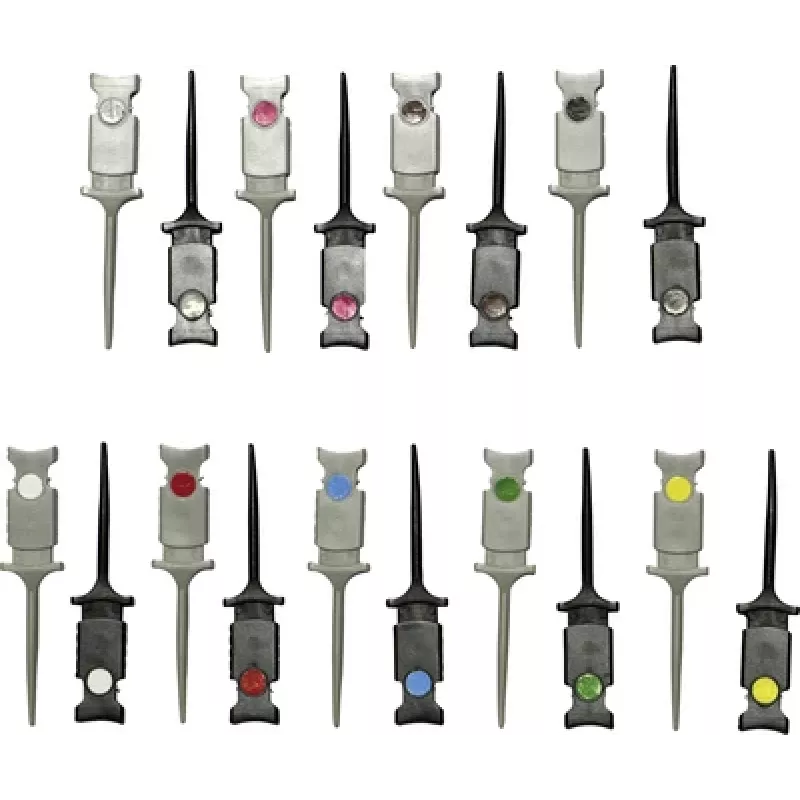

The VOLTCRAFT MSO-GRIPPER is a set of 9 test clips designed for 0.64 mm test points commonly found on MSO oscilloscopes. Each clip features a spring-loaded grabber hook and a 0.64 mm plug input, providing a secure and convenient connection for prototyping, educational experiments, and low-voltage signal measurements.

What stands out

• 9 distinct colours: black, red, brown, green, yellow, violet, blue, white, grey for easy identification.
• Fully insulated plastic housing for safe handling.
• Compact 150 mm total length (clip plus lead) for flexible use.
• CAT I rating suitable for low-energy circuits.

Technical details

• Product type: Test clip set
• Connection type (input): 0.64 mm plug
• Connection type (output): Grabber clip
• Measurement category: CAT I
• Nominal voltage: 30 V AC / 60 V DC
• Nominal current: 1 A
• Number of clips: 9
• Colours included: black, red, brown, green, yellow, violet, blue, white, grey
• Total length (clip + lead): 150 mm
• Insulation: Fully insulated
• Housing material: Plastic
• Application: Low-voltage signal testing, prototyping, educational use

Our verdict

A practical and colour-coded set of grabber clips that makes connecting to fine-pitch test points straightforward and safe.
