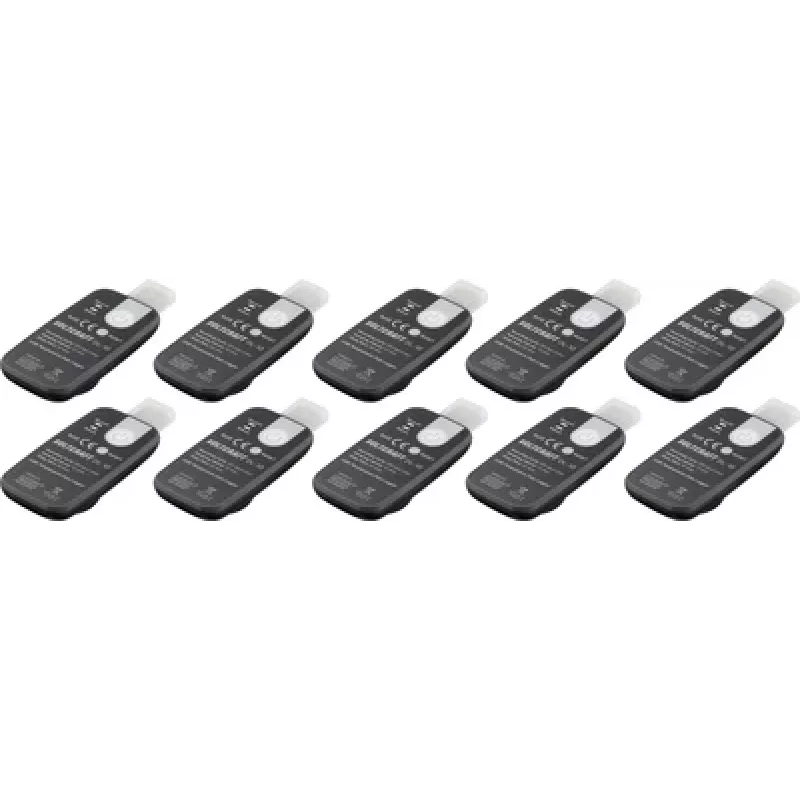

VOLTCRAFT VC-17379140 DL-10 registrador de datos de temperatura con función de informe PDF

The VOLTCRAFT DL-10 stands out by generating a PDF report automatically when connected via USB, eliminating the need for software to view temperature logs. Its IP67-rated housing and wide -30 to 70 °C range suit demanding environments.

Highlights

• Automatic PDF report generation on USB connection
• IP67 protection against dust and water
• 32,000 reading memory capacity
• Configurable high/low alarms

In daily use

Place the logger in a cold chain shipment or storage area. The LCD shows current temperature and alarm status. After the logging period, connect to any computer via USB; a PDF report with data and alarm events is created instantly. For advanced configuration, use the optional VoltSoft software.

Full specifications

• Measurement parameter: Temperature
• Range: -30 to 70 °C
• Accuracy: ±0.5 °C (-20 to +40 °C), ±1.0 °C (remaining range)
• Resolution: 0.1 °C
• Memory: 32,000 readings
• Logging interval: 10 seconds to 24 hours (adjustable)
• Interface: USB 2.0
• Report generation: Automatic PDF
• Data export: PDF, CSV
• Display: LCD
• Power supply: 1x CR2032 lithium button cell
• Battery life: approx. 1 year (at 15 min interval, 25 °C)
• Protection class: IP67
• Alarm functions: Configurable high/low alarms
• Sensor type: Internal NTC thermistor
• Start modes: Manual (button), time-based
• Certifications: EN 12830
• PC software: VoltSoft (optional)
• Operating temperature: -30 to 70 °C
• Mounting: Wall mountable (bracket included)

Final note

The DL-10 is a self-contained logger that delivers compliance-ready PDF reports without proprietary software, ideal for transport and storage monitoring.
