VOLTCRAFT VC-17782285 sonda de endoscopio 5,5 mm de diámetro, 1 m de longitud para serie BS-1000T

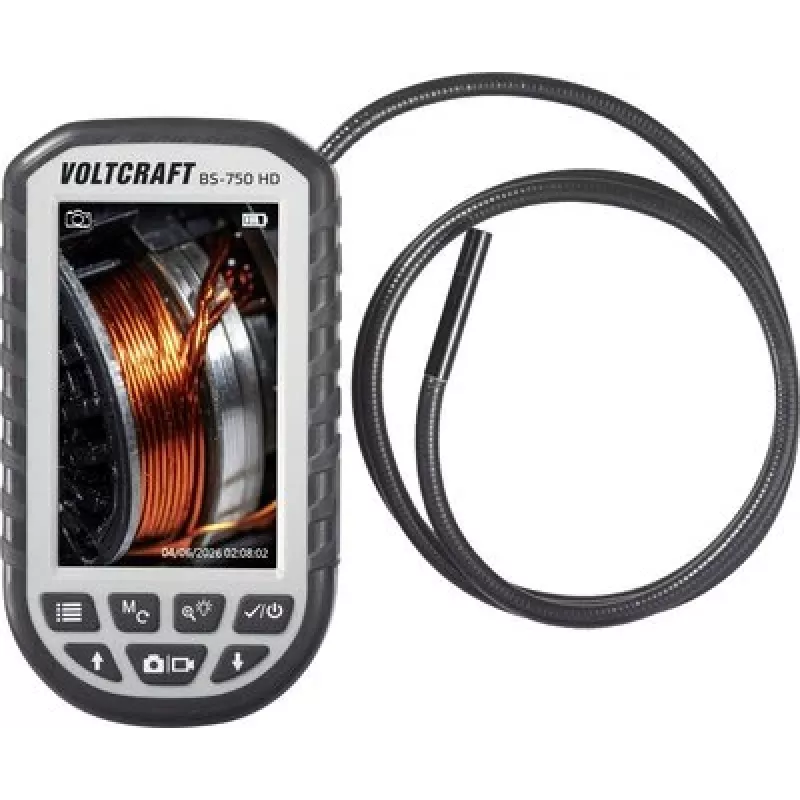

Inspecting tight, dark, or hard-to-reach spaces often means disassembling equipment or relying on guesswork. The VOLTCRAFT VC-17782285 endoscope probe eliminates that hassle by giving you a slim, flexible 5.5 mm camera head on a 1 m semi-rigid cable, ready to slip into pipes, walls, engine bays, and more. It connects directly to your VOLTCRAFT BS-1000T, BS-1000T IP, or BS-1000T IP-HD base unit, turning it into a complete visual inspection system without extra tools.

Who is it for

This probe is built for technicians, mechanics, electricians, and DIY enthusiasts who already own a compatible VOLTCRAFT inspection camera base. If you need to examine automotive cylinders, HVAC ducts, cable conduits, or machinery internals, this replacement or spare probe keeps your workflow moving. It is also ideal for users who want a dedicated probe for dirty or wet environments while keeping a clean one for electronics.

Main features

• 5.5 mm diameter probe head fits into narrow openings and small boreholes.
• 1 m flexible, semi-rigid cable holds its shape for precise positioning.
• VGA CMOS sensor (640 x 480 pixels) delivers clear, real-time video.
• 60° field of view and 30–60 mm depth of field capture sharp detail up close.
• Four dimmable white LEDs illuminate dark cavities with adjustable brightness.
• IP67 waterproof rating on probe head and cable allows use in wet or dusty conditions.
• Proprietary multi-pin connector ensures a secure, tool-free connection to BS-1000T series bases.
• Operates in temperatures from 0 to +45 °C, with storage from -20 to +60 °C.

Specifications

• Probe diameter: 5.5 mm
• Probe length: 1 m
• Camera resolution: 640 x 480 pixels (VGA)
• Sensor type: CMOS
• Field of view: 60°
• Depth of field: 30–60 mm
• Illumination: 4 dimmable white LEDs
• Waterproof rating: IP67 (probe head and cable)
• Cable type: Flexible, semi-rigid
• Connector type: Proprietary multi-pin
• Power supply: Via compatible base unit
• Operating temperature: 0 to +45 °C
• Storage temperature: -20 to +60 °C
• Material: PVC, metal
• Compatible with: VOLTCRAFT BS-1000T, BS-1000T IP, BS-1000T IP-HD

Tips

To extend the life of your probe, avoid bending the cable at sharp angles near the connector. After use in wet or dirty environments, wipe the probe head and cable with a soft, dry cloth before storage. For best image quality, adjust the LED brightness to match the reflectivity of the surface you are inspecting.
