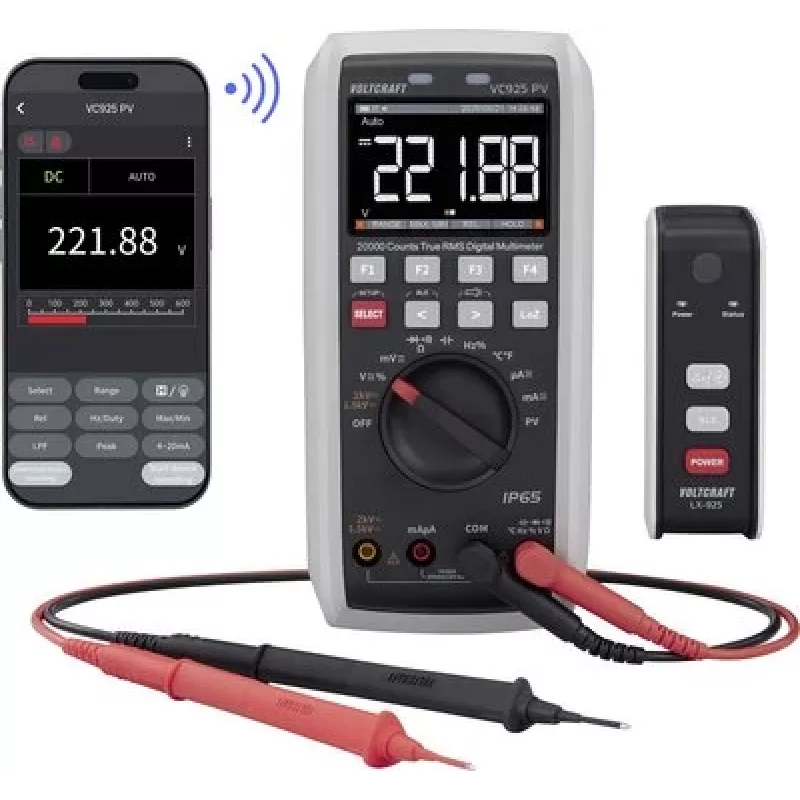

VOLTCRAFT VC925 PV multímetro digital solar True RMS 20000 cuentas IP65 CAT III 1500V CAT IV 1000V Bluetooth VC-15361740

Solar installations demand precise, safe measurement tools that can handle high DC voltages up to 1500 V and harsh outdoor conditions. The VOLTCRAFT VC925 PV is a professional digital multimeter built specifically for photovoltaic systems, combining True RMS accuracy, a rugged IP65-rated housing, and CAT III 1500 V / CAT IV 1000 V safety ratings. Its 20,000-count display and Bluetooth connectivity make it an indispensable instrument for solar technicians and electrical engineers who need reliable data logging and analysis in the field.

Who is it for

This multimeter is tailored for solar PV installers, maintenance crews, and electrical contractors working on residential, commercial, or utility-scale solar arrays. It is equally suited for industrial electricians who require high-voltage CAT ratings and environmental protection. Whether you are commissioning new panels, troubleshooting string faults, or performing routine inspections, the VC925 PV delivers the precision and durability needed for demanding jobs.

Main features

• True RMS measurement for accurate readings on non-sinusoidal waveforms common in inverter outputs.
• Wide DC voltage range up to 1500 V and AC voltage up to 1000 V, ideal for modern PV strings.
• IP65 dust-tight and water-jet protection, allowing use in rainy or dusty environments.
• Bluetooth interface for wireless data transfer to mobile devices for logging and analysis.
• Auto-ranging, data hold, peak hold, min/max, relative mode, and low-pass filter for versatile troubleshooting.
• Temperature measurement from -40 °C to +1000 °C with a K-type thermocouple (probe sold separately).
• Large backlit LCD with 20,000 counts for clear readings in low-light conditions.

Specifications

• Display: Digital LCD, 20,000 counts, backlit
• Measurement type: True RMS
• Safety rating: CAT III 1500 V, CAT IV 1000 V
• Protection class: IP65 (dust-tight, protected against water jets)
• DC voltage range: 0.1 mV to 1500 V
• AC voltage range: 0.1 mV to 1000 V
• DC current range: 0.1 µA to 10 A (20 A for 30 seconds max)
• AC current range: 0.1 µA to 10 A (20 A for 30 seconds max)
• Resistance range: 0.1 Ω to 200 MΩ
• Capacitance range: 0.01 nF to 20 mF
• Frequency range: 0.01 Hz to 20 MHz
• Temperature range: -40 °C to +1000 °C (K-type probe required)
• Connectivity: Bluetooth
• Power supply: 6x AA batteries
• Diode test: Yes
• Continuity test: Yes
• Special functions: Auto-ranging, data hold, peak hold, min/max, relative function, low-pass filter

Tips

For maximum safety when measuring high-voltage PV strings, always connect the test leads before powering the circuit and use the correct CAT-rated probes. The Bluetooth function pairs with the VOLTCRAFT app (available for iOS and Android) to log measurements over time, which is invaluable for detecting intermittent faults. When measuring temperature, ensure the K-type probe is properly connected and select the correct range. Replace all six AA batteries when the low-battery indicator appears to maintain accuracy.
