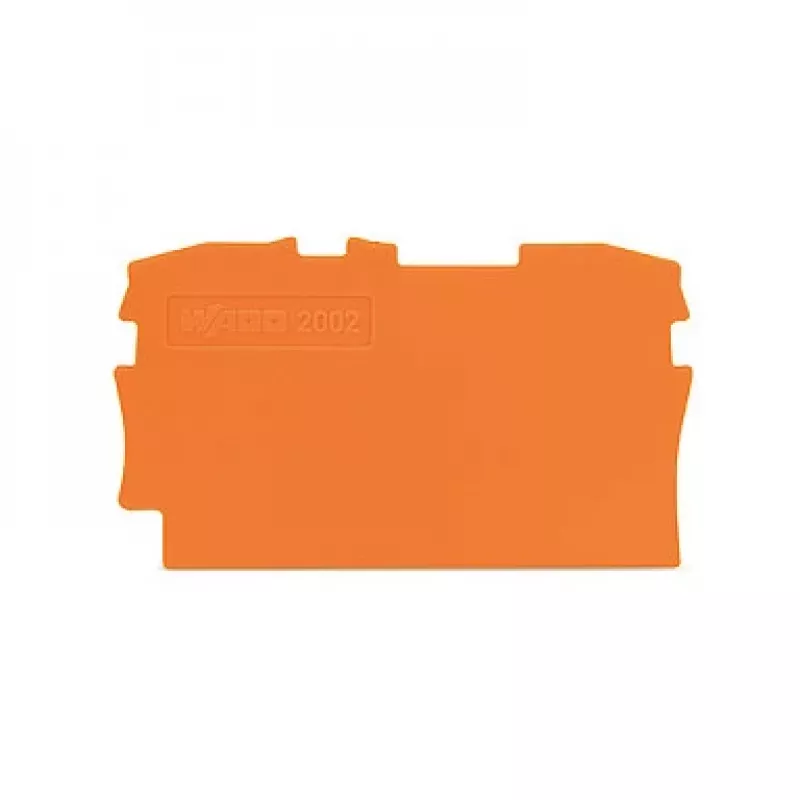

WAGO 2002-1292 placa de cierre - naranja - 0,8 mm - 48,5 mm - 28,4 mm - 1,19 g

The WAGO 2002-1292 End Plate is a high-quality accessory designed for use with WAGO 2002 Series terminal blocks. It provides reliable insulation and protection, ensuring safe and organized electrical connections. Manufactured from durable polyamide (PA 66) with a UL 94 V-0 flammability rating, this end plate is suitable for demanding industrial environments.

Advantages

• Snap-on mounting for quick and easy installation
• Halogen-free and RoHS compliant for environmental safety
• Wide operating temperature range from -35 to +100 °C
• Lightweight design at only 1.19 g

Suitable for

• WAGO 2002 Series terminal blocks
• Industrial control panels and junction boxes
• Electrical insulation and protection applications

Key specifications

• Product Type: End Plate
• Series: TOPJOB S
• Color: Orange
• Material: Polyamide (PA 66)
• Flammability Rating: UL 94 V-0
• Mounting Type: Snap-on
• Height: 48.5 mm
• Depth: 28.4 mm
• Thickness: 0.8 mm
• Net Weight: 1.19 g
• Operating Temperature Range: -35 to +100 °C
• Storage Temperature Range: -35 to +100 °C
• Function: Insulation and Protection
• RoHS Status: Compliant
• Halogen-free: Yes

Recommendations

For optimal performance, use this end plate with genuine WAGO 2002 Series terminal blocks. Ensure proper snap-on installation to maintain secure insulation.
