WAGO 2005-7692 Placa terminal / cubierta - Naranja

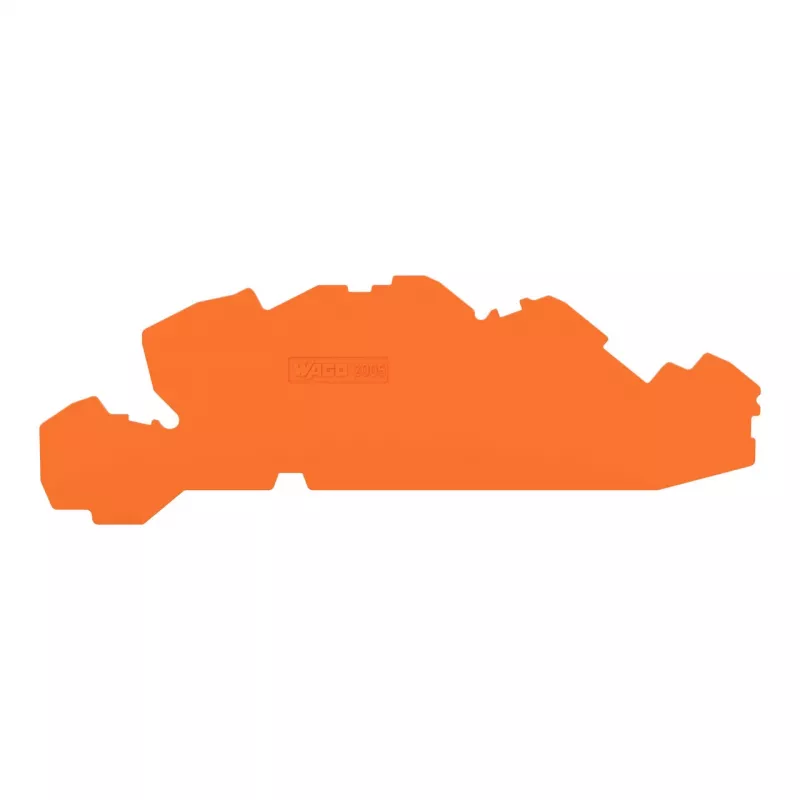

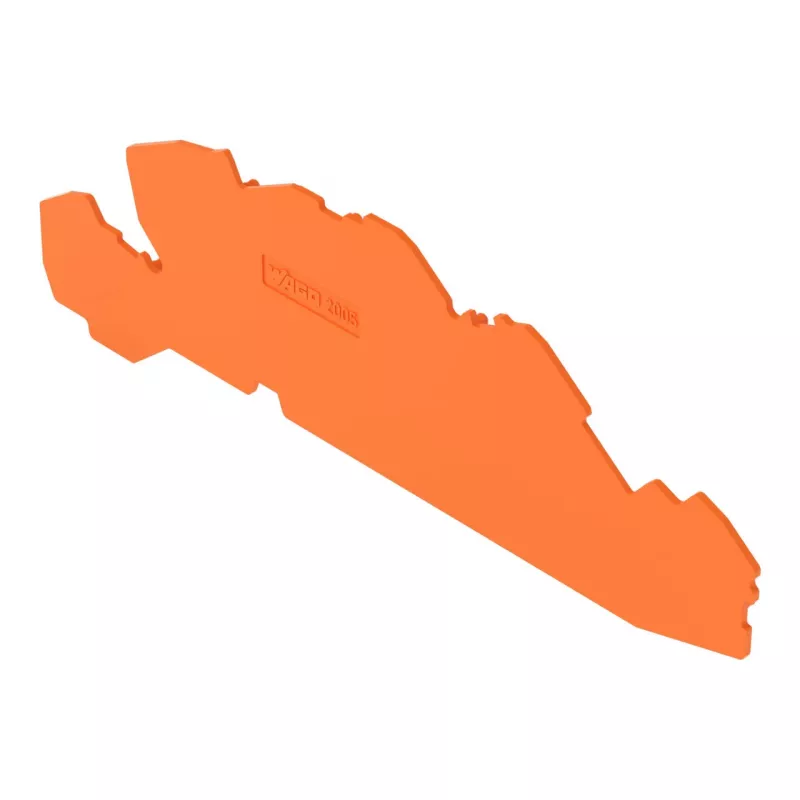

The WAGO 2005-7692 is a high-quality end plate / cover designed for use with WAGO 2005 Series terminal blocks. It provides electrical insulation, mechanical protection, and visual separation between terminal blocks, ensuring safe and organized wiring installations. Made from durable polyamide (PA 66) with a UL94 V-0 flammability rating, this orange cover is halogen-free and RoHS compliant.

Advantages

This end plate offers reliable insulation and protection, enhancing the safety and longevity of your electrical connections. Its snap-on mounting allows for quick and easy installation without tools. The bright orange color provides clear visual identification, aiding in maintenance and troubleshooting.

Suitable for

• Industrial control panels
• Building automation systems
• Electrical distribution boards
• Any application using WAGO 2005 Series terminal blocks

Key specifications

• Product Type: End Plate / Cover
• Series Compatibility: WAGO 2005 Series Terminal Blocks
• Color: Orange
• Material: Polyamide (PA 66)
• Flammability Rating: UL94 V-0
• Mounting Type: Snap-on / Side Mounting
• Operating Temperature Range: -35 to +105 °C
• Width (Thickness): 1.8 mm
• Height: 32.5 mm
• Depth: 65.5 mm
• Halogen-free: Yes
• RoHS Compliant: Yes
• Pollution Degree: 2

Recommendations

For optimal performance and safety, always use WAGO end plates with compatible terminal blocks. Ensure proper installation according to manufacturer guidelines.
