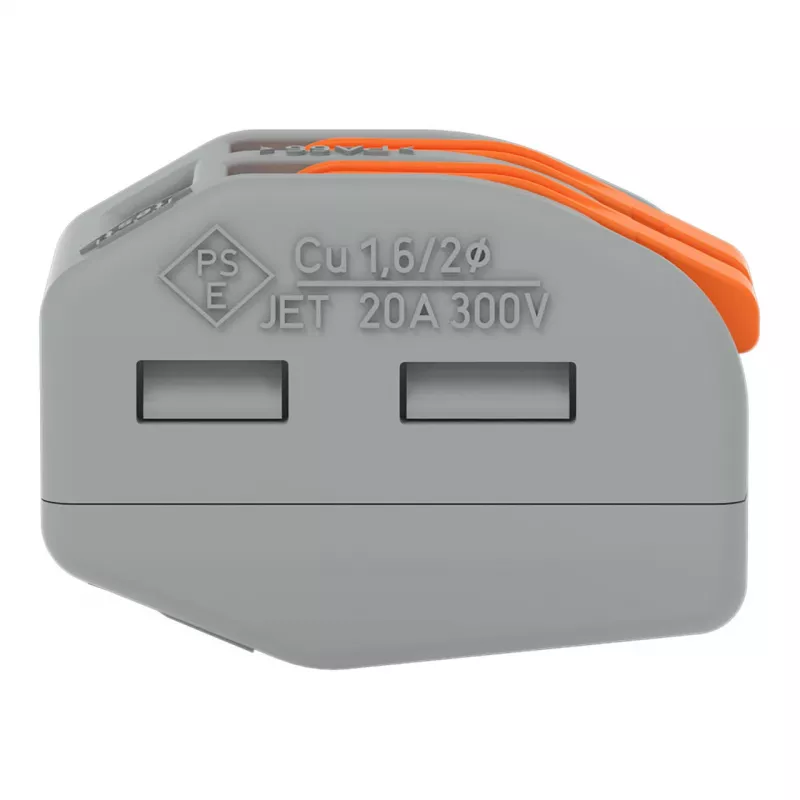

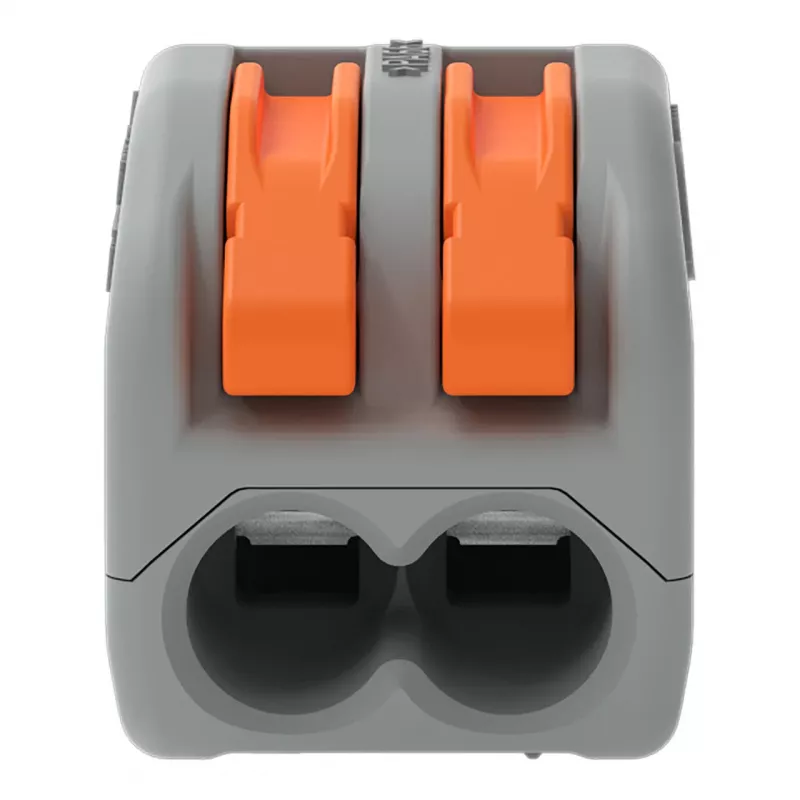

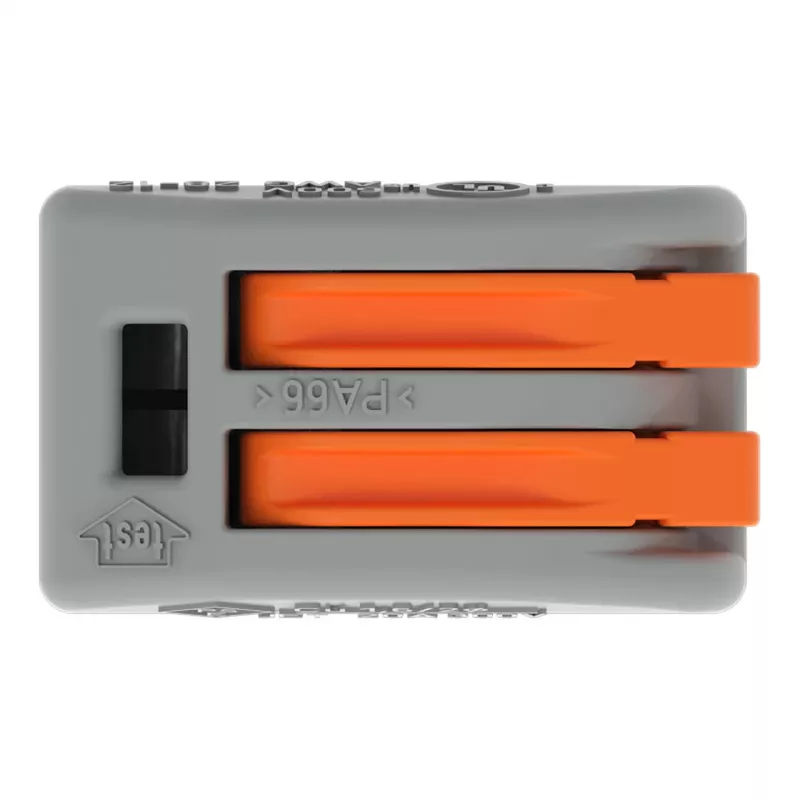

WAGO 222-412 borne de conexión de 2 conductores, gris/transparente, 32A, 400V

The WAGO 222-412 is a compact 2-conductor splicing connector from the WAGO 222 Series COMPACT, designed for reliable and tool-free wiring connections. Featuring CAGE CLAMP® technology and lever actuation, it ensures secure and maintenance-free connections for solid, stranded, and fine-stranded conductors. The transparent housing allows easy inspection of the connection, while the grey levers provide clear actuation. Ideal for junction boxes, lighting installations, and industrial control systems.

Advantages

Tool-free lever actuation for fast and easy wiring. Transparent housing for visual connection check. Compact design saves space in junction boxes. Rated for 32A and 400V, suitable for a wide range of applications. Test port allows for easy measurement without disconnecting.

Suitable for

• Junction boxes and distribution boards
• Lighting and luminaire connections
• Industrial control and automation systems
• Residential and commercial electrical installations

Key specifications

• Product Type: Splicing Connector
• Series: WAGO 222 Series COMPACT
• Number of Conductors: 2
• Connection Technology: CAGE CLAMP®
• Actuation Type: Lever
• Nominal Voltage (EN): 400 V
• Nominal Current (EN): 32 A
• Rated Impulse Voltage: 4 kV
• Solid Conductor Size: 0.08 - 2.5 mm² (28 - 12 AWG)
• Stranded Conductor Size: 0.08 - 2.5 mm² (28 - 12 AWG)
• Fine-Stranded Conductor Size: 0.08 - 4 mm² (28 - 12 AWG)
• Stripping Length: 9 - 10 mm
• Color: Grey (Levers), Transparent (Housing)
• Housing Material: Polyamide (PA 6.6)
• Operating Temperature: Max 85 °C (T85)
• Pollution Degree: 2
• Test Port: Yes
• Mounting Type: Free wiring

Recommendations

For optimal performance, use with WAGO 222 Series accessories and ensure proper stripping length. Always follow local electrical codes and regulations.
