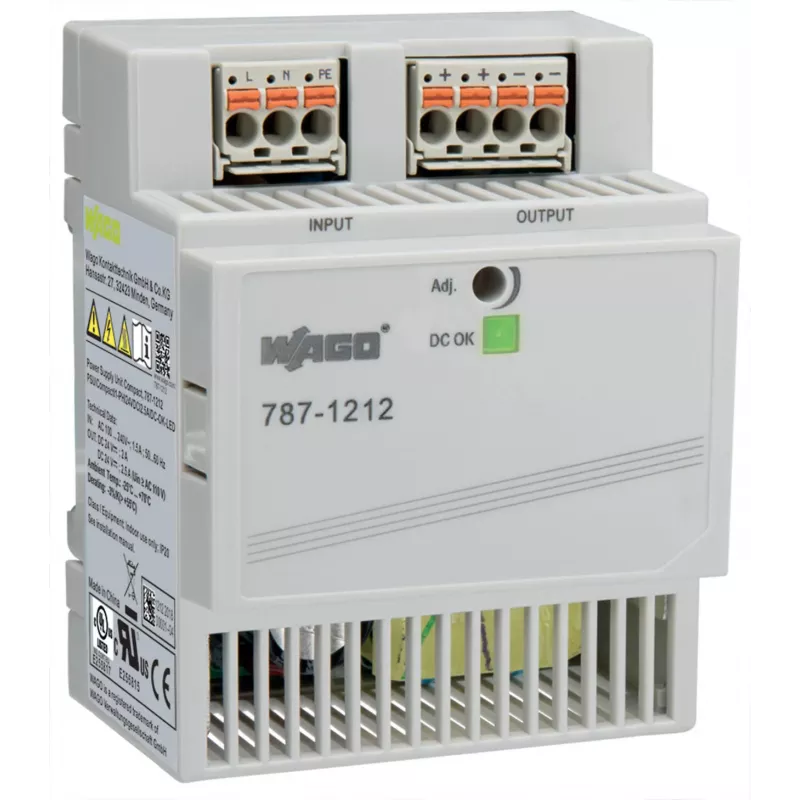

WAGO 787-1212 Fuente de alimentación conmutada para carril DIN 60 W 24 V 2,5 A

The WAGO 787-1212 is a high-efficiency switching power supply designed for DIN rail mounting. It provides a stable 24 VDC output at 2.5 A (60 W) and is ideal for industrial control cabinets, building automation, and machinery applications. With push-in CAGE CLAMP® technology, installation is quick and tool-free.

Advantages

Compact design saves space on the DIN rail. High efficiency >89% reduces energy costs and heat generation. Comprehensive protection features (short-circuit, overload, overvoltage, overtemperature) ensure reliable operation. Wide input voltage range (100-240 VAC / 110-300 VDC) makes it suitable for global use.

Suitable for

• Industrial automation systems
• Building management and HVAC controls
• PLC and sensor power supplies
• Process control and instrumentation

Key specifications

• Output voltage: 24 VDC (adjustable 22-28 VDC)
• Output current: 2.5 A
• Output power: 60 W
• Input voltage: 100-240 VAC / 110-300 VDC
• Input frequency: 50/60 Hz
• Efficiency: >89%
• Mounting: DIN rail TS 35
• Connection: Push-in CAGE CLAMP®
• Protection: Short-circuit, overload, overvoltage, overtemperature
• Operating temperature: -25 to +70 °C
• Ripple and noise: <100 mVpp
• Certifications: UL 508, UL 60950-1, EN 60950-1, CE, RoHS

Recommendations

For optimal performance, use with WAGO 787 series accessories and ensure proper ventilation. This power supply is a reliable choice for demanding industrial environments.
