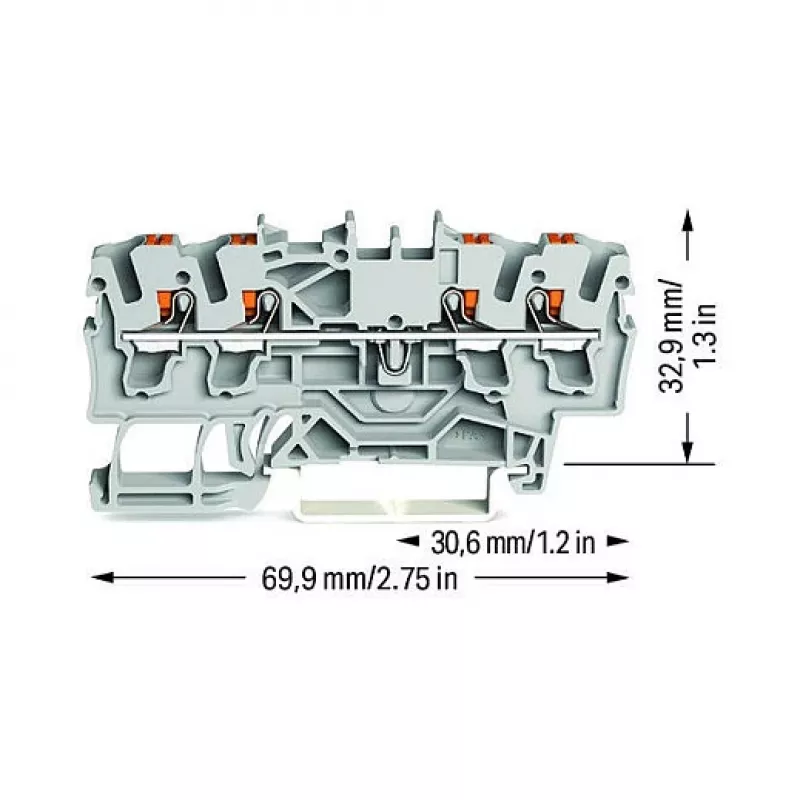

WAGO Borne de paso 4 conductores Push-in 2,5 mm² Gris

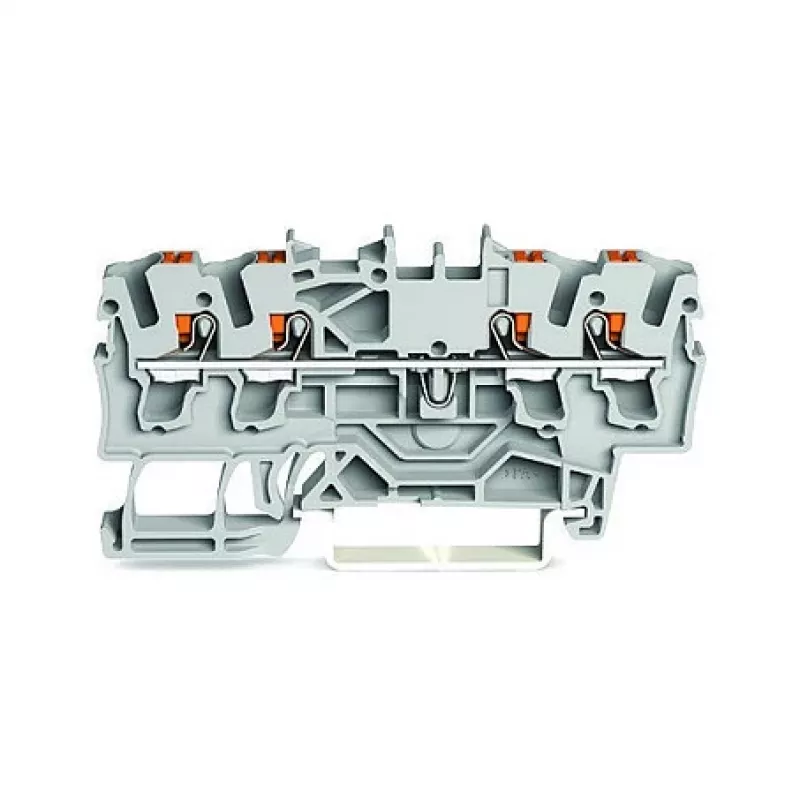

The WAGO 2202-1401 feedthrough terminal block is a high-quality, compact solution for connecting and distributing electrical conductors in control cabinets and junction boxes. Designed for 4 conductors with a nominal cross-section of 2.5 mm², this terminal block features the innovative Push-in CAGE CLAMP® connection technology for fast, tool-free wiring. Its gray polyamide housing ensures durability and reliable insulation, while the DIN-rail 35 mounting simplifies installation.

Advantages

Push-in CAGE CLAMP® technology enables direct insertion of solid conductors without tools, saving time and reducing installation errors. The compact 4-conductor design optimizes space on the DIN rail. Rated voltage up to 800 V and rated current up to 24 A make it suitable for a wide range of industrial applications. The terminal block is also rated for surge voltage up to 8 kV and pollution degree 3, ensuring robust performance in demanding environments.

Suitable for

• Control cabinet wiring
• Distribution boards
• Industrial automation systems
• Building electrical installations

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Number of Conductors: 4
• Nominal Cross Section: 2.5 mm² (AWG 14)
• Color: Gray
• Rated Voltage (EN): 800 V
• Rated Current (EN): 24 A
• Rated Surge Voltage: 8 kV
• Mounting Type: DIN-rail 35
• Insulation Material: Polyamide (PA 66)
• Flammability Rating: UL 94 V-0
• Stripping Length: 9 – 11 mm (0.35 – 0.43 inch)
• Wire Size Range (Solid): 0.25 - 4 mm² (AWG 22 - 12)
• Wire Size Range (Fine-stranded w/ ferrule): 0.25 - 2.5 mm² (AWG 22 - 14)
• Operating Temperature: -35 °C to +105 °C
• Pollution Degree: 3
• Number of Potentials: 1
• Number of Levels: 1

Recommendations

For optimal performance, use with WAGO marking strips and end brackets. Ensure proper stripping length (9-11 mm) for reliable connection. Suitable for use with solid and fine-stranded conductors with ferrules.
