WAH25A 001 Acero inoxidable aluminio Schwaiger

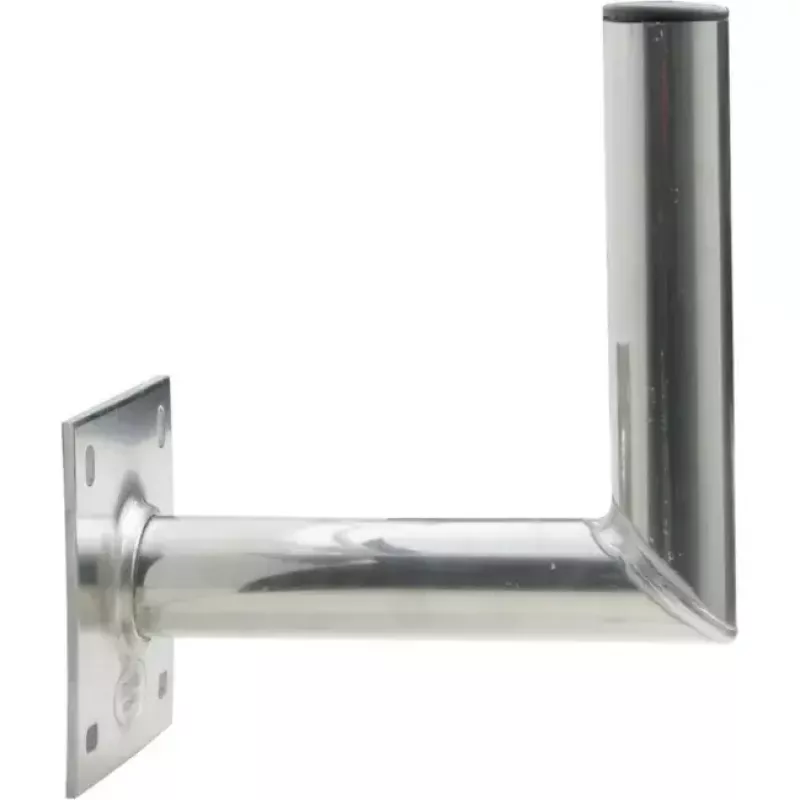

The Schwaiger WAH25A 001 is a stainless steel and aluminium mounting bracket designed for installing offset satellite antennas with a diameter of up to 90 cm. It measures 150 mm wide, 38 mm deep and 150 mm high, offering a compact and durable solution for rooftop or mast installations where corrosion resistance and stability are required.

Advantages

This mounting bracket combines stainless steel and aluminium for corrosion resistance and long service life. Its compact dimensions make it suitable for installations with limited space while maintaining mechanical stability. The product is designed for straightforward integration with common masts and mounting systems and provides a neat, low-profile appearance.

Suitable for

• Mounting offset satellite antennas up to 90 cm in diameter
• Rooftop and mast installations
• Residential and small commercial satellite reception setups

Key specifications

• Brand: SCHWAIGER
• Model / MPN: WAH25A001
• EAN: 4004005250046
• Materials: stainless steel and aluminium

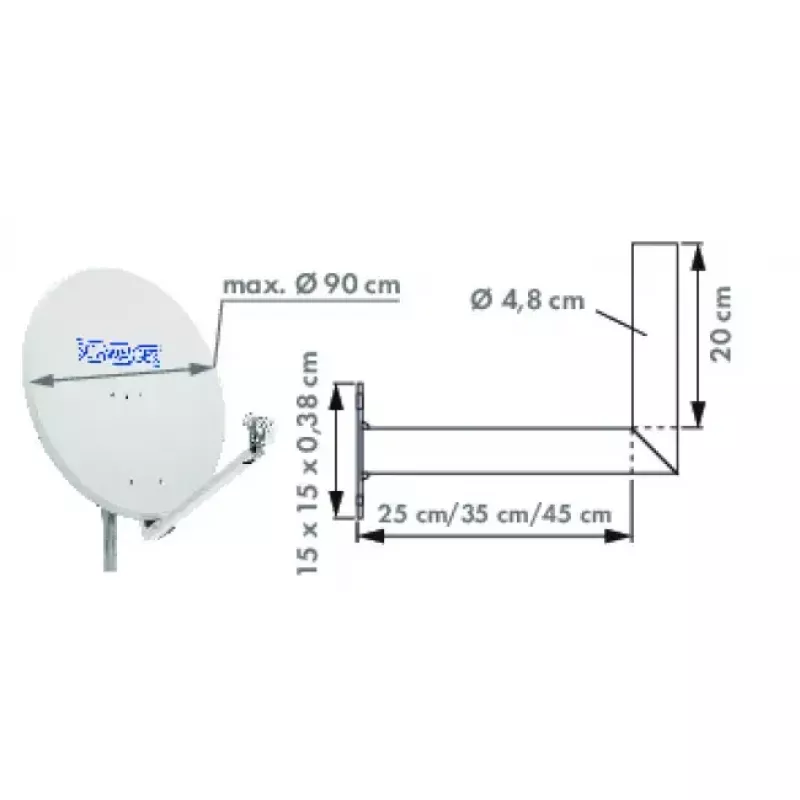

• Dimensions (W × D × H): 150 × 38 × 150 mm
• Compatible antenna diameter: up to 90 cm

How to use

Position the bracket on the chosen mast or mounting point ensuring it is level and secure. Attach the offset antenna to the bracket using appropriate bolts or clamps (not supplied) suitable for stainless steel and aluminium fixings. Tighten fasteners to the manufacturer-recommended torque and verify the assembly is stable before final antenna alignment.

Recommendations

For long-term performance, use stainless steel bolts or corrosion-resistant fasteners and perform periodic checks after severe weather. Ensure all connections are tightened and that the mounting point is rated for wind loads appropriate to the antenna size.
