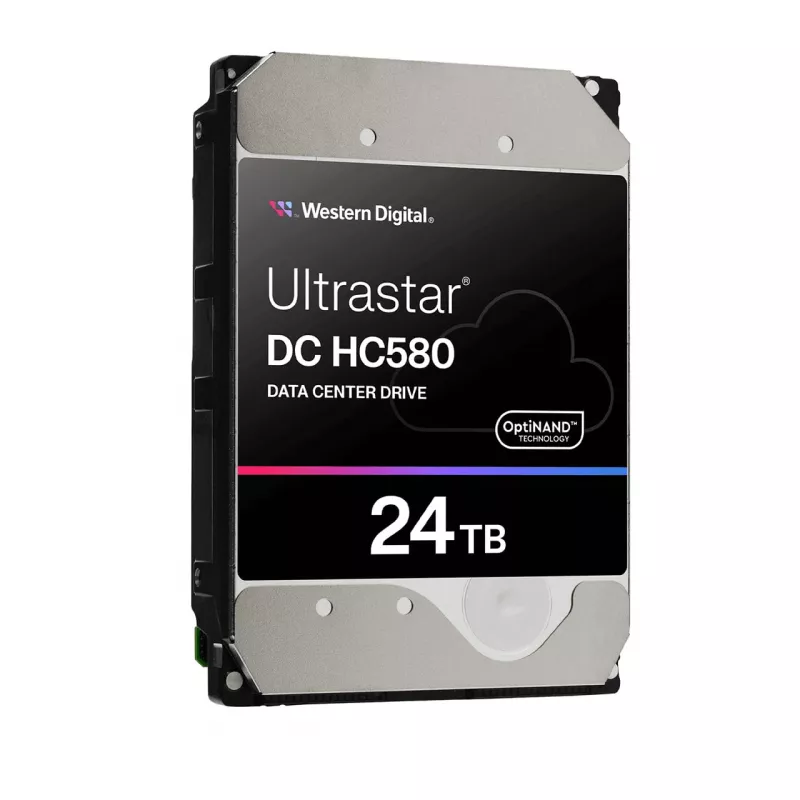

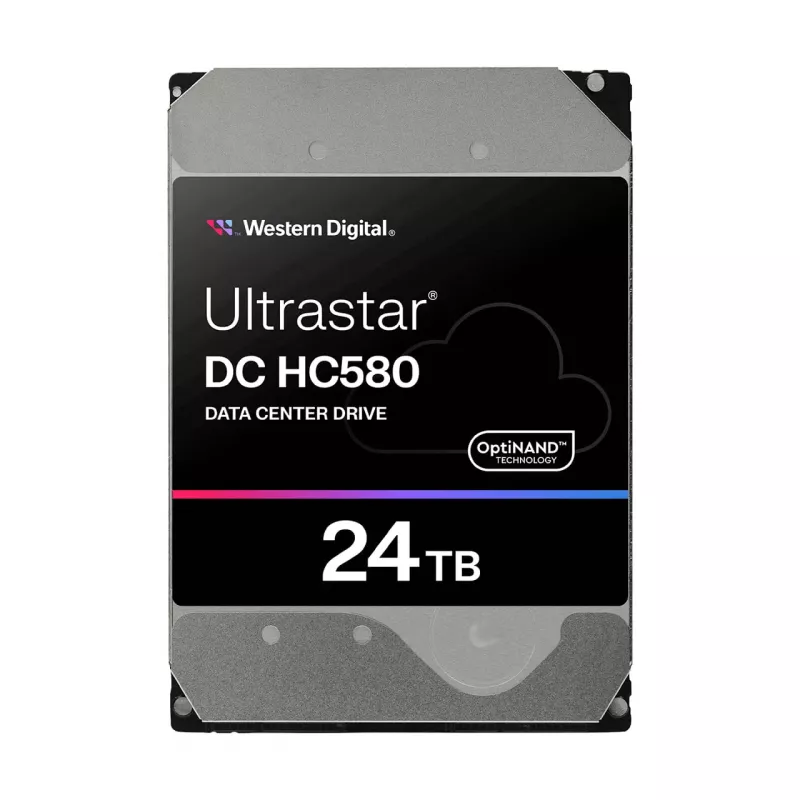

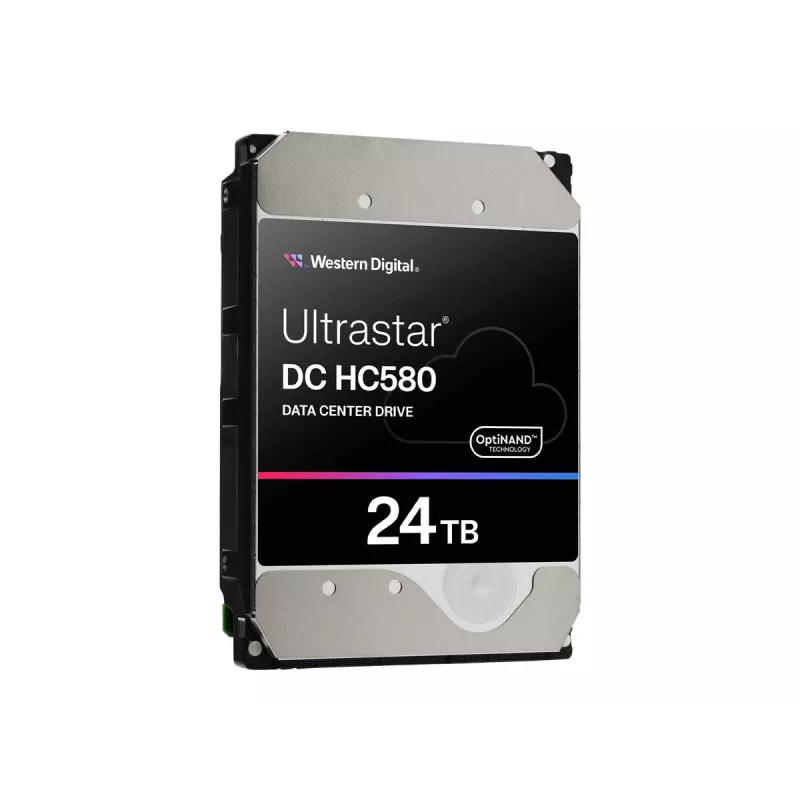

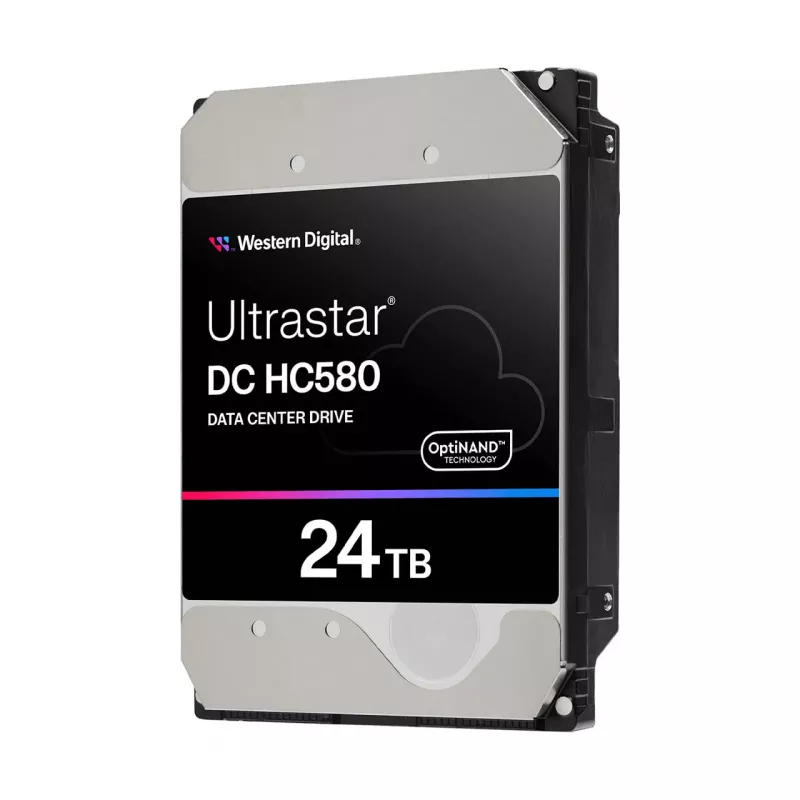

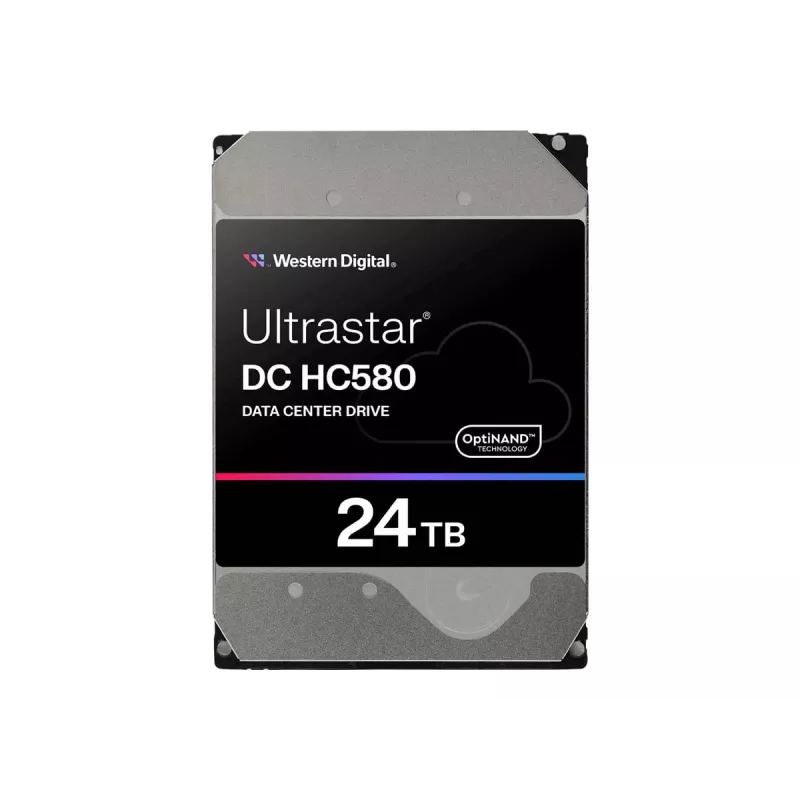

HDD Western Digital 24 TB 3,5" Serial ATA Ultrastar DC HC580

The Western Digital Ultrastar DC HC580 is a 3.5" Serial ATA enterprise hard drive with 24 TB capacity, 7200 RPM spindle speed and a 512 MB buffer. Built for data center use, it combines improved OptiNAND technology, energy-assisted magnetic recording (EAMR), a triple-stage actuator and HelioSeal to deliver high areal density and low power consumption in a 10-disk CMR design. The drive is optimized for sustained heavy workloads and offers features intended to protect data integrity in critical environments.

Advantages

This 24TB Ultrastar DC HC580 drive provides high capacity in the standard 3.5" form factor while maintaining enterprise reliability with a projected MTBF of up to 2.5 million hours. OptiNAND-enabled ArmorCache improves write performance and offers enterprise-class power loss protection when write cache is enabled. Combined technologies such as EAMR, TSA and HelioSeal enable higher storage density with reduced power consumption for data center racks constrained by space or power.

Suitable for

• Large-scale data center bulk storage
• Archival and cold storage arrays
• High-density server and storage enclosures
• Enterprise backup and disaster recovery systems

Key specifications

• Capacity: 24 TB (24000 GB)
• Form factor: 3.5"
• Interface: Serial ATA (SATA)
• Rotation speed: 7200 RPM
• Buffer: 512 MB
• Workload rate: optimized for up to 550 TB/year
• MTBF: up to 2,500,000 hours (projected)
• Weight: 0.67 kg
• Manufacturer part number (MPN): 0F62796
• EAN: 0829686008830

How to use

Install the Ultrastar DC HC580 into a compatible 3.5" drive bay or storage enclosure with a SATA interface following your system vendor’s procedures. Ensure proper mounting, adequate cooling and correct SATA power and data connections. Configure RAID or host settings according to your storage architecture and perform any recommended firmware updates. Monitor drive health using vendor tools and integrate the drive into your backup and maintenance routines.

Recommendations

Use this HDD in environments with controlled temperature and vibration levels, in racks or enclosures that provide sufficient airflow. For mission-critical applications, enable regular backups and integrate the drive into RAID or replication schemes to meet redundancy and recovery objectives.
