Weidmüller WAD 5 MC NE WS Marcador de bornes - Blanco - 48 uds.

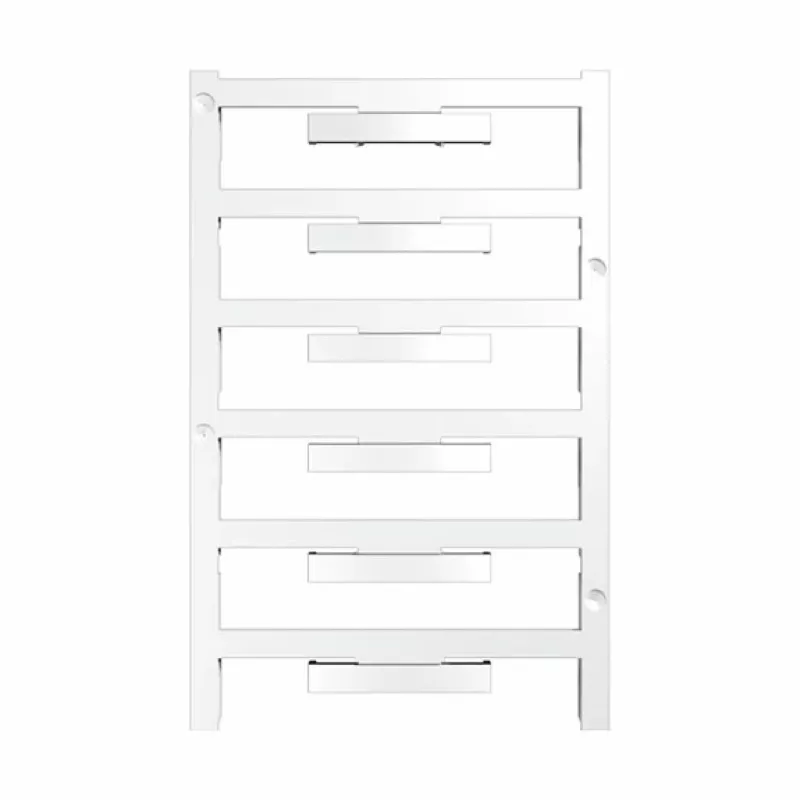

The Weidmüller WAD 5 MC NE WS is a high-quality terminal block marker designed for clear and durable identification of electrical components. This marker is part of the WAD series and comes in a convenient MultiCard format, offering 48 individual markers per card. Made from polyamide (PA) with a white finish, it provides excellent resistance to industrial chemicals and UV radiation, ensuring long-lasting readability even in harsh environments.

Advantages

This terminal block marker offers several key benefits: halogen-free construction for safety, UV resistance for outdoor or high-light applications, and a wide operating temperature range from -40 to 100 °C. The clip-on mounting allows for quick and secure attachment to terminal blocks without tools. It is compatible with thermal transfer, plotter, and manual printing methods, giving flexibility for on-site or pre-printed labeling.

Suitable for

• Marking of terminal blocks in industrial control panels
• Identification of electrical components and cables
• Use with Weidmüller W-series, Z-series, and SAK-series terminal blocks
• Applications requiring high chemical resistance and halogen-free materials

Key specifications

• Product Type: Terminal Block Marker
• Series: WAD
• Marker Format: MultiCard
• Colour: White
• Material: Polyamide (PA)
• Flammability Rating: UL 94 V-2
• Operating Temperature Range: -40 to 100 °C
• Number of Markers per Card: 48
• Marker Width (Individual): 5 mm
• Marker Length (Individual): 10 mm
• Marker Height (Individual): 4.5 mm
• Mounting Type: Clip-on
• Printing Method Compatibility: Thermal transfer, Plotter, Manual
• Halogen-free: Yes
• UV-resistant: Yes
• Chemical Resistance: Good against common industrial chemicals
• Pitch: 5 mm

Recommendations

For optimal results, use with Weidmüller thermal transfer printers or compatible labeling software. Ensure the terminal block surface is clean and dry before applying the marker. Store in a cool, dry place away from direct sunlight to preserve marker quality.
