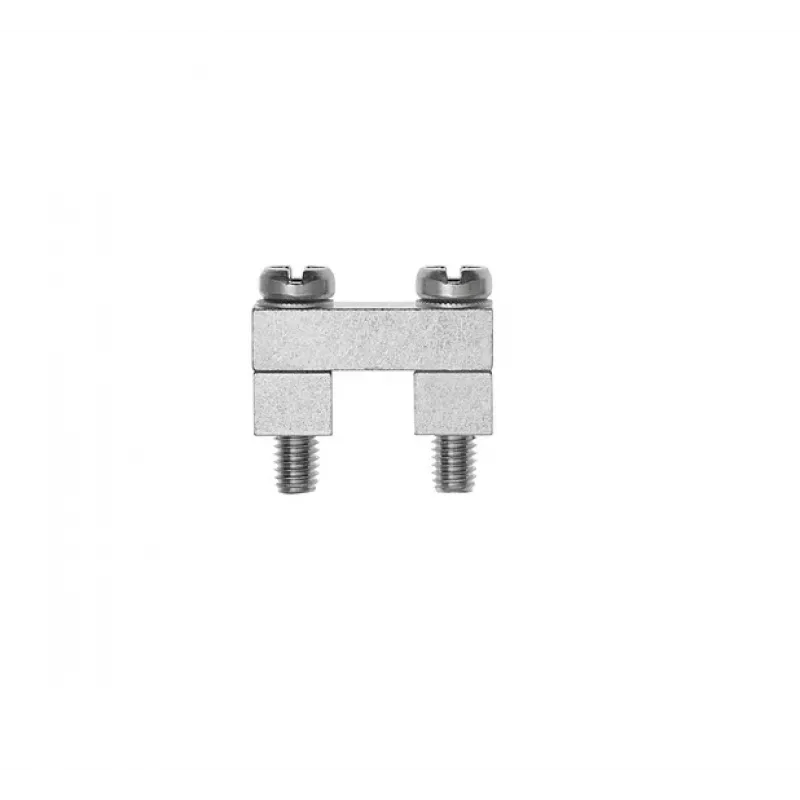

Weidmüller ZQV 2.5N puente de conexión, 20 polos, gris, 800V, 24A, cobre, recto

The Weidmüller ZQV 2.5N cross-connector (MPN: 9512240000) is a high-quality plug-in jumper designed for use with Weidmüller Z-series terminal blocks. It enables efficient and reliable electrical distribution across multiple poles, saving installation time and reducing wiring errors. Rated for 800 V and 24 A, this 20-pole straight connector features a grey polyamide 66 housing with copper conductors, ensuring excellent conductivity and durability in industrial environments.

Advantages

• Time-saving plug-in design eliminates individual wiring
• Compact 5.1 mm pitch saves space on DIN rails
• Robust PA 66 insulation with UL 94 V-2 flammability rating
• Wide operating temperature range from -50 to +100 °C
• CE, cURus, and EAC approved for global use

Suitable for

• Industrial control panels and automation systems
• Power distribution in terminal block assemblies
• Signal and voltage bridging in Z-series blocks
• Applications requiring reliable, high-density connections

Key specifications

• Product Type: Cross-connector
• Number of Poles: 20
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Conductor Material: Copper
• Insulation Material: Polyamide 66 (PA 66)
• Colour: Grey
• Pitch: 5.1 mm
• Operating Temperature Range: -50 to +100 °C
• Flammability Rating: UL 94 V-2
• Design: Straight
• Insulation: Insulated
• Nominal Cross-Section (Terminal Block): 2.5 mm²
• Mounting Type: Plug-in
• Series: ZQV 2.5N
• Number of Rows: 1

Recommendations

For optimal performance, use with Weidmüller Z-series terminal blocks rated for 2.5 mm² conductors. Ensure proper insertion and secure locking to maintain rated electrical specifications.
