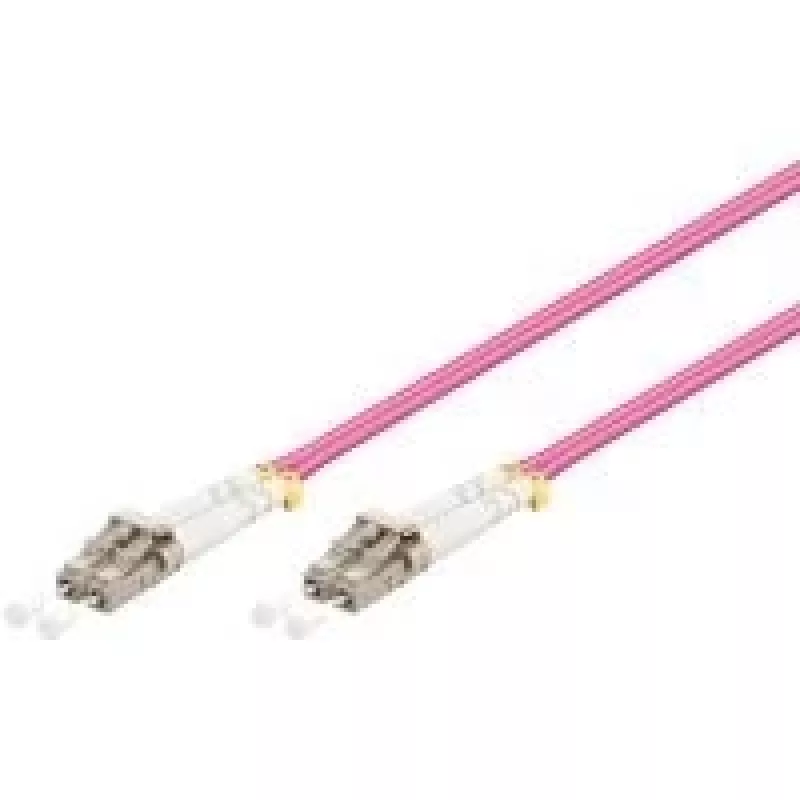

Cable de fibra óptica GOOBAY 95936 LC–LC multimodo 50 µm, rosa

GOOBAY 95936 is a multimode fiber optic cable with LC duplex connectors on both ends and a 50 µm core diameter, designed for short-range high-speed links in offices, data centres and industrial environments. The pink outer jacket provides clear visual identification within cable bundles and racks. The cable uses halogen-free, flame-retardant sheathing for improved safety and comes supplied with a factory test report to verify optical performance.

Advantages

This LC–LC multimode cable supports InfiniBand and standard fiber-optic network applications, enabling reliable Ethernet and storage connections between switches, servers and storage devices. The duplex LC connectors include removable dust covers to protect ferrules during installation. Bend protection and robust sheathing reduce the risk of damage during routing and handling, while the LSZH jacket minimises smoke and corrosive gas release in case of fire. Supplied test documentation helps with verification and commissioning.

Suitable for

• Short-range links in server rooms and data centres
• Connections between switches, storage arrays and servers
• Office and industrial fiber backbone cabling
• Telecommunications and InfiniBand interconnects where multimode fiber is required

Key specifications

• Fiber type: Multimode, 50 µm core diameter (OM2/OM3/OM4 compatible)
• Connector type: LC duplex to LC duplex (both ends)
• Jacket: Halogen-free, flame-retardant (LSZH)
• Colour: Pink for visual identification
• Bend protection: Integrated at connector boot
• Included documentation: Factory test report for optical performance
• Typical maximum transmission ranges: 100 Mbit/s – up to 500 m (OM2/OM3/OM4); 1 Gbit/s – OM2 up to 500 m, OM3/OM4 up to 1,100 m; 10 Gbit/s – OM2 up to 82 m, OM3 up to 300 m, OM4 up to 550 m

How to use

Before installation, inspect the LC connector ferrules and keep dust caps in place until connectors are mated to avoid contamination. Route the cable following recommended bend radii and secure it in cable management trays or racks to prevent strain on the connectors. When connecting equipment, ensure ports accept LC duplex connectors and align transmit/receive pairs correctly. After installation, use the supplied test report or perform optical tests to confirm link loss and performance meet system requirements.

Recommendations

Handle the fiber cable carefully: avoid excessive bending and pulling forces, store and install at temperatures and environments specified by equipment manufacturers, and clean connector end faces before mating. Use the pink jacket colour to separate this multimode link from other lines in mixed-cable environments and retain the provided test documentation for network records.
