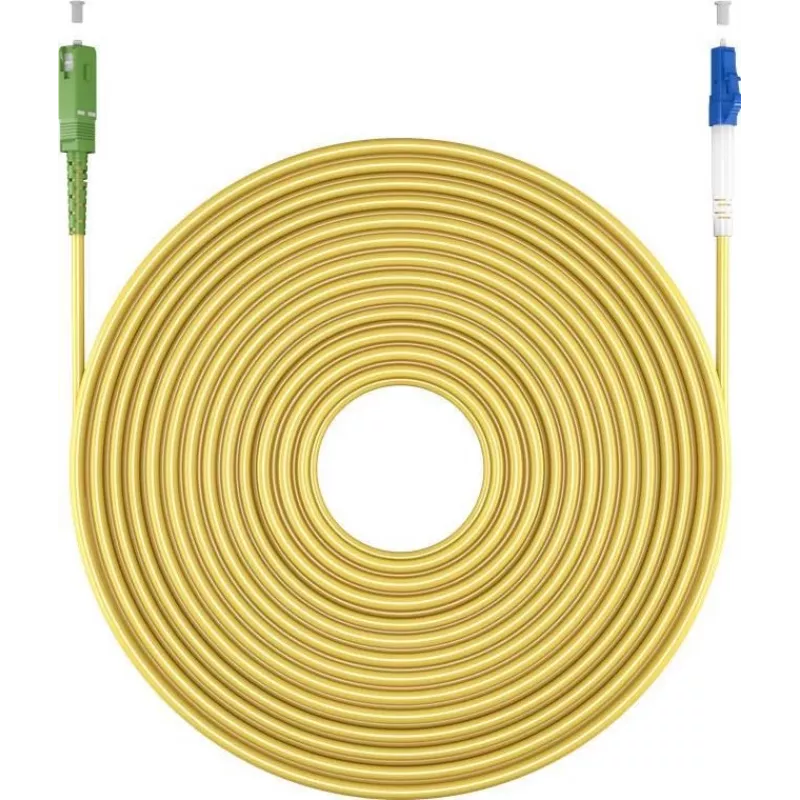

Wentronic Goobay 59654 Cable de fibra óptica patch SC/APC a LC/UPC OS2 monomodo de 20 m, LSZH, amarillo

FTTH installations demand a reliable, low-loss connection between the optical network terminal and the subscriber premises. The Wentronic Goobay 59654 fibre optic patch cable delivers exactly that, with a 20-metre reach and precision-polished connectors that ensure stable, high-speed data transmission for residential and small business fibre-to-the-home setups.

Who is it for

This cable is ideal for network technicians, installers, and DIY enthusiasts deploying FTTH connections. It suits anyone needing a durable, single-mode OS2 patch lead that maintains signal integrity over longer distances, especially in environments where safety and low smoke emission are critical.

Main features

• SC/APC to LC/UPC connectors for standard FTTH equipment compatibility.
• OS2 single-mode fibre (9/125 µm) with low attenuation: 0.35 dB/km @ 1310 nm, 0.20 dB/km @ 1550 nm.
• Angled and ultra physical contact polishing minimise back reflections and insertion loss (≤0.3 dB typical).
• LSZH yellow jacket is halogen-free, low smoke, and flame retardant for enhanced safety.
• Simplex construction with a tight bend radius (7.5 mm dynamic) for easy routing in tight spaces.
• Wide operating temperature range (-20°C to +70°C) for versatile deployment.

Specifications

• Length: 20 m
• Fibre type: Single-mode OS2 (ITU-T G.657.A2/B2 compatible)
• Connector A: SC/APC (green)
• Connector B: LC/UPC (blue)
• Return loss: ≥60 dB (SC/APC), ≥50 dB (LC/UPC)
• Jacket material: LSZH
• Colour: Yellow
• Compliance: RoHS, CE, TIA/EIA-568.3-D
• Storage temperature: -40°C to +85°C

Tips

Always inspect and clean connector end faces before mating to prevent contamination and signal loss. Avoid exceeding the minimum bend radius during installation to maintain optimal performance. For outdoor or harsh environments, consider additional protection such as conduit or armoured cable.
