Wentronic Goobay Adaptador en ángulo DisplayPort 90° hacia abajo negro (77130)

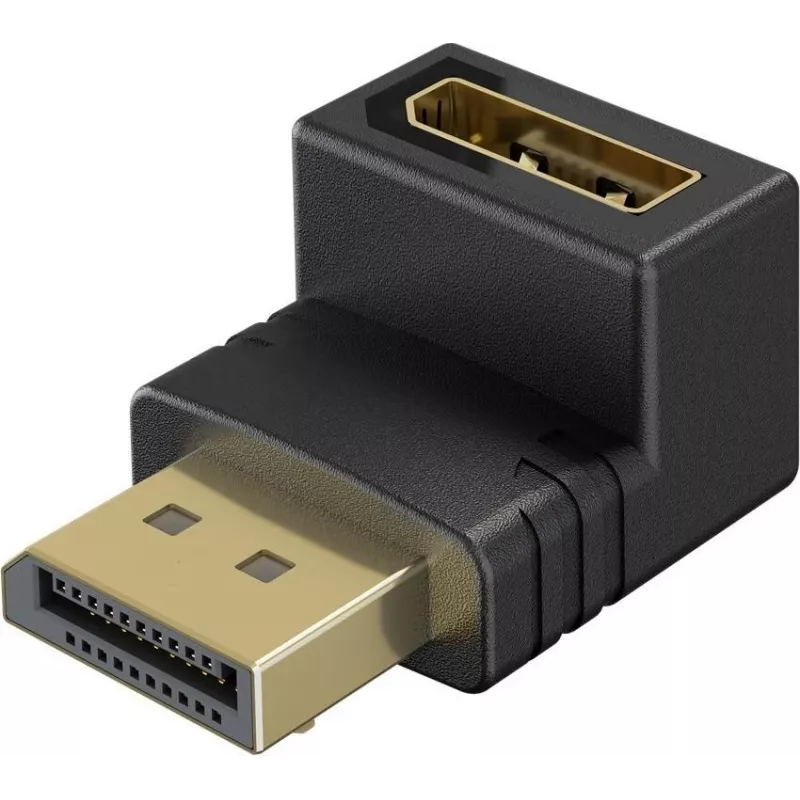

DisplayPort angled adapter with 90° downward orientation, engineered to solve tight connection spaces behind monitors, wall-mounted displays, and rack setups. Its gold-plated contacts and DisplayPort 1.2 compliance deliver stable 4K@60Hz video and audio without signal loss.

Advantages

The 90° downward angle routes the cable vertically, reducing strain on the port and allowing furniture to sit flush against the wall. Gold-plated connectors resist corrosion and ensure consistent contact, while the compact PVC housing withstands daily plug cycles.

Suitable for

• Connecting DisplayPort cables to monitors with recessed ports
• Wall-mounted TVs and digital signage where space is limited
• Extending an existing DisplayPort cable without signal degradation
• Professional AV racks and workstation cable management

Key specifications

• Connector 1: DisplayPort male (20-pin)
• Connector 2: DisplayPort female (20-pin)
• Orientation: 90° angled downward
• DisplayPort version: 1.2
• Maximum resolution: 4K (3840 x 2160) @ 60 Hz
• Data transfer rate: up to 21.6 Gbit/s
• HDCP and DPCP support
• Audio transmission: yes
• Connector plating: gold
• Housing material: PVC
• Colour: black

Recommendations

For best results, pair with certified DisplayPort 1.2 or higher cables. Avoid bending the adapter at extreme angles beyond its fixed 90° design to preserve connector integrity.
