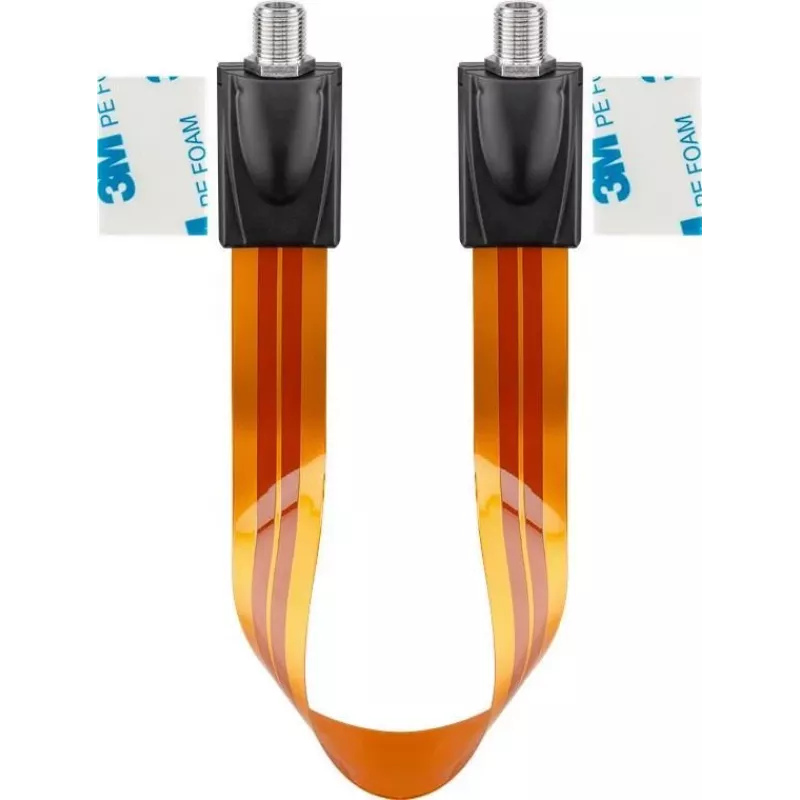

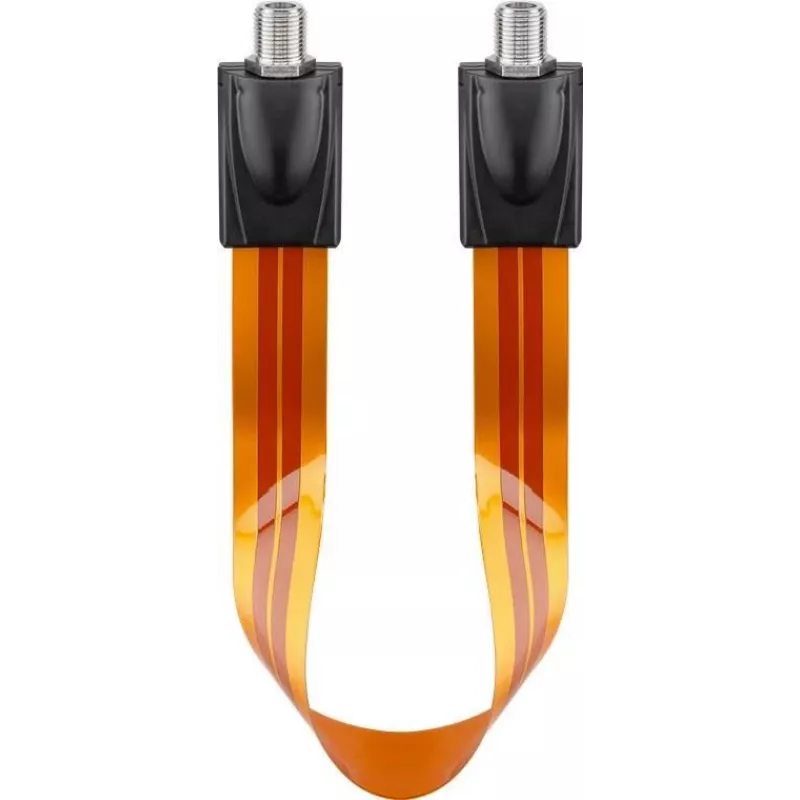

Wentronic Goobay cable de paso para ventana SAT, ultrafino 0,3 mm, marrón-negro, 0,3 m, conector hembra F a conector hembra F 67244

SAT window feed-through cable with ultra-flat 0.3 mm profile for routing satellite or antenna signals through closed windows and doors without drilling. The brown-black flat cable maintains a 75 Ohm impedance and supports frequencies from 5 to 2400 MHz, making it suitable for DVB-S, DVB-S2, DVB-T, DVB-C, and radio. Self-adhesive strips are included for secure installation.

Advantages

Ultra-flat design allows windows and doors to close normally while preserving signal quality. Nickel-plated F-female connectors on both ends provide reliable connections. Copper conductor and shielding ensure minimal signal loss, with attenuation below 3 dB up to 2400 MHz.

Suitable for

• Connecting satellite receivers to wall outlets through window frames
• Temporary installations in rental properties or caravans
• Routing antenna cables without permanent modifications

Key specifications

• Cable length: 0.3 m
• Cable thickness: 0.3 mm
• Connectors: F-female to F-female
• Impedance: 75 Ohm
• Frequency range: 5 - 2400 MHz
• Attenuation: < 3 dB at 2400 MHz
• Colour: brown-black

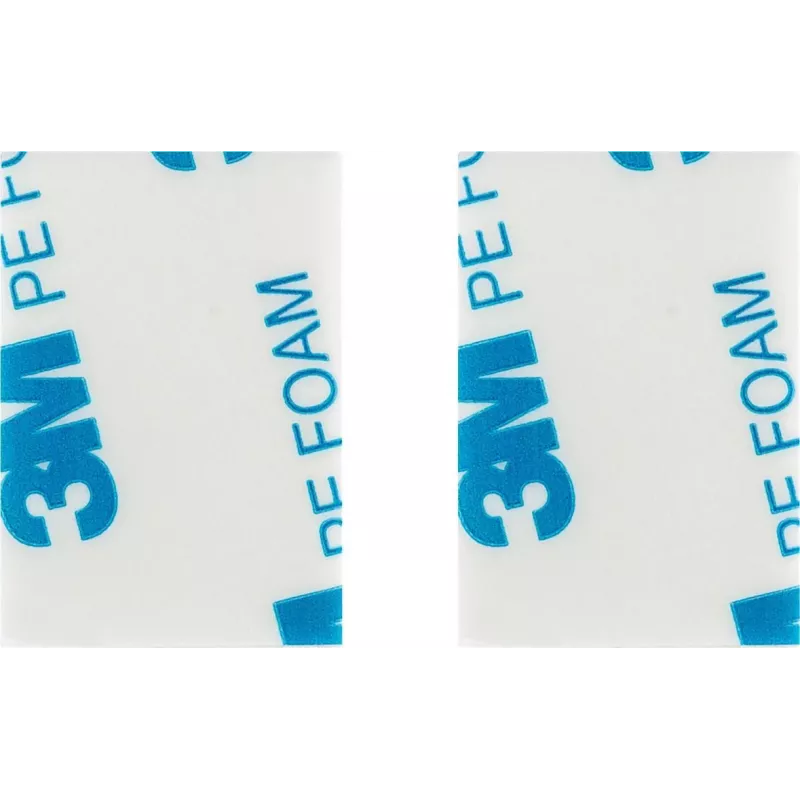

• Self-adhesive strips included

Recommendations

Ideal for installations where drilling is not possible or desired, providing a clean and reversible solution for satellite signal routing.
