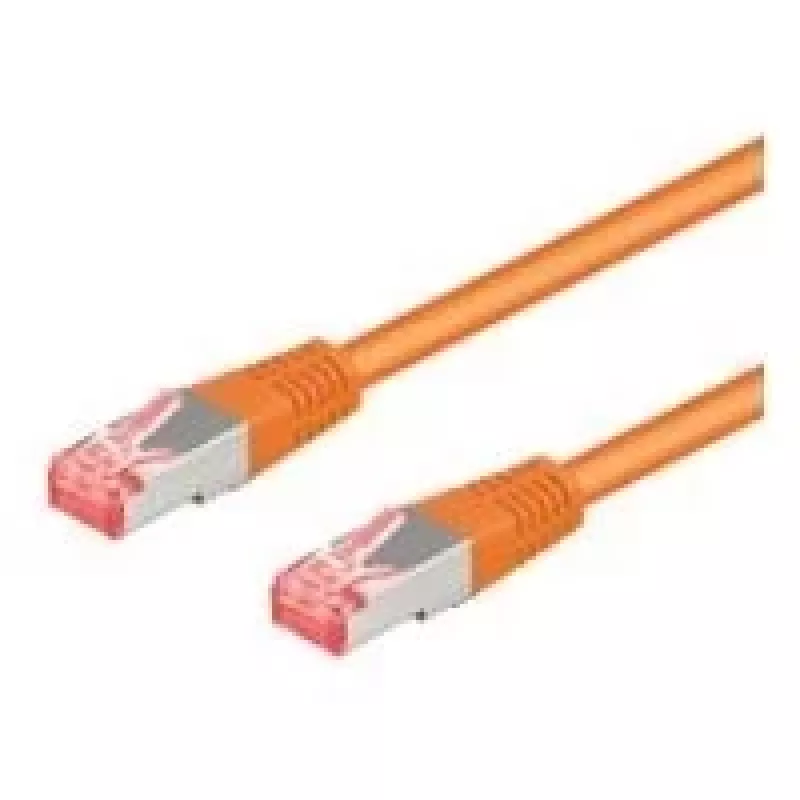

Wentronic Goobay cable de red CAT 6, S/FTP (PiMF), naranja, 25 m, LSZH libre de halógenos, cobre (95649)

This CAT 6 patch cable stands out with its S/FTP (PiMF) shielding, which pairs an overall braided screen with foil around each twisted pair to block alien crosstalk and EMI in dense installations. The 25-metre length in high-visibility orange is ideal for structured cabling in data centres, offices, or industrial environments where halogen-free safety and reliable Gigabit Ethernet are required.

Highlights

• S/FTP (PiMF) shielding: braided screen plus per-pair foil for superior noise immunity
• LSZH (Low Smoke Zero Halogen) jacket: low smoke and halogen-free for safer indoor use
• Pure copper conductors (OFC) with gold-plated RJ45 connectors for consistent signal integrity
• Supports Gigabit Ethernet up to 1000 Mbps and bandwidth up to 250 MHz
• 25 m length in orange for easy identification and routing

In daily use

Terminated with gold-plated RJ45 male connectors on both ends and wired to TIA/EIA-568B, this cable delivers stable 1 Gbps links over its full 25-metre run. The stranded copper construction keeps the cable flexible for routing around corners and through cable management, while the LSZH jacket reduces toxic fumes and smoke in the event of fire, making it suitable for public buildings and enclosed spaces.

Full specifications

• Cable Type: Patch Cable
• Cable Category: CAT 6
• Shielding Type: S/FTP (PiMF)
• Conductor Material: Copper (OFC)
• Conductor Gauge: 26 AWG
• Cable Length: 25 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Colour: Orange
• Connector Type (End 1): RJ45 Male
• Connector Type (End 2): RJ45 Male
• Connector Plating: Gold-plated (50µ)
• Data Transfer Rate: Up to 1 Gigabit Ethernet (1000 Mbps)
• Bandwidth: Up to 250 MHz
• Wiring Standard: TIA/EIA-568B
• Halogen-Free: Yes
• Flame Retardant: Yes
• Cable Construction: Stranded
• Number of Pairs: 4
• Outer Diameter: Approx. 6.2 mm
• Operating Temperature: -20 °C to 60 °C

Final note

For installations that demand high shielding performance and low smoke emission, this Wentronic Goobay cable delivers both in a durable, easy-to-identify orange jacket.
