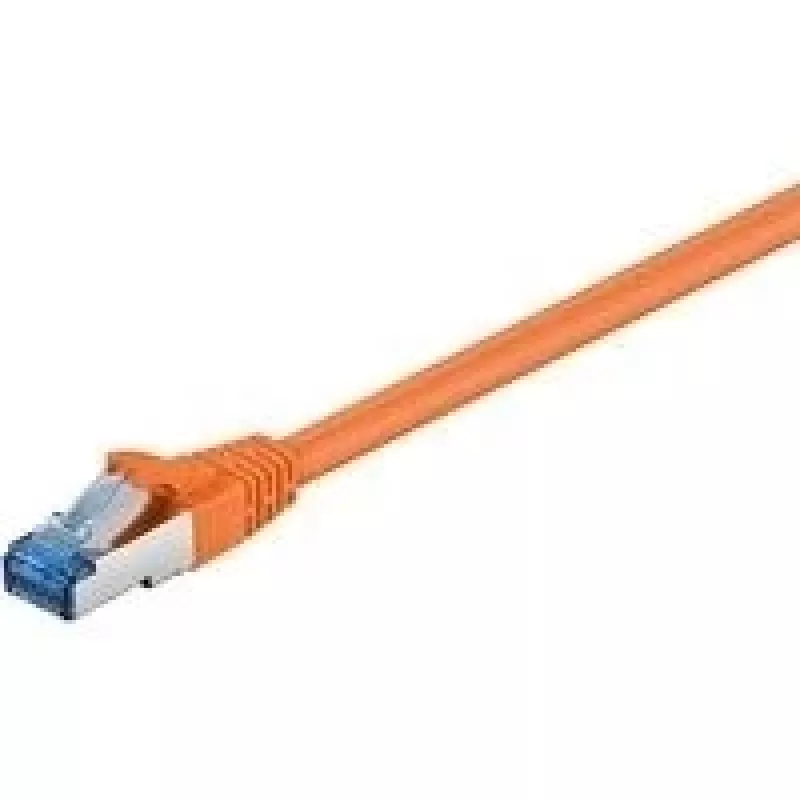

Wentronic Goobay Cable de red CAT 6a S/FTP, RJ45, 5 m, naranja, LSZH, cobre 93818

This CAT 6a patch cable stands out with S/FTP (PiMF) shielding: each twisted pair is individually wrapped in metal foil, and an overall braided screen surrounds all pairs. This construction suppresses alien crosstalk and electromagnetic interference, making it suitable for 10 Gigabit Ethernet links where lesser cables fail.

Highlights

• CAT 6a performance with 500 MHz bandwidth
• S/FTP (PiMF) shielding for maximum noise immunity
• Gold-plated RJ45 connectors (50µ) for reliable contacts
• Halogen-free LSZH jacket for low smoke and toxicity
• Stranded copper conductors (AWG 26/7) for flexibility

In daily use

The orange LSZH jacket makes the cable easy to identify in dense installations, while the snagless molded boots protect the locking tabs during routing. The stranded copper conductors allow repeated bending without breakage, and the 5 m length covers most patch panel-to-device connections.

Full specifications

• Category: CAT 6a
• Shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold (50µ)
• Conductor material: Copper (Cu)
• Conductor construction: Stranded (7-wire)
• Conductor gauge: AWG 26/7
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Halogen-free: Yes
• Colour: Orange
• Length: 5 m
• Max bandwidth: 500 MHz
• Max data transfer rate: 10 Gigabit Ethernet (10GBASE-T)
• Wiring standard: TIA/EIA 568B
• Boot type: Snagless, molded
• Operating temperature: -20°C to +60°C
• Impedance: 100 Ohm

Final note

The Wentronic Goobay CAT 6a cable combines high-frequency performance with halogen-free safety, making it a dependable choice for modern network infrastructures.
