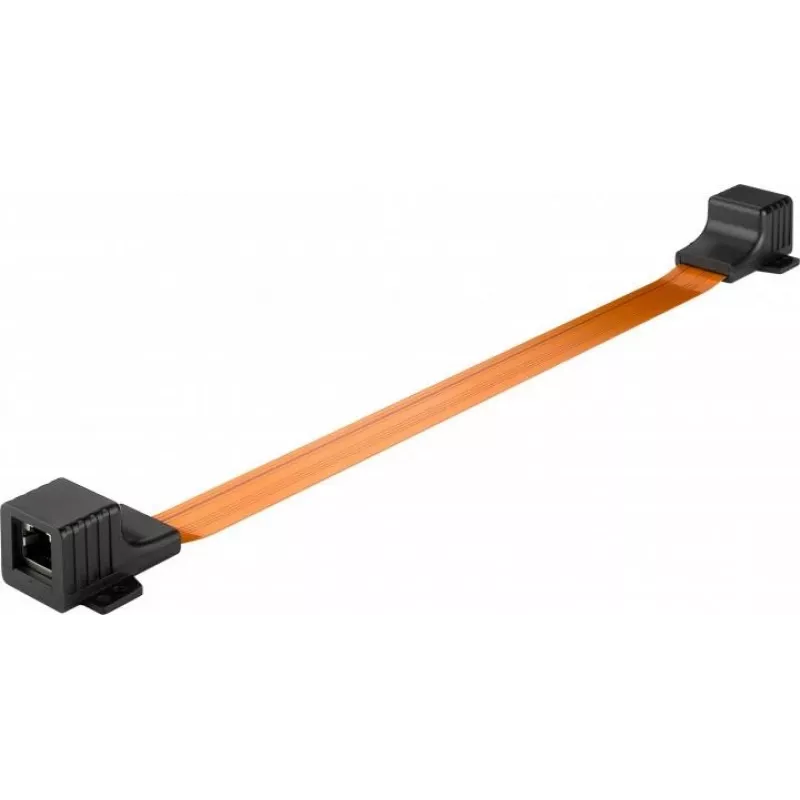

WENTRONIC Goobay cable pasamuros RJ45 ultra fino 0,25 m, plano, Gigabit Ethernet, transparente/blanco 71411

Routing a network cable through a window or door frame usually means drilling, visible gaps, or compromised insulation. This Goobay ultra-slim flat RJ45 pass-through cable slips between the frame and sash without tools, keeping the window fully closable while maintaining a clean Gigabit link. At just 0.25 m long and roughly 0.3 mm thick, it disappears into the frame and works with standard 10/100/1000Base-T networks.

Highlights

• Ultra-slim flat design (approx. 0.3 mm thick, 45 mm wide) fits between window frame and sash
• Tool-free installation — no drilling or permanent modification
• Gigabit Ethernet up to 1000 Mbps over 8-pin straight-through wiring
• Unshielded (UTP) construction with copper conductors and PVC jacket
• Transparent/white finish blends with most window profiles
• Indoor/outdoor rated for temperatures from -10 °C to +60 °C

In daily use

Whether you need a temporary connection for a balcony access point, a seasonal IP camera, or a permanent link into a conservatory, this pass-through cable keeps the window sealed and the network stable. The flat ribbon profile flexes with the frame, and the RJ45 plugs on both ends connect directly to standard patch cables or devices.

Full specifications

• Product type: Window pass-through cable
• Connector A: RJ45 male
• Connector B: RJ45 male
• Cable length: 0.25 m
• Cable design: Ultra-slim flat cable
• Cable thickness: approx. 0.3 mm
• Cable width: approx. 45 mm
• Max. data transfer rate: 1000 Mbps (Gigabit Ethernet)
• Network standard: 10/100/1000Base-T
• Conductor configuration: 8-pin
• Pin assignment: 1:1 (straight-through)
• Shielding: Unshielded (UTP)
• Installation: Tool-free
• Colour: Transparent / White
• Housing material (connectors): PVC
• Cable material: Copper conductors, PVC jacket
• Application: Indoor/Outdoor (for routing through frames)
• Operating temperature: -10 °C to +60 °C

Final note

For installers and DIY users who refuse to drill through frames, this ultra-slim pass-through cable delivers a reversible, high-speed network path without compromising window closure or insulation.
